Slocable Pure Copper Tinned ConnectorCustomized Silver Plated 10mm2 Solar Plug Socket
- shenzhen
- T/T Credit Card
You May Like
-
1500V IP68 Waterproof Solar Cell Connector
-
IP68 PPO T Branch Connector Solar Accessories
-
1000V 1500V PPO Insulation Hight Waterproof IP68 Solar Connector With CN40
-
IP68 Waterproof Compatible Solar Panel Coupler Plug Solar
-
1000V 1500V High Quality Waterproof 2 Pin DC Solar PV Module Connector
-
1000V TUV Waterproof Cable Connector Power Cable Plug Fusible CN40 for Solar Area
Product Details
| Brand Name | Slocable | Place of Origin | Guangdong, China | |
| Model Number | CN40-CM Solar Connector | Type | MCX | |
Product Description

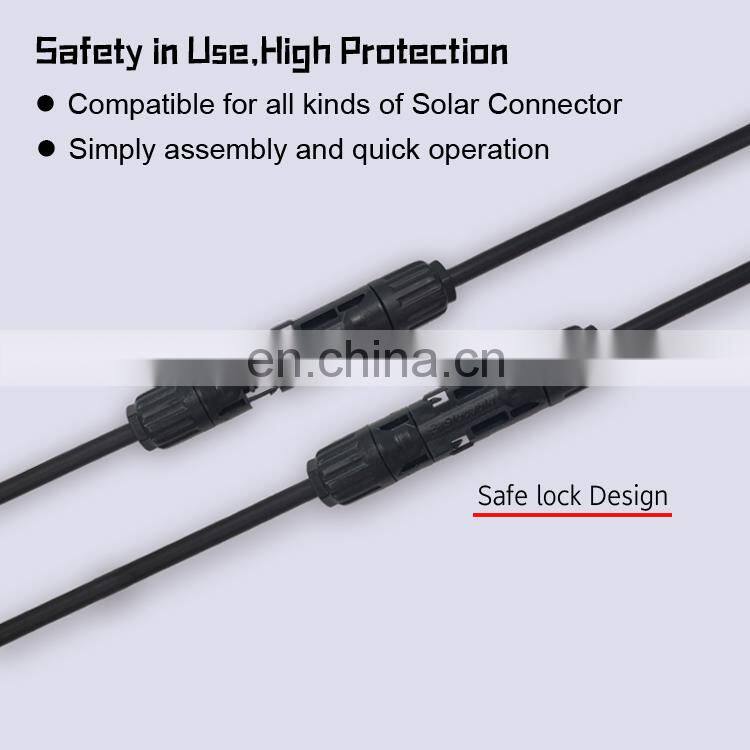

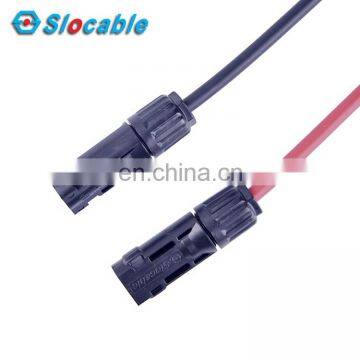

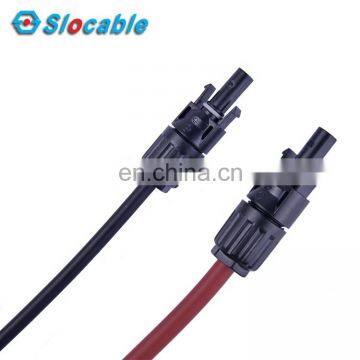

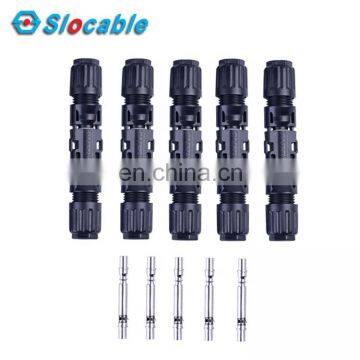

Slocable Pure Copper Tinned ConnectorCustomized Silver Plated 10mm2 Solar Plug Socket
Description:
·Simple on-site processing
·Mating safety provided by keyed housings
·Mutiple plugging and unplugging cycles
·Accomodates PV cable with deferent insulation diamaters
·High Voltage and Current carrying capacity
·TUV and CE approved
·Competitive price
Technicale Data:

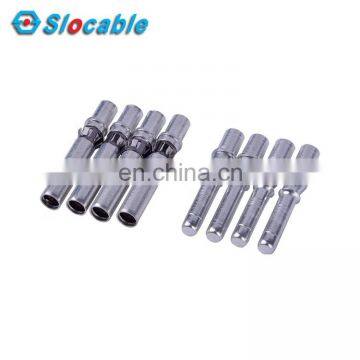

| Insulation Material: | PPO | Contact material: | Copper,Tin plated |
Rated current: | 30A(2.5mm2), 50A(4mm2,6mm2) | Insertion force: | Max. 50N |
| Rated Voltage: | 1000V/1500V DC | Withdrawal force: | Min. 50N |
| Test voltage: | 8kV(50Hz,1min) | Ambient temperature range: | -40℃~+90℃ |
| Contact resistance: | <5mΩ | Flame class: | UL94-V0 |
| Waterproof protection: | IP68 | Connecting system: | Crimping connection |
| Overvoltage degree: | CATIII/2 | Suitable cable cross section: | 2.5/4/6/10mm2, 14/12/10/8AWG |
Our Projects :
Q1: What is your company's Main Products ? You are the Manufacturer or the trader ?
Solar Cables, Solar Connectors, PV Fuse Holder,Circuit breakers and other solar relative products.We're the Manufacturer with more than 9years experience.
Q2: How can I get the Quotation of the products ?
1)All raw material we selected the high quality one.
2)Professional & Skilful workers care every details in handling the producing.
3)Quality Control Department specially responsible for quality checking in each process.
Q4: Do you provide OEM Project Service?
OEM & ODM order is warmly welcome and we have fully successful experience in OEM projects.
What's more, our R&D team will give you the professional suggestions.
Q5: How Could I get the Sample?
We are honored to offer you samples,Samples is free provided,but need pay the courier freight.
If you have a courier account, you can send your courier to collect samples.
Q6: How long is the delivery time?
1) For Sample: 1-3 Days ;
2) For small Orders: 3-10 Days;
3) For mass Orders: 10-18 Days.
If any inquiry, feel free to let me know !
