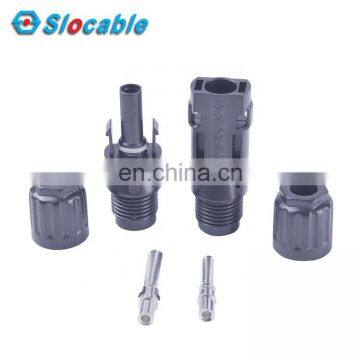

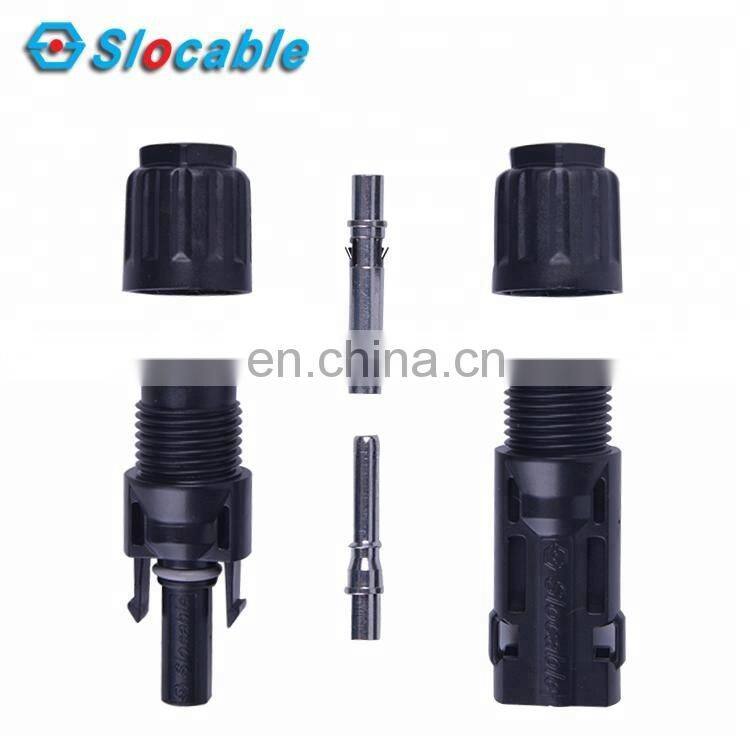

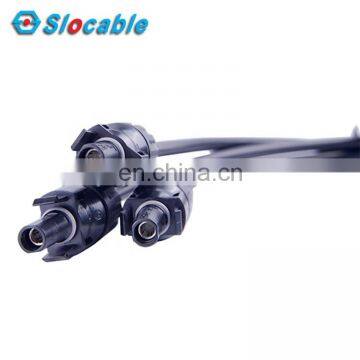

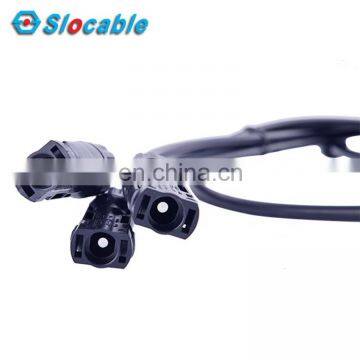

Slocable China 10mm2 8AWG PV Connector 50A Compatible CN40 Solar Connectors

Order NO.

(Part P/N)

Cable Spec.

Connector

Terminal

Conductor Size

Cable OD

CN40-CMMM-14

CN40-CMMM-H

CN40-CM-T14 (2.5mm2)

AWG 14(2.5mm2)

OD4.5-8.5mm

CN40-CMMM-12

CN40-CM-T12 (4.0mm2)

AWG 12(4.0mm2)

CN40-CMMM-10

CN40-CM-T10 (6.0mm2)

AWG 10(6.0mm2)

CN40-CMMM-

8

CN40-CM-T8 (10.0mm2)

AWG 8

(10.0mm2)

Order NO.

(Part P/N)

Cable Spec.

Connector

Terminal

Conductor Size

Cable OD

CN40-CFPM-14

CN40-CFPM-H

CN40-CF-T14(2.5mm2)

AWG 14(2.5mm2)

OD4.5-8.5mm

CN40-CFPM-12

CN40-CF-T12(4.0mm2)

AWG 12(4.0mm2)

CN40-CFPM-10

CN40-CF-T10(6.0mm2)

AWG 10(6.0mm2)

CN40-CFPM-

8

CN40-CF-T8(10.0mm2)

AWG 8(10.0mm2)

OD 4.5-8.5mm

(2.5-10.0mm²)

Insertion Force /

withdrawal Force
