Product Details
| Brand Name | GOGO | Place of Origin | Zhejiang, China | |
| Model Number | MI-05 | Material | Brass | |
| Structure | Control | Standard or Nonstandard | Standard | |
| Pressure | Medium Pressure | Power | Solenoid | |
| Port Size | 1/8" 1/4" 3/8" 1/2" | |||
| Temperature of Media | Medium Temperature |
Product Description

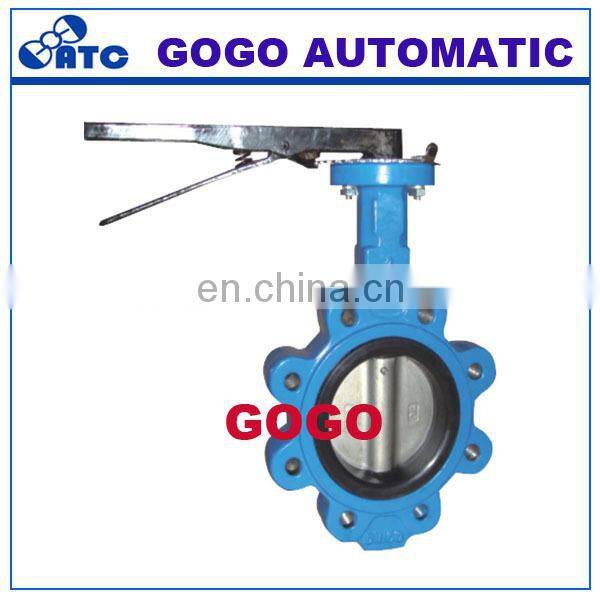

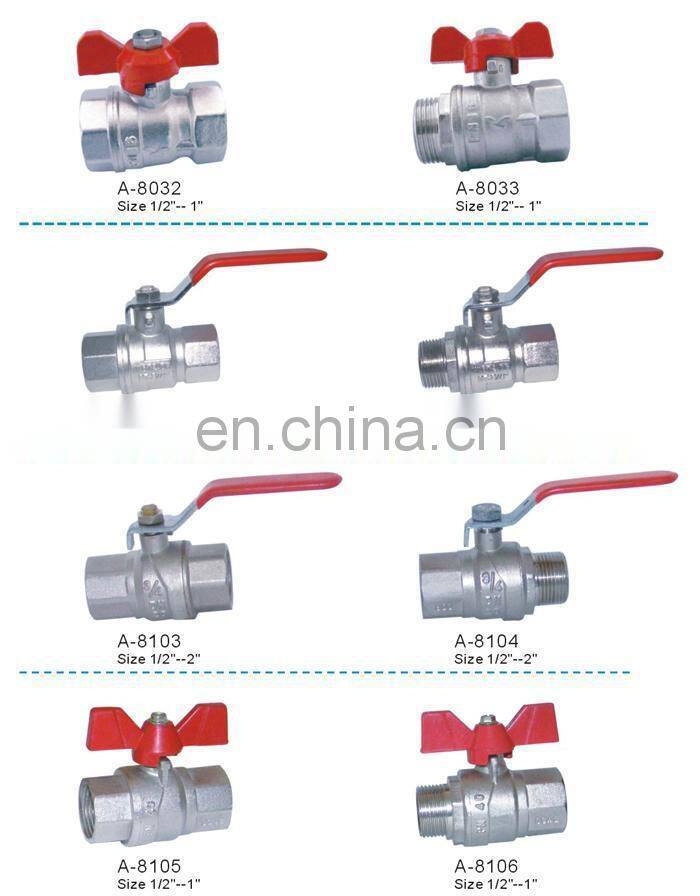

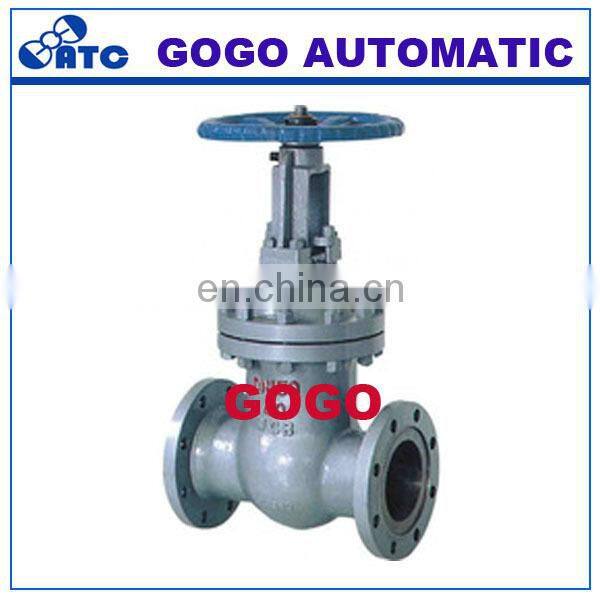

gate valve butterfly valve presure ball valve
1. Brass ;
2. Stainless steel .
Specification
| Pattern: | Two-port two-position | |||
| Principium: | direct acting type | |||
| Control mode: | normally close | |||
| Valve body: | brass | |||
| Diaphragm material: | NBR: ≤80°C ,FKM≤150°C | |||
| Working pressure: | 0~10bar | |||
| Max pressure: | 10bar | |||
| Voltage: | AC220V AC110V DC12V DC24V | |||
| Medium: | Air ,water ,Liquid ,oil ect. | |||
| Application: | Gas protection welder, various types of burners, test equipment small-flow air water control system | |||

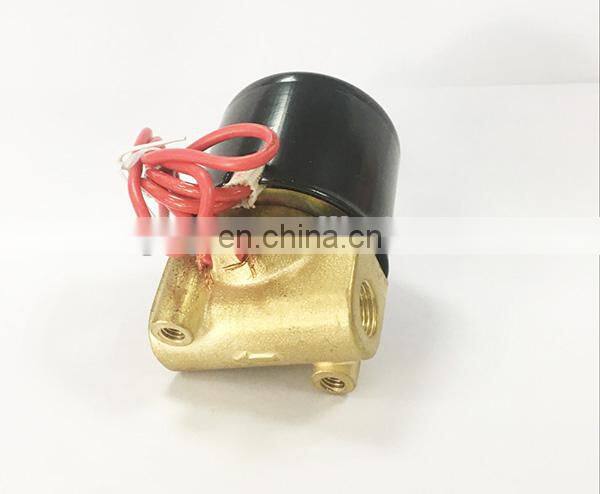

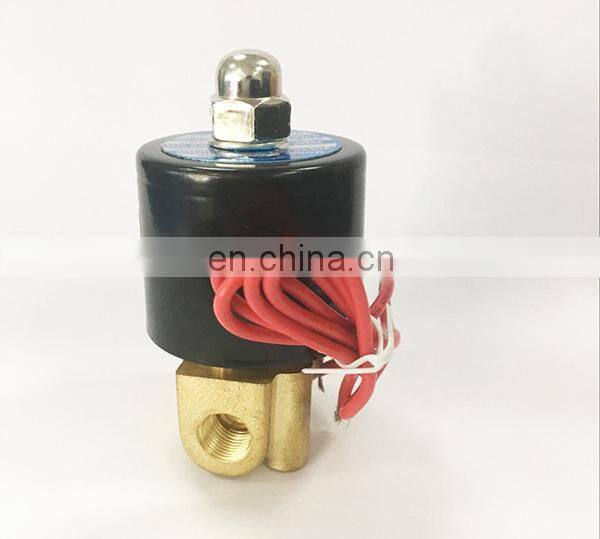

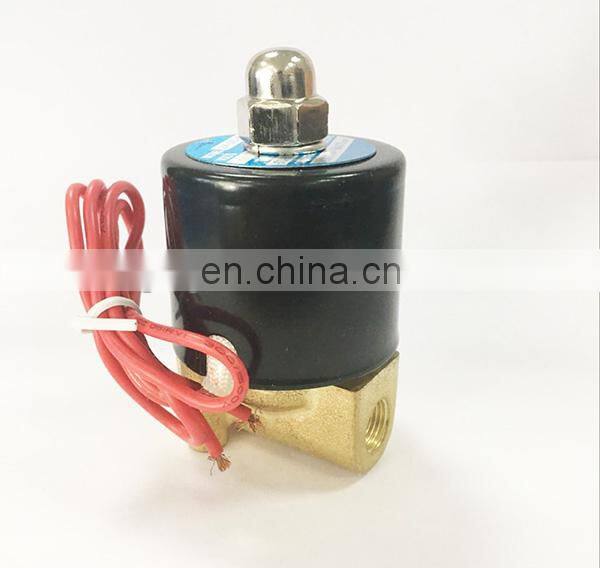

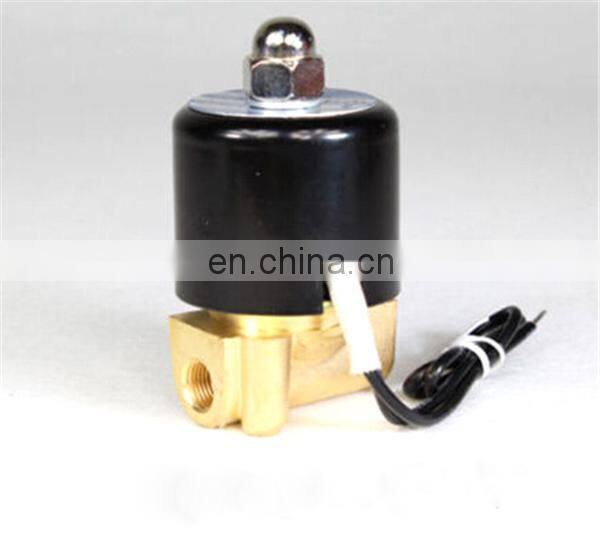

LPG, natural, butan, propane gas solenoid valve Voltage:
DC - 12V,24V AC - 24V,120V, 240V@60HZ 110V, 220V@50HZ Tolerance: +/- 10%
Coils :S51B, 40VA(AC), 30W(DC), IP65 100%ED
SD01B, 35VA(AC),30W(DC),IP65,100%ED
SD02B,flying lead 35VA(AC),30W(DC),IP65,100%ED
Dimensions
(mm)
| Orifice(mm) | A | B | C |
| DN3 | 44 | 25 | 80 |
| DN4 | 44 | 25 | 80 |
| DN5 | 50 | 25 | 80 |
| DN8 | 50 | 25 | 80 |
| Materials of construction | |||
| Parts in contact with the medium | |||
| Valve of body | Brass | SS304 | |
| Seals | NBR ,EPDM ,FKM | ||
| Magnetic isolation pipe | SS304 | ||
| Core | Stainless steel alloy | ||
| Spring | SS304 | ||
| The shading | Copper | ||
small brass and plastic non return valves solenoid gas valve
- Inner packing: opp bag, then carton box for each product
- Outer packing: export standard carton, Foam outside protecting the goods against damage
- Usually we ship your order by sea or by air...
- We do our best to ship your order within 1 week after receiving your payment
- We'll tell you the tracking number once your order has been sent
- We accept T/T Bank transfer, L/C, Western Union, Moneygram, Paypal
Founded in July,2014, Ningbo Fenghua GO GO Automatic company is a high-tech enterprise with all vitality, potential and comprehensive strength. The company is located in the Zhejiang Ningbo Science &Technology zone, a unique place with beautiful scenery and gifts of nature.
Main products of our company : automatic parts, pneumatic solenoid valve, air water solenoid valve, hydraulic valves, gear piston or vane pumps, fittings connectors, temperature pressure transmitter, temperature controller, PLC, DCS parts, hardware stainless steel or brass or plastic parts , etc.
Since its foundation, the company keeps living up to the belief of :"honest selling, best quality, people-orientation and benefits to customers. " We are doing everything to offer our customers with best services and best products. We promise that we'll be responsible all the way to the end once our services begin.
Q: What is your main market?
A: Our main market is north America, especially USA.
Q: Are you products standard?
A: Our model is standard, if you have specific demand, pls tell us.
Q: Do you have interest to do our own design items?
A: Absolutely! We have big interest.
Q: How to make the order?
A: You can send us email or inquiry at alibaba directly. for samples order, you can go to our aliexpress shop and place the order.
