Home > Products > Water solenoid valve GOGO > Solenoid Gate Valve Low Pressure Air Solenoid Valve Gate Valve With Bypass

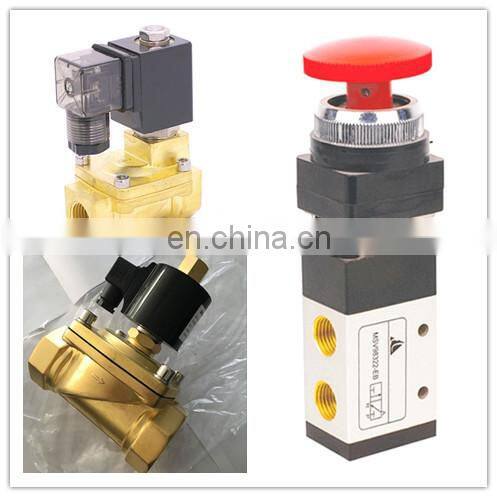

Solenoid Gate Valve Low Pressure Air Solenoid Valve Gate Valve With Bypass
- Ningbo
- T/T Credit Card
You May Like
-
Deadman Handle Valve Pvc Air Valve Water Pipe Gate Valve
-
Low Pressure Non-return Valve Fuel Tanker Valve Ferrule Valve
-
Gate Valve Assembly Underground Gate Valves Water Ball Valve Pvc
-
Low Pressure Relief Valve Acid Resistant Solenoid Valve Bronze Check Valve
-
Paintball Valve Parker Needle Valve Valve Pvc
-
Sufa Valve Audco Ball Valves Catalogue Long Stem Ball Valve
Product Details
| Brand Name | GOGO | Place of Origin | Zhejiang, China | |
| Model Number | MI-05 | Material | Brass | |
| Structure | Control | Standard or Nonstandard | Standard | |
| Pressure | Medium Pressure | Power | Solenoid | |
| Port Size | 1/8" 1/4" 3/8" 1/2" | |||
| Temperature of Media | Medium Temperature |
Product Description
solenoid gate valve low pressure air solenoid valve gate valve with bypass
1. Brass ;
2. Stainless steel .
Specification
| Pattern: | Two-port two-position | |||
| Principium: | direct acting type | |||
| Control mode: | normally close | |||
| Valve body: | brass | |||
| Diaphragm material: | NBR: ≤80°C ,FKM≤150°C | |||
| Working pressure: | 0~10bar | |||
| Max pressure: | 10bar | |||
| Voltage: | AC220V AC110V DC12V DC24V | |||
| Medium: | Air ,water ,Liquid ,oil ect. | |||
| Application: | Gas protection welder, various types of burners, test equipment small-flow air water control system | |||
Item | Parameter |
Ration 5L | Preact 0.5L |
Displayed Value when main Valve Closed | ≤4.85L |
Voltage Input | AC230V 50HZ, |
Voltage deviation | -10%~+15% |
Relative Humidity | ≤95% |
Insulating Strength | ≥20MΩ |
Lead Length | 1.5m(standard) |
Power | 2x5.5W |
Coil Class | H |
Life cycle | Under normal working condition, the continuous cycle time is above 1000,000 |
Dimensions
(mm)
| Orifice(mm) | A | B | C |
| DN3 | 44 | 25 | 80 |
| DN4 | 44 | 25 | 80 |
| DN5 | 50 | 25 | 80 |
| DN8 | 50 | 25 | 80 |
small brass and plastic non return valves solenoid gas valve
LPG, natural, butan, propane gas solenoid valve Material:
Body - Brass or Stainless steel
Seal -NBR, EPDM, PTFE or VITON
Armature Tube - Stainless Steel 304
Plunger - Stainless Steel 430F
Stop -SS430F
Springs - SS 304
Shading Rings - Stainless Steel 304
LPG, natural, butan, propane gas solenoid valve Characteristic:
1.Direct lifting diaphragm construction;
2.Open from zero bar for low pressure system use;
3.High frequency of DIN plug coil
4.Medium:Air, City Gas, Water, Oil, Petroleum, etc.
5.Pressure:2W21: 0.00MPa ~ 1.0MPa.
6.Port Thread:BSPP ,BSPT ,NPT ,Flange, UNF, M8X1
- We have more than 12 years experience in solenoid valves
- Excellent quality control is one of our main principles
- Various style for each products and completely series pneumatic products for you to choose from
- Sample order & small quantity order is ok
- We provide OEM service, accept customer label, develop the product with your drawings or samples
- Any question, will be replyed within 24 hours
Founded in July,2014, Ningbo Fenghua GO GO Automatic company is a high-tech enterprise with all vitality, potential and comprehensive strength. The company is located in the Zhejiang Ningbo Science &Technology zone, a unique place with beautiful scenery and gifts of nature.
Main products of our company : automatic parts, pneumatic solenoid valve, air water solenoid valve, hydraulic valves, gear piston or vane pumps, fittings connectors, temperature pressure transmitter, temperature controller, PLC, DCS parts, hardware stainless steel or brass or plastic parts , etc.
Since its foundation, the company keeps living up to the belief of :"honest selling, best quality, people-orientation and benefits to customers. " We are doing everything to offer our customers with best services and best products. We promise that we'll be responsible all the way to the end once our services begin.
Q: What is your main market?
A: Our main market is north America, especially USA.
Q: Are you products standard?
A: Our model is standard, if you have specific demand, pls tell us.
Q: Do you have interest to do our own design items?
A: Absolutely! We have big interest.
Q: How to make the order?
A: You can send us email or inquiry at alibaba directly. for samples order, you can go to our aliexpress shop and place the order.
solenoid gas valve
Skype:atcgogo
