Weft Feeder & Parts
You May Like
Product Details
| Place of Origin | China |
Product Description
Weft feeder is used to provide weft yarns to a weaving machine. With an electro-magnetic solenoid hook pin attached to it, the weft feeder will stop providing yarns when the preset amount of yarns is inserted.
Owing to high experience in this field, we are offering comprehensive range of weft feeders to our clients. Our range of weft accumulator caters diverse requirements of industrial applications, suitable for rapier looms, water jet looms and air jet looms.
Our weft feeder price is competitive and the products have enjoyed wide popularity in both domestic and overseas market.

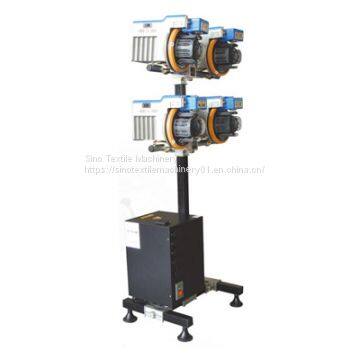

TS-712-4A
Functions and features
Well-designed technology of 4 color pick-at-will weft selecting system, durable, dependable, excellent and high efficient performance.
Upgrade the 1 color insertion loom to 4 colors pick at will looms simply. With this system, the weaving range of the loom is enlarged, the high added value product could be woven.
Blast motor for mechanical measuring length is no longer used, which saves lots of electrical power and reduces maintenance costs due to easy-worn parts replacement.
The weft length could be precisely adjusted by changing the diameter of weft storage drum (adjustable consecutively) and changing the release turns, thus the waste of weft can be avoided.
TS-712-4W
Functions and features
This model has all the features of TS-712-4A.
The incremental encoder sensor secures correct timing for the weft insertion and all insert parameters can be adjusted by a hand terminal.
Pattern can be controlled by dobby, which fundamentally solves the problem of pattern synchronization.

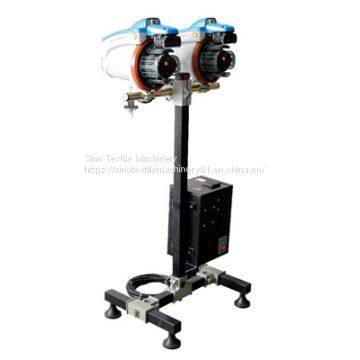

TS-712-2W
Functions and features
This model has all the features of TS-712-4A.
The incremental encoder sensor secures correct timing for the weft insertion and all insert parameters can be adjusted by a hand terminal.
Pattern can be controlled by dobby, which fundamentally solves the problem of pattern synchronization.
It is fit for water jet loom with 1 color and 1 pump or 2 colors and 2 pumps.

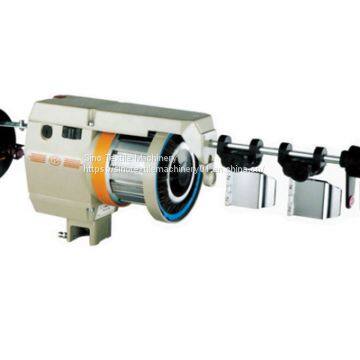

TS-612G
TS612 series weft feeder adopts technologies of PC control, automatic speed adjustment, positive yarn feeding. The have small and exquisite structure and reliable performance. They also have features such as uniform weft tension, wide application range of counts. They are suitable for all kinds of rapier looms and projectile looms.
Model | TS-612A | TS-612B | TS-612F | TS-612C |
Max feeding rate(m/min) | 1400 | 1000 | 1000 | 800 |
Suitable yarn(tex) | 1 ~ 330 | 1 ~ 330 | 1 ~ 330 | 1 ~ 330 |
Input voltage(V) | 180 | 130 | 3phase90 | 3phase42 |
control voltage(V) | +8 | +8 | / | / |
Noise(db) | 68 | 68 | 68 | 68 |
Yarn storage | S/Z continuously adjustable | S/Z continuously adjustable | S/Z continuously adjustable | S/Z continuously adjustable |
Speed adjustment | automatic frequency conversion | automatic frequency conversion | automatic frequency conversion | automatic frequency conversion |
Broken weft stop function | Yes | Yes | Optional | Optional |
Characteristics
Automatic speed control
Yarn-breakage sensor is stable and reliable
The yarn storage drum is fully closed
Continuously adjustable yarn spreader
Simple S/Z direction conversion technology
Lower energy consumption, high efficiency
The design of external is compact, reduce the space
Stable and steady tension control to ensure reliable running
Sino Textile Machinery is consisted by a group of manufacturers of textile machinery and spare parts. We specialized in textile weaving machinery, second hand textile machinery, weaving loom spare OE supply, and after sales spare parts. If you are looking for loom machine for sale, just contact us!
