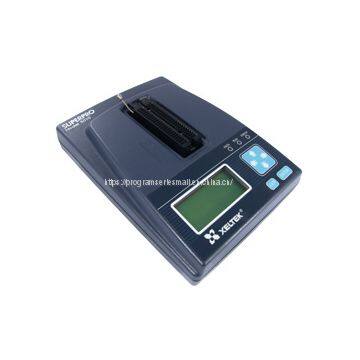

Xeltek SUPERPRO611S, SP611S Ultra-high-speed Economy Universal Programmer

Features:

Until now,Support 251 IC manufacturer, 37117 pcs devices and keeps growing.

Support devices with Vcc from 1.2V to 5V.

Extremely fast speed high than model SUPERPRO/501S.

Built with 48 universal pin-drivers.

PC hosted mode and stand-alone mode. Under PC hosted modes the programmer is controlled by a PC via USB2.0 (high speed) to program a chip. Under stand-alone mode the programmer is controlled via the keypad and the LCD display. A CF card is used to store the project files. User can operate multiple units to construct a concurrent multiprogramming system thank for the stand-alone mode.

Only IC manufacturer approved programming algorithms are used for high reliability. ±5% and ±10% Vcc verification enhances programming reliability.

Advanced and powerful functions.
Production mode start chip operation at the moment the chip is inserted in the socket properly.
Project function simplifies processes such as device selection, file loading, device configuration setting, program option, and batch file setting into one touch step.
Password
can be set for project files and production volume control
Batch command combines device operations like program, verify, security into a single command at any sequence.
Serial numbers generators are available as standard or customer-specific functions.
Log file is useful for quality tracking.

Over-current and over-voltage protection for safety of the chip and programmer hardware.

WINDOWS XP/VISTA/Win7/Win10 compatibility

Device Updates:

XELTEK updates software and device algorithm regularly.

View the latestDevice List .

Download the current software version free of charge .

Updates are available by mail at a nominal charge.

XELTEK also adds devices upon customer's request at its option.

Warranty Support:

Programmer is warranted to be free of manufacturing or workmanship defects for one year from the date of purchase.

Online Technical Support is also available 24 hours or you may call us during our business hours through Friday 8:30am to 5:30pm (Beijing Time).

Hardware & Electrical Specifications:

Supported devices: EPROM, Paged EPROM, Parallel and Serial EEPROM, Flash, NVRAM, PLD, Firmware HUB,Microcontroller, MCU .

Packages supported: DIP, SDIP, PLCC, JLCC, SOIC, QFP, TQFP, PQFP, VQFP, TSOP, SOP, TSOPII, PSOP, TSSOP, SON, CSP, SCSP , ...

PC interface: USB2.0

Stand-alone Feature: Supported, Compact Flash Card

Electrical spec. of the AC adapter: AC input 90V to 250V, 50/60Hz, DC output 12V/2A; power:15W

Mechanical parameter: Main unit: Size: 205*148*50 mm Weight: -Kg.

Packing Box: Size 320*300*85 mm Weight: 1.8 Kg.

Accessories:

Main unit with a DIP48 adaptor, AC adaptor, USB2.0 cable, software CD (user manual), register card

Optional accessories: adaptor in varies packages, CF card for stand-alone operation.
