DediProg,eMMC-F8 UFS/eMMC Gang Programmer and Duplicator,Support UFS and eMMC IC

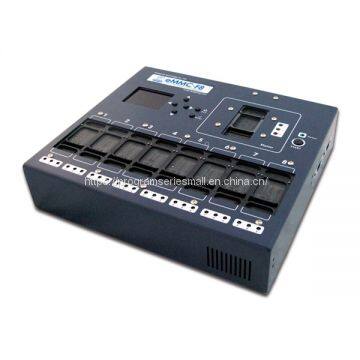

eMMC-F8 is a combination of programmer and duplicator, which is unique in the current market. It has nine socket sites; one is for programming the master IC and the other eights are for duplicating the slave ICs. The Master IC can be programmed with the files in the software (Dediware) while the slave IC can be duplicated with Master IC in stand-alone mode. With eMMC-F8, you will be able to program or duplicate on the same machine.

Data Transfer Speed is at 100MB/s max. The real read/write speed depends on various factors such as communication protocol, chip controller performance, and NAND technology, etc.

• Supports two Boot Area Partitions, RPMB Partition, General Purpose Area Partitions, User Data Area, and Enhanced Mode. (Not support RPMB duplicating)

• Each gang programmer has 9 socket sites, which includes one programming site and eight duplication sites; duplicate in concurrent mode.

• Engineering Mode



  For engineers and expert to access advanced features for development, repairing etc.

  eMMC IC Detail Setting



  Detail settings of extCSD/RPMB
  Standard Package



  Socket Adaptor Options (Please select the required one to work with eMMC-F8):

  eMMC-F8 requires socket adaptor to program IC, every socket adaptor corresponds to different IC kind, package type, and size, please choose the appropriate socket adaptor from the list below. If you have any questions, please contact Dediprog sales

• N-EMMC-050-FBGA153-115130-02O (For eMMC, Package Type: BGA153)

• N-EMMC-050-FBGA153-110100-01O (For eMMC, Package Type: BGA153)

• N-EMMC-100-FBGA100-140180-01O (For eMMC, Package Type: BGA100)

• eMMC-F8 x 1

• USB 3.0 Cable x 1

• Power Cable x 1

• CD-ROM x 1
