Original PIC MPLAB Snap PG164100 Debugger Adapter Board PG164100 -MPLAB(R) Snap In-CircuitDebugger

Our most affordable debugger has power to impress.

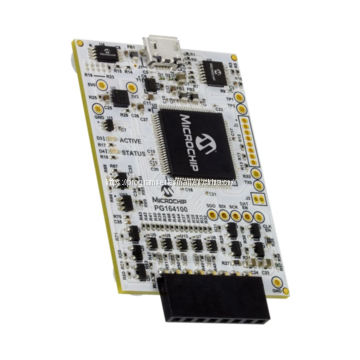

The MPLAB? Snap In-Circuit Debugger/Programmer allows affordable, fast and easy debugging and programming of most PIC?, dsPIC?, AVR and SAM flash MCUs, using the powerful graphical user interface of MPLAB X Integrated Development Environment (IDE) version 5.05 or later. The MPLAB Snap can be connected to a computer using a High-Speed USB 2.0 interface and can be connected to the target via an 8-pin Single In-Line (SIL) connector. The connector uses two device I/O pins and the reset line to implement in-circuit debugging and In-Circuit Serial Programming? (ICSP?). It has all the speed and features entry-level users need to quickly debug their prototype.

The MPLAB Snap programs fast, with a powerful 32-bit 300MHz SAME70 MCU for quicker debug iterations. Along with a wide target voltage, the MPLAB Snap supports advanced interfaces such as 4-wire JTAG and Serial Wire Debug with streaming data gateway, while being backward compatible for demo boards, headers and target systems using 2-wire JTAG and ICSP.

Note: The Snap is compatible with MPLAB X IDE version 5.05 and later.

Download MPLAB X IDE Now.

The MPLAB Snap In-Circuit Debugger/Programmer supports most, but not all, PIC, AVR and dsPIC DSCs at this time. The firmware is continually being upgraded to add support for new devices. To request priority device support or to report issues, email: Snap_Update@microchip.com

To check supported devices: Check the MPLAB X IDE Device Support List. If you have MPLAB X IDE installed, you can browse to the “docs” folder under your MPLAB X installation directory and open the file “Device Support.htm”. Alternatively, you can download it from this link: /mplabx-ide-release-notes

Files are available for creating an MPLAB Snap enclosure from Thingiverse here.

Matches silicon clocking speed

• Programs as fast as the device will allow

• Wide target voltage supports a variety of devices

• Powered by a high-speed USB 2.0, no external power required

• Supports advanced interfaces such as 4-wire JTAG and Serial Wire Debug with streaming data gateway

• Backward compatible for demo boards, headers and target systems using 2-wire JTAG and ICSP

• Add new device support and features by installing the latest version of MPLAB X IDE, which is available as a free download at /mplab/mplab-x-ide

•
