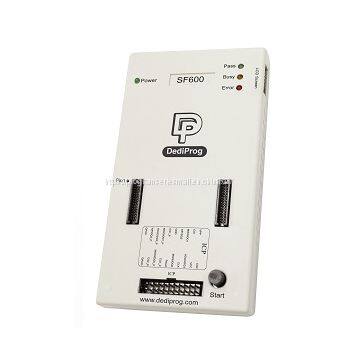

DediProg, SF600plus SPI Flash IC Programmer - In Circuit Program USB MODE/isp cable

Feature
SF600Plus is high speed "in System Programming" programmer to update the SPI Flash soldered on board (In Circuit Programming) or in the socket adaptor (Offline programming). The programmer is easily controlled by the computer DediProg Software through the USB bus offering a friendly interface and powerful features to users.

SF600Plus combines the advantages of SF100 with additional improvements: High-speed USB and higher SPI performances.

SF600Plus is an upgrade version of SF600. The main difference is that SF600Plus embeds an 8GB memory, which allows standalone programming.
Highlights
USB High speed and high SPI performance, support up to 2Gb SPI Flash
In-Circuit Programming: Program on board SPI Flash
Off-line Programming: Program SPI Flash in the socket
Start button feature: Able to Batch in the USB mode
Standalone mode: Support Start button programming and IO Port programming.
ISP Port supports 2 CS pins to program two Serial Flash memories
Signal conflict protections
Multi-Programmers Capability through USB
Support 1.8V low voltage IC
Support Windows 2003 and above
Support both 32 and 64 bit OS
High performance (25MHz, Single IO)

USB Mode Reference IC Density (Program + Verify)
Memory size W25X80VSSIG 8Mb 9s
W25Q16VSSIG 16Mb 11.6s
W25Q32VSSIG 32Mb 12.6s
W25Q64FVSSIG 64Mb 31s
W25Q128BVFIG 128Mb 61.7s
W25Q256FVFIG 256Mb 89.2s
S25FL512SAGMFI011 512Mb 147.4s
*Please note the programming and verify time will depend on different IC type; please refer to the IC specification before programming.
Hardware
SF600Plus is designed with ISP header, through an appropriate connector, users can connect the programmer and drive the SPI signals, supply the memory and control the controller or application status. Please refer to Table 1 for the SF600Plus 2x10 header pin out. DediProg also provides the SF600Plus ISP Cable which is used to connect the programmer to the 2X6 2.54mm ISP Pin Header on board, please refer to Table 2 for the SF600PlusISP Cable 2x6 p
