DediProg,ISP-Eval-01 Evaluation Kit SPI Flashr evaluation ALL SPI NOR Flash USB CABLE

• Silicon supplier (Controller, chipset, ASIC, FPGA..)

You can easily use our ISP Evaluation tool to check if your current controller, Chipset or ASIC is tolerant of the ISP method. You can also ensure that your next chip generation will be compatible with the ISP method. When validated, this ISP feature will offer a significant advantage to your products for the benefits of your customers during development, production, and after-sale service.

• Application supplier (R&D, designer, Software engineers..)

You can follow the spec to check if the controller you are using and if your application hardware is compatible with the ISP method. Your company and your customers will benefit from this high flexibility of code update and will ensure the shortest time to market.

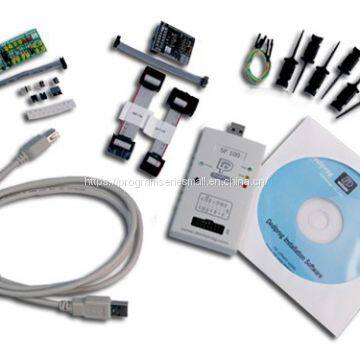

• SF100 programmer to update the serial Flash on board x 1

• ISP Evaluation board: To test and validate the ISP method x 1

• 1.27mm 2*4 cable: to connect the ISP evaluation board to the application x 1

• SMT 1.27mm connectors: to solder in place of your application serial Flash x 2

• Resistors: 100 Ohm for safe SPI isolation trials x 10

• Resistors: 47 Ohm for tuned SPI isolation trials x 10

• N MOSFET for SPI and Vcc isolation trials x 10

• Resistors: 0 Ohm for Vcc short cut x 2

• Diodes: for Vcc isolation trials x 2

• Cables with a test clip: to connect the application powers and reset to the ISP evaluation board x 3
