NTC Thermistor with 0.1C tolerance

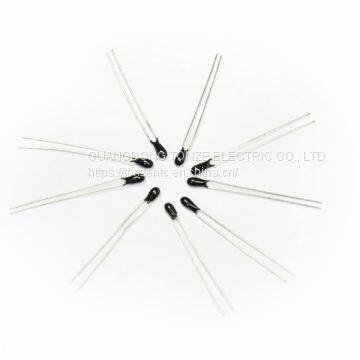

MF5A series are epoxy resin-wrapped NTC thermistors in small size introducing new materials and new technique, has the virtue of high precision and fast response and so on.

Features:

·Epoxy resin coated with radial lead

·Tinned alloy wire with different diameter 0.3mm, 0.4mm, 0.5mm, can be customized

·Wide range of resistance & Beta value with high resistance precision

·High precision to be ±0.05C、±0.1C、±0.2C

·Small size, quick sensing response

·Steady working for long time

·Good interchange ability and coherence

Application:

Air-conditioners, Heating Apparatus, Digital Thermometer, Liquid Level Sensor, Automobile Electricity, Digital Desk-calendar, Cell Phone Batteries

Specification:

·The range of resistance under the rated zero power (R25℃): 0.1 ~ 1000 K?

·The allowable tolerance of R25℃: ±0.05C、±0.1C、±0.2C、±0.3C、±0.5C、±1C

·The range of B value (B25/50℃): 3100 ~ 4500K

·The allowable tolerance of B value: ±0.5%、±1%、±2%

·The range of operating temperature: -30℃ ~ +150℃

·Dissipation factor: ≥2mW/℃ (In Still Air)

·Thermal time constant: ≤7S (In Still Air)

·Encapsulated: CP lead wire

·Dimension: Lead wire: ?0.3mm、?0.4mm、?0.5mm
