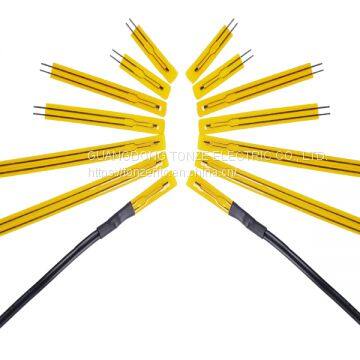

Film wrapped NTC Thermistor

TJD series are insulation film NTC thermistors, developed with innovative technique, designed for the purpose of temperature detection, control and compensation of electric and electronic products.

Features:

·Different lengths available: 13.5mm, 25mm, 50mm, 75mm

·Insulation film wrapped

·Wrapped with insulation film for superb electric insulation and safe use

·Quick response to thermal sensing and high delicacy

·High resistance precision, and working stability and reliability

·Small, light, firm structure and convenient for automation mounting on PCB

Application:

Computer, Printer, Battery-pack, Home electric appliances, Medical equipment and so on.

Specification:

·The range of resistance under the rated zero power (R25℃): 10KΩ、33KΩ、50 KΩ、100 KΩ

·The allowable tolerance of R25℃: ±0.5%、±1%、±2%、±3%、±5%

·The range of B value (K): 3435K; 3950K; 4050K

·The allowable tolerance of B value: ±0.5%、±1%、±2%

·The range of operating temperature: -30℃ ~ +105℃

·Dissipation factor: ≥0.7mW/℃ (In Still Air)

·Thermal time constant: ≤5S (In Still Air)

·Encapsulated: Film Wrapped

·Dimension: 13.5mm、25mm、50mm、75mm
