Sludge Drying Beds Metal Sludge Treatment

Sludge Drying Beds metal sludge treatment

Brief Introduction:

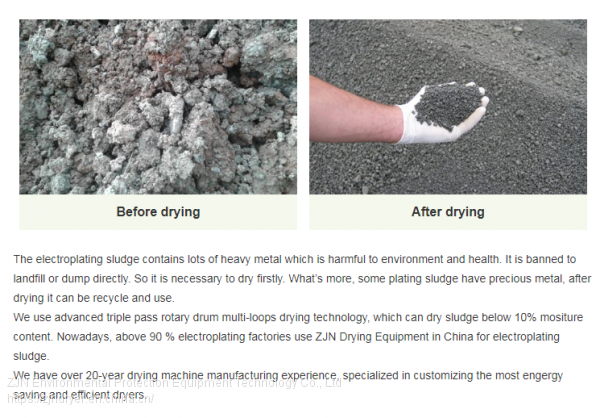

The electroplating sludge contains lots of heavy metal which is harmful to environment and health. It is banned to landfill or dump directly. So it is necessary to dry firstly. What’s more, some plating sludge have precious metal, after drying it can be recycle and use.

We use advanced triple pass rotary drum multi-loops drying technology, which can dry sludge below 10% mositure content. Nowadays, above 90 % electroplating factories use ZJN Drying Equipment in China for electroplating sludge.

We have over 20-year drying machine manufacturing experience, specialized in customizing the most engergy saving and efficient dryers.

Features ：

Advantage of Rotary Dryer

(1).  High production capacity

(2).  Lower consumption and operation cost

(3) .  Capable to dry different kinds of product

(4) .  Stable operation

(5) .  Uniform dried product

(6).  Both dryer and calciner, operation Temp. Up to 1000°C

(7 ).  Heat source can be steam, electricity, coal, natural gas etc.

Working Principle ：

(1).Putting the hot air and material into the first stage of drying equipment. There is a “Rotary Hollow Rolling Broken Device” in this stage, which breaks the material into scattered and “boiling suspended” state. With the hot air, the material will be keeping rolling, rotation and separation, and its surface will be dry, which can effectively prevent particles from clustering again. Thus the important transformation “high humid —→ not humid, high sticky —→ not sticky, high viscous to not viscous” is completed. With the function of Material Raising System, the material will be continuously threw and raised. The entire drying room will be filled by a complete material “curtain”, which can make the material abundantly and evenly contact with hot air, thus increasing the heat utilization and evaporation intensity.

?????

(2). With the effect of special Material Feeding and Raising System, the scattered material being discharged in the first stage will be sent to the second stage cylinder. However, water vapor produced in first stage is automatically discharged at the end of first dryer. The second stage cylinder adopts “Counter-Flow and Vortex Drying Technique”. It means the material being transported in reverse direction with fresh hot air flow. It can increase the turbulence intensity and the drying efficiency. At the same time, the heat diffusion is also fastened, then the water will be speed out. Thus the evaporation also speed up. Water vapor is discharged at the end of the second dryer. However, the material is automatically sent into the third dryer under the action of specific material pushing board.

(3).The third cylinder adopts ”Inter-flow plus Reciprocating Drying Technique. Under the action of hot air and material pushing board, the wet material moves slowly and reciprocating, while the dry material moves in advance and fast. Material will be discharged automatically when they are dry enough as request.

Company Information ：

Established in 1991, Jiaozuo ZJN Environmental Protection Equipment Technology Co., Ltd(was named Zhuoyue Drying Equipment Factory) is an innovative enterprise who has been specialized in the technology researching, equipment manufacturing and project engineering of drying high humid and viscous materials.

Take “high-efficiency, energy saving, being practical” as the principle, our company dedicates in environmental protection business. With over 20-years striving and innovation, we have got outstanding achievements in drying technology for sludge, solid waste and slags. We are always in the front of domestic drying technology which is rapidly developing. Based on advanced scientific management, integrity and pragmatic spirit, ZJN has won over 100 items of national patents, as well as being awarded many national honors and titles, such as “Identification of scientific and technological achievements”, “China Top 500 Private Technology Enterprise”, “Integrity Model Company”. We also passed ISO 9001: 2008 Quality certification.

Sticking to the combination of production, study and research, we cooperate with School of Environment & Natural Resources of Renmin University of China, Environmental Protection Research Institute of Beijing Institute of Science and Technology, Henan Polytechnic University and establish ZJN Drying Technology Researching Center, which independently designed, researched & developed, then produced the “Rotary Harrow Rolling Triple Stage & Multi-loop” Drying Equipment. The usage of this equipment made good economic, social and environmental benefits. It has been widely used in many industries such as Paper Making, Textile, Dying, Printing, Electroplating, Leather, Pharmacy, Chemical, Sewage Treatment, Feed, Liquor, Starch and Biological fermentation.

Packaging & Delivery

Packaging DetailsNew Type Energy Saving Industrial Drying Equipment Rotary Drum Dryer package:standard export containerPortShanghai,Dalian,Qingdao dryer Lead Time : 15-30 days after prepayment Rotary Drum Dryer

FAQ

Q: Why we believe in ZJN Environmental Protection Equipment Company?

A: 1. More than 20 years experience.

2. We are the leading professional supplier of mining equipments and service for quartz mining equipment industry.

3. All products achieved ISO9001:2008 quality management certificate and EU CE certificate.

Q: Delivery time

A: The lead time is 10-30 days, Delivery time will vary depending on the type of the machine, shipping method selected and  port availability.

Q: Payment terms

A: Accepted Payment Type:    T/T, L/C, Western Union, Cash

After sign the contract, pay the 30% deposit of total purchase price and pay the full payment before delivery.

Q: what will you do if the machine is broken down?

A: The Products warranty is one year. We will provide the technical advice and find the solution immediately for you when the machine is in trouble. For those wear parts, we guarantee the high quality parts for long-term supply.

Q: What should I do if I want to get a best quotation?

A: If you want a suitable type for you ,please let us know your material and capacity.
