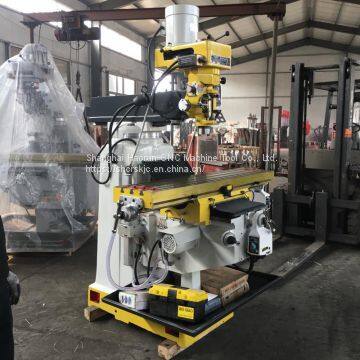

M5 turret milling machine|verticalVertical turret milling machine
- qingdao
- T/T PayPal Other
- 10 days
You May Like
Product Details
| Brand Name | Yurun | Place of Origin | China | |
| Model Number | M5 | Type | Horizontal | |
| After-sales Service Provided | No overseas service provided | Weight | 1700 | |
| Dimension(L*W*H) | 1566x1650x2080 | Voltage | 220 | |
| Condition | New | Power(W) | 3.75/5 | |
| CNC or Not | Normal |
Product Description
The main performance characteristics：
1.M Hanna high strength cast iron, internal honeycomb rib structure, high rigidity, long service life.
2.Spindle adopts imported from Japan King combination diamond. After the quenching and tempering and frequency processing, after fine grinding with 4 imported bearings (other manufacturers spindle 3 bearing), ensure high quality and high precision.
3.Three shaft screw fine grinding with advanced phosphor bronze nut, durable.
4.Horizontal milling with 4 gear shaft speed (other manufacturers for the 2 gear shaft), a wide range of variable speed, torque.
Application：
The milling machine is a kind of universal light duty metal cutting machine,
Has two functions of vertical and horizontal milling, Milling medium, small parts of the plane, inclined plane, groove and spline, etc..
Widely used in mechanical processing, mold, equipment, instrumentation and other industries.
Product main technical parameters:
Specifications | Units | 5H | ||
Table size | mm | 1370x305(54” x 12”) | ||
T- slot number and size | mm | 3x16 | ||
Working table stroke | X | mm | 810 | |
Y | 420 | |||
Z | 500 | |||
Telescopic arm stroke | mm | 500 | ||
Spindle nose to working table distance | mm | 0-350 | ||
Taper of spindle hole | r/min | Standard:ISO40 | ||
Spindle speed | Standard: 16（shift grade）50HZ:65-4500 60HZ:80-5440 | |||
Optional: Variable 65-3750 | ||||
Spindle travel | mm | 127 | ||
Spindle feed rate | mm/r | Three steps: 0.04(0.0015”)/0.08(0.003”)/0.15(0.006”) | ||
Spindle motor power | KW/HP | 3.75/5 | ||
Head rotation (left - right ) | ° | 90° | ||
Head rotation (front - rear) | ° | 45° | ||
Packaging size（Lx W x H） | Single package | mm | 1566x1650x2080 | |
Two sets of packaging | 1720x1800x2175 | |||
Gross Weight | Kg | 1700 | ||
