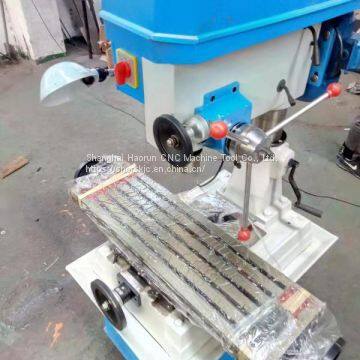

40 drilling and milling machine

FOB Price

US$ 1500 - 1650 / Box

1 Box(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Yurun	Place of Origin	China
Model Number	zxtm-40	Type	Vertical
After-sales Service Provided	No overseas service provided	Weight	460kg
Dimension(LWH)	100010501330	Voltage	220
Condition	New	Power(W)	1.5
CNC or Not	Normal

Specifications	ZXTM-40 drilling milling machine
Max. Drilling Dia. (mm)	40
Max. Horizontal Milling Dia.	100
Max. Vertical Milling Dia.	20
Distance from Spindle Nose to Table	550
Distance from Spindle Axis to Column	300
Spindle Travel	120
Spindle Taper	MT4
Spindle Speed Range	(9 step) 168-3168
Table Size (mm)	800*240
Table Travel (mm)	400*250
Main Motor Power (KW)	1.5
N.W./G.W.(Kg)	410/460

ZXTM-40 Milling Machine Standard Packing List

The main performance characteristics:

1.Milling head can be micro feed and achieve the drilling

2.The Vertical Milling Machine with Milling and tapping function

3.The universal milling machine Worktable can be equipped with the gear transmission power feed,

4.Full-featured and flexible

5.Easy to operate

6.The milling machine can be add plug and swivel table

7.Work Table Surface and Guide ways Hardened by Supersonic Frequency Quenching (depth 2-4MM)

8.Work Table Made by HT200-250 High Strength Cast Iron

9.Dovetail Table Guide ways Withstand Larger Overturning Moment

10.Gear Drive Milling Head

11.The milling Head stock Swivels ±45
