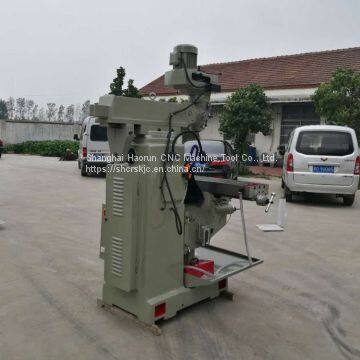

4HW turret milling machine
- 1 Box / Boxes per Month
- qingdao
- T/T PayPal Other
- 10 days
You May Like
-
GB4230 metal band sawing machine|Horizontal metal band sawing machine
-
vmc650 CNC machining center|CNC machining center 650
-
6140 lathe machine|manual lathe machine
-
Zx6350 drilling and milling machine|6350 drilling and milling machine
-
milling machine H5|verticalVertical turret milling machine
-
vmc850 CNC machining center|vertical cnc machining machine
Product Details
| Brand Name | Yurun | Place of Origin | China | |
| Model Number | 4HW | Type | Vertical | |
| After-sales Service Provided | No overseas service provided | Weight | 1650 | |
| Dimension(L*W*H) | 1516x1550x2080 | Voltage | 220 | |
| Condition | New | CNC or Not | Normal |
Product Description
The main performance characteristics：
1.M Hanna high strength cast iron, internal honeycomb rib structure, high rigidity, long service life.
2.Spindle adopts imported from Japan King combination diamond. After the quenching and tempering and frequency processing, after fine grinding with 4 imported bearings (other manufacturers spindle 3 bearing), ensure high quality and high precision.
3.Three shaft screw fine grinding with advanced phosphor bronze nut, durable.
4.Horizontal milling with 4 gear shaft speed (other manufacturers for the 2 gear shaft), a wide range of variable speed, torque.
Application：
The milling machine is a kind of universal light duty metal cutting machine,
Has two functions of vertical and horizontal milling, Milling medium, small parts of the plane, inclined plane, groove and spline etc..
Widely used in mechanical processing, mold, equipment, instrumentation and other industries.
Product main technical parameters:
Specifications | Units | 4Hw | ||
Table size | mm | 1270x254(10”x50”) | ||
T- slot number and size | mm | 3x16 | ||
Working table stroke | X | mm | 780 | |
Y | 400 | |||
Z | 500 | |||
Telescopic arm stroke | mm | 470 | ||
Spindle nose to working table distance | mm | 0-405 | ||
Taper of spindle hole | Standard: R8 Optional: ISO30/ISO40 | |||
Spindle speed | r/min | Standard: 16（shift grade）50HZ:65-4500 60HZ:80-5440 | ||
Optional:（variable）65-4000 | ||||
Spindle travel | mm | 127 | ||
Spindle feed rate | mm/r | Three steps: 0.04(0.0015”)/0.08(0.003”)/0.15(0.006”) | ||
Spindle motor power | KW/HP | 2.25/3HP | ||
Head rotation (left - right ) | ° | 90° | ||
Head rotation (front - rear) | ° | 45° | ||
Packaging size（Lx W x H） | Single package | mm | 1516x1550x2080 | |
Two sets of packaging | 1650x1790x2170 | |||
Three sets of packaging | 1650x2285x2235 | |||
Gross Weight | Kg | 1650 | ||
