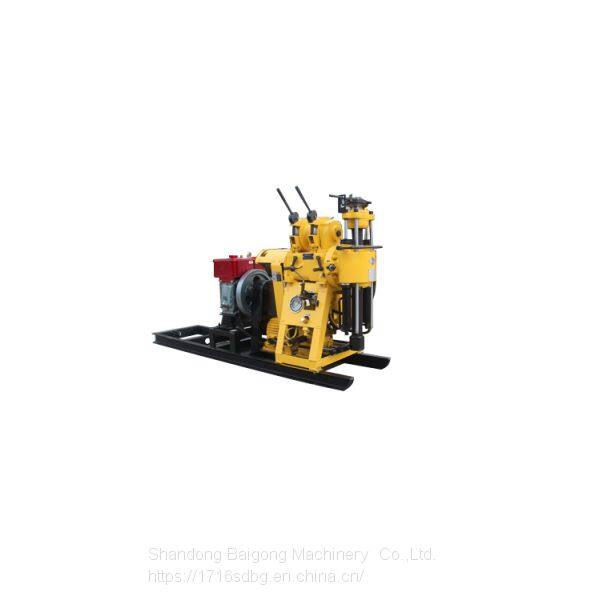

The Hot Sale HZ-130 Series Core Drilling Rigs With Stable Performance
- qingdao
- T/T Other
- 15 days
You May Like
-
The Hot Sale HZ-180 Series Core Drilling Rigs With Stable Performance
-
The Hot Sale HZ-200 Series Core Drilling Rigs With Stable Performance
-
The Easy Operate and Saving Labor QY200 Crawler Type Water Well Drilling Rig for Sale
-
XY-1 High Efficiency Drilling Rig With Light Weight Shallow Hole for Sale
-
The Hot Sale XY-2 Drilling Rig Kilometer With Light Weight Shallow Hole Rig and Oil Pressure Feed.
-
The Hot Sale XYX-3 Wheeled Walking Water Well Drilling Rig With High Efficiency
Product Details
| Brand Name | Baigong | Place of Origin | China | |
| Model Number | HZ-130 | Type | Rotary Drilling Rig | |
| Certification | ISO | Warranty | 1 year | |
| Weight | 560kg | Dimension(L*W*H) | 2400×700×1400 | |
| Power Type | Electric | Voltage | 380V | |
| Usage | Water Well | Condition | New | |
| Power(W) | 13.2 |
Product Description
The HZ-130/180/200 series core drilling rigs are suitable for rigorous exploration, geophysical exploration, road and building exploration, and blasting holes. Drills such as alloys, diamonds and composite sheets can be used depending on the bottom layer. It can drill 2-9 grade sandy clay and rock layers.
· With hydraulic automatic feeding mechanism to improve drilling efficiency and reduce labor intensity.
·The ball card clamping mechanism can be used instead of the chuck to implement the non-stop bar, which is easy to operate, safe and reliable.
·The hoist is equipped with a cage to form a double-sided support star wheel structure, which can withstand strong impact
·The four sets of bearing positioning of the vertical axle box ensure that the gyrator has sufficient rigidity to deal with complex geological conditions such as gravel layer and pebble layer.
Technical parameters | Unit | 130Y | 180Y | 200Y |
Drilling depth | M | 130 | 180 | 200 |
Open hole diameter | mm | 220 | 220 | 325 |
End hole diameter | mm | 75 | 75 | 75 |
Drilling pipe diameter | mm | 42-60 | 42-60 | 42-60 |
Drilling angle | ° | 90-75 | 90-75 | 90-75 |
Power | Kw | 13.2 | 13.2 | 15 |
Weight | Kg | 560 | 610 | 1150 |
Dimension | mm | 2400×700×1400 | 2400×600×1400 | 2700×900×1600 |
spindle speed
| r/min | 285 | 480 | 557 |
Spindle stroke
| mm | 450 | 450 | 450 |
Single rope lifting force | Kg | 1600 | 2000 | 2400 |
Single line lifting speed
| M/min | 041-1.64 | 0.35-2.23 | 0.12-0.95 |
Wire rope diameter | mm | 9.3 | 9.3 | 12.5 |
Wire rope capacity | M | 27 | 35 | 35 |
Rated load capacity | T | 2 | 2 | 5 |
Effective height | M | 6 | 6 | 6 |
Flow | L/min | 95 | 95 | 145 |
Max pressure | MPa | 1.2 | 1.2 | 2 |
Reciprocal time | times/min | 93 | 93 | 93 |
Suction pipe diameter | mm | 51 | 51 | 51 |
Outlet pipe diameter | mm | 32 | 32 | 32 |
