The Guardrail Pull-and-drill Integrated Hot Sale Pile Driver
- qingdao
 - T/T Other
 - 15 days

You May Like
-


The Crawler Photovoltaichot Sale Pile Driver
 -


Wheel Rotary High Efficiency and High Quality Drilling Rigs
 -


The Small Mini High-quality and Stable Performance Excavator
 -


The Small Mini High-quality and Stable Performance BF-13 Excavator
 -


The Small Mini High-quality and Stable Performance BF-18 Excavator
 -


The Full Hydraulic High-quality and Stable Performance BF-18 Excavator

Product Details
| Brand Name | BAIGONG | Place of Origin | China | |
| Certification | ISO | Weight | 2600kg | |
| Dimension(L*W*H) | 2800×2100×2500 | Condition | New |
Product Description

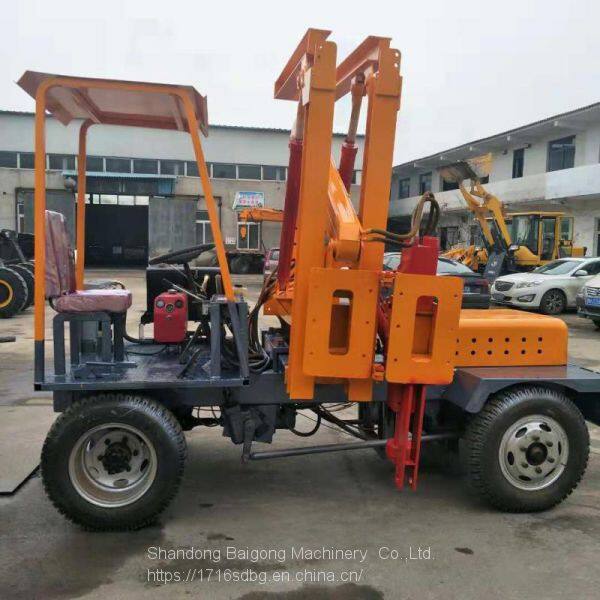

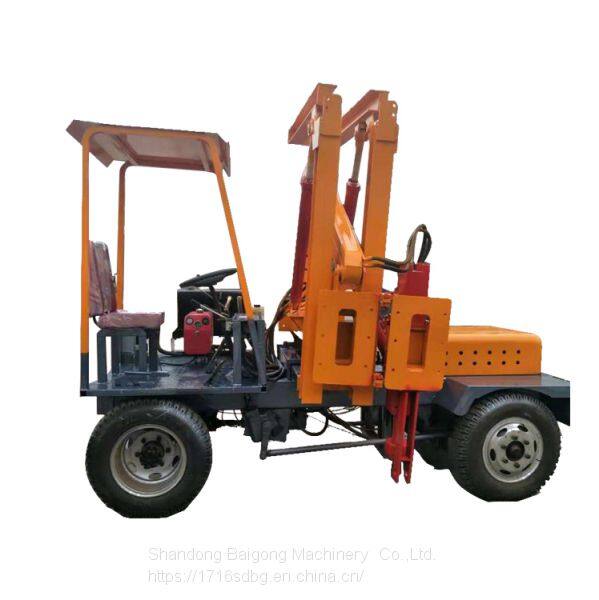

The guardrail pull-and-drill integrated machine is a road guardrail steel pipe piling equipment. It is suitable for drilling, piling, pulling piles and other piling operations in highways and highway guardrails. The machine integrates the functions of drilling and pulling, and is used in one machine.
parameter name  | unit  | parameter  |
Engine rated power  | kw  | 37(53HP)  |
Pile machine dimensions (when transported)  | mm  | 2800×2100×2500  |
Pile machine dimensions (during construction)  | mm  | 2800×2500×3500  |
Hydraulic hammer striking force  | T  | 8-14  |
Hydraulic hammer working mode  | High frequency vibration  | |
Walking speed  | km  | 8-12  |
Piling height  | m  | 2.7  |
Total Weight  | kg  | 2600  |
Hydraulic system pressure  | Mpa  | 16  |
Hydraulic system flow  | Ml/r  | 40-40  |
Air compressor  | set  | 3.5  |
Engine brand  | yunneipower  | |
Chassis track  | mm  | 1700  |
Hydraulic hammer model  | TZ260  | |
Pulling force  | T  | About 12  |
Pile pulling method  | High frequency vibration  | |
Lateral travel  | mm  | 0-400  |
Hydraulic hammer impact frequency  | rpm  | 350-780  |
Hydraulic hammer working flow  | I/min  | 30-55  |
Hydraulic hammer working pressure  | Mpa  | 16  |
Drill rod diameter  | mm  | 68  |
