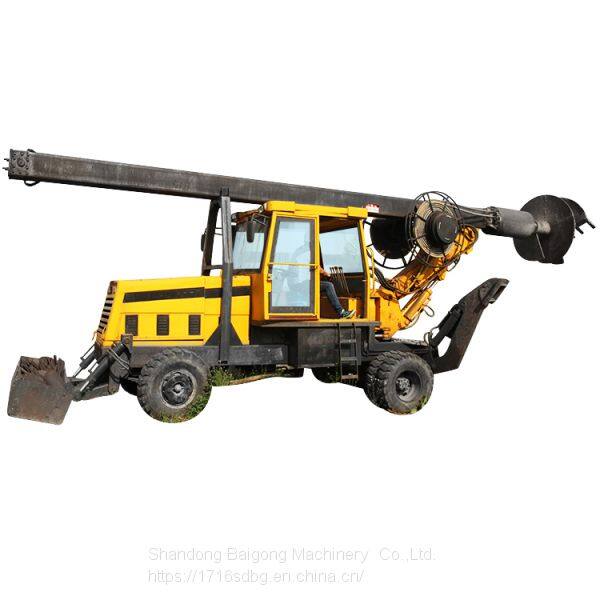

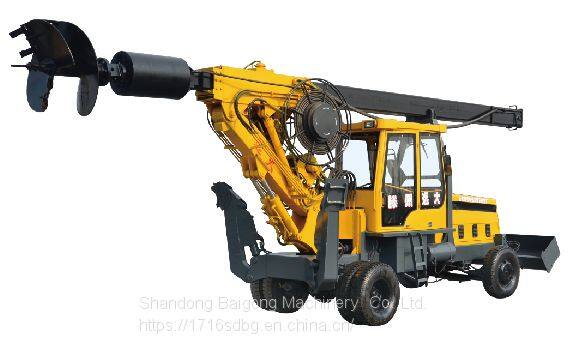

Wheel Rotary High Efficiency and High Quality Drilling Rigs
- qingdao
 - T/T Other
 - 15 days

You May Like
-


The Small Mini High-quality and Stable Performance Excavator
 -


The Small Mini High-quality and Stable Performance BF-13 Excavator
 -


The Small Mini High-quality and Stable Performance BF-18 Excavator
 -


The Full Hydraulic High-quality and Stable Performance BF-18 Excavator
 -


DLS880-9A 8 Tons Wheeled Hydraulic High-quality and Stable Performance Excavator
 -


Hand-push Double Drum Road Roller With Diesel Small Road Roller

Product Details
| Brand Name | Baigong | Place of Origin | China | |
| Model Number | QF-15 | Certification | ISO | |
| Warranty | 1 year | Weight | 8500kg | |
| Dimension(L*W*H) | 8400×2200×3250 | Power Type | Diesel | |
| Usage | Water Well | Power(W) | 100kw |
Product Description
Wheel rotary drilling rigs are widely used in rural construction, electric power engineering, high-speed guardrail piling, photovoltaic power pile driving, landscaping, municipal engineering, geological exploration and other engineering projects.
The machine body is smart, easy to move, stable, strong horsepower, abundant power, high work efficiency, adjustable drill hole size, wide application range, low investment and fast cost recovery. It is the current price/performance ratio of small pile-driving machinery. The ideal product.
Specifications  | unit  | QF-15  |
Dimensions  | mm  | 8400×2200×3250  |
Drilling diameter  | mm  | 480-2000  |
Drilling depth  | mm  | 15  |
Wheelbase  | mm  | 3250  |
Track  | mm  | Top 1500 After 1160  |
power  | Kw  | 100  |
Hydraulic oil  | MPa  | 46#  |
Work pressure  | MPa  | 20-25  |
Maximum torque  | KN·M  | 22  |
Rotating speed  | rpm  | 40  |
Earth dropping speed  | rpm  | 3  |
Pressure  | KN  | 3  |
Lifting force  | KN  | 5  |
Lift the itinerary  | mm  | 5300  |
Swing angle  | °  | 180  |
Walking speed  | Km/H  | 50  |
weight  | Kg  | 8500  |
