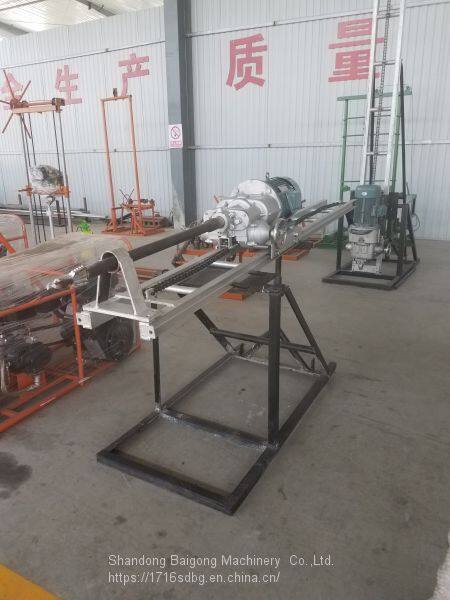

Hot Sale and High Efficiency KHYD125 Type Mining Rock Drill
- qingdao
- T/T Other
- 15 days
You May Like
-
Loader Type Guardrail Hot Sale Pile Driver
-
The Guardrail Pull-and-drill Integrated Hot Sale Pile Driver
-
The Crawler Photovoltaichot Sale Pile Driver
-
Wheel Rotary High Efficiency and High Quality Drilling Rigs
-
The Small Mini High-quality and Stable Performance Excavator
-
The Small Mini High-quality and Stable Performance BF-13 Excavator
Product Details
| Brand Name | Baigong | Place of Origin | China | |
| Model Number | KHYD125 | Type | Rotary Drilling Rig | |
| Certification | ISO | Warranty | 1 year | |
| Weight | 125kg | Power Type | Electric | |
| Voltage | 380v | Usage | Ore | |
| Condition | New | Power(W) | 7.5kw |
Product Description
KHYD110 type mining rock drill (hereinafter referred to as drilling rig), mainly used for drilling rock blasting holes; railway, highway, bridge, reservoir, mountain slope support in the middle of drilling anchor hole; highway subgrade drilling drainage hole; urban tall Drilling and nailing holes in the foundation pit support of buildings; grouting holes for foundation foundation reinforcement of houses and workshops; blasting holes in physical exploration. The rig is light in weight, high in power, easy to move and overhead.
·The drilling rig needs to have a drill frame to achieve horizontal forward, vertical, inclined upward and downward drilling;
·Use water drainage (wet drilling) to extend bit life;
·When the rig is in operation, the rig can be self-propelled and quickly returned by simply manipulating the hand wheel to rotate back and forth.
Parameter | unit | KHYD110 | KHYD125 |
Motor model | Y132S-4 | Y132M-4 | |
Rated power | Kw | 5.5 | 7.5 |
Rated voltage | V | 380 | |
Rated current | A | 11.6 | 15.4 |
Rated speed | r/min | 1140 | |
Rated frequency | Hz | 50 | |
Motor number of phases | 3 | ||
Principal axis speed | r/min | 240 | |
Maximum axial thrust | KN | 12 | 15 |
Drilling speed | r/min | 280 | |
Drilling diameter | mm | Rock:45-80,Soil:45-100 | Rock:45-100,Soil:45-120 |
Drilling depth | M | 20 | 25 |
Rock hardness | F≤10 | ||
Weight | Kg | 110 | 125 |
Cable model | U model3×4+1×4 GB1170-74(user provide for oneself ) | ||
Electrical control box | Should have leakage, overload protection(user provide for oneself ) | ||
