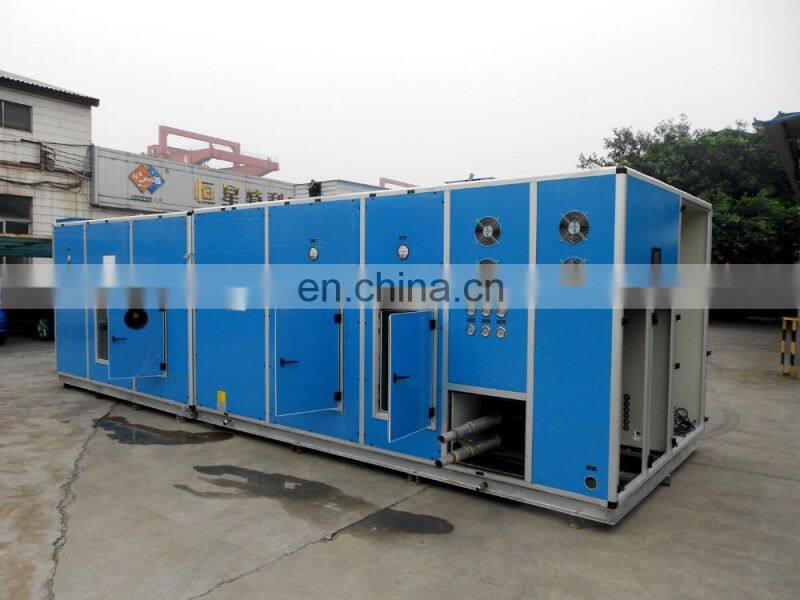

40000cfm Customized AHU Fresh Air Heat Recovery Air Handling Unit prices

Main Features

-Precious temperature and humidity control
-Large air volume (over 60000CMH), cooling capacity (450kW), heating capacity (120kW) and humidifying capacity (180kg/h)
-Heat recovery and clean hygienic room design application
-Operation efficiency and energy saving
-Outstanding reliability and performance
-Configured flexibly, numerous options for customization
-Shipped in sections or knock down form for renovation  work

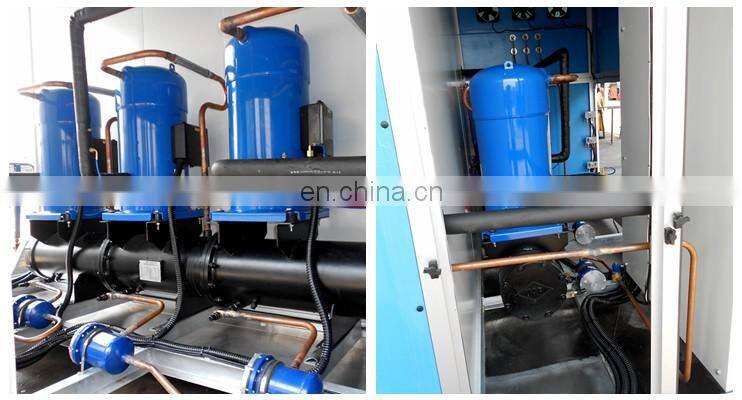

Energy Saving Refrigerating System

• DANFOSS scroll hermetic compressor
• Advanced design, low running noise, energy saving, safety and long service life
• Multi-circuits design, running reliably and energy-saving

• COPELAND, DAIKIN compressor available

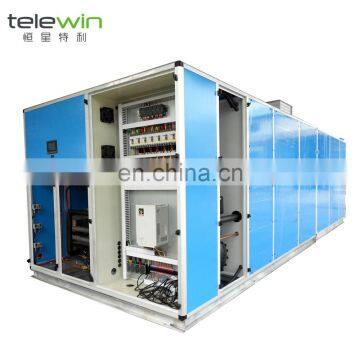

Intelligent Control Console

• Auto control each section of the unit to make sure the temperature, humidity and cleaness
• High quality and international brand electrical elements to ensure the unit operate more stable and energy-saving
• Each circuit with corresponding number to mark, to facilitate follow-up circuit repair and maintenance
• Screen touch panel, with setting, display and memory function
• DDC and PLC available

Frame

• Penta-post extra heavy gauge aluminium profiles and strong    fiber-reinforced PE corner connection forming the structural  frame

• superior mechanical strength and rigidity to the unit frame and  to prevent any buckling or deformation

• Thermal bridge free design, the profiles filled with polyurethane  foam for insulation

• Anodizing surface treatment for profiles, corrosion-resistant

• Stainless steel frame available

Casing Panel and Insulation

• Double skin construction is provided by sandwich type panels  comprising inner and outer painted steel skins and  polyurethane foam with minimum 48kg/m3 density, providing a  good thermal and acoustical performance

• The gasket liner between the panels and frame ensures the air  leakage rate to comply with GB/T 14294 clean air conditioning  requirement

• The factory painted steel sheet covered with 6 insulation  coatings, complies to 500h salt spray testing, showing an  excellent corrosion protection performance

Famous Brand Fan and Motor

• Fan selection based on the air flow and air static requirement  is done by fan selection software

• Direct driven/ belt driven, forward curve/ backward curve  centrifugal fans, and EC fan  is available for option

• Nicotra, Kruger, Deton, Yilida is offered as option

• Motor is TEFC type, class F insulation and IP54 or IP55  protection, energy saving and stable operation

• Mounted on an adjustable slide for belt tension adjustment

• Variable frequency drive (VFD) motor is available

• Siemens, ABB, WEG, TECO is offered as option

High Efficiency Cooling and Heating Coil

• All coils calculation and selection is done by selection  software to match the required conditions
• Large coil face area ensures maximum heat transfer rate
• All coils tested at 30bar pressure underwater 24 hours
• Various corrosion resistance coils for option:
 -Cooper tube with cooper fins coil
 -Epoxy coated fins coil
 -Electrophoresis fins coil
 -Heresite coated coil

Vibration Eliminator

• To reduce the transmission of vibration and noise, fan and  motor are installed on an independent complete base frame

• The complete base frame is isolated by deflection type spring  isolators

• This unique structure not only reduce the vibration and noise,  but also protect fan and motor during transportation

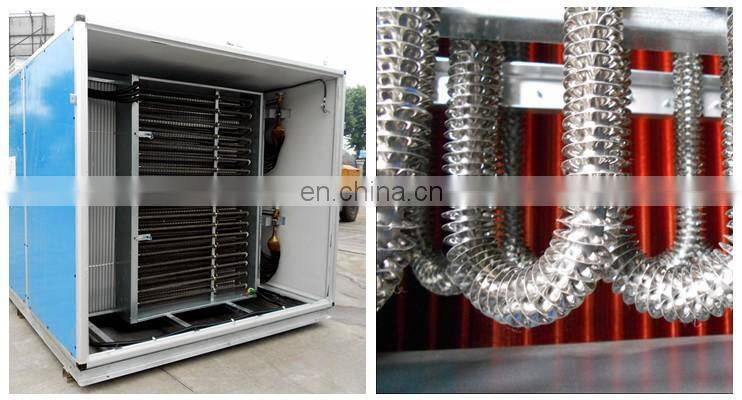

Energy Saving Electric Heater

• Stable electric heating capacity
• Energy saving and safety
• Anti-corrosion

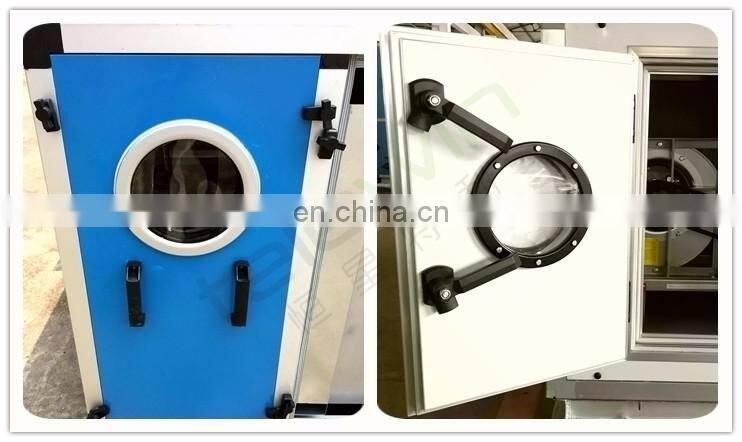

Sight Glass Service Door

• Double skin structure, inner panel is made of stainless steel, and  outer panel is made of painted steel sheet

• Positive and negative access door, ensures the airtight of unit

• Convinient to check the running status of the unit
• Double sealing, no air leakage
• Built-in multi-point fastening locks make the panel evenly  stressed, preventing air leakage and loss of energy efficiency of  the unit

Stainless Steel Drain Pan

• Slop type design, no drain water carryover and keep the pan dry
• Avoid the micro-organisms growth inside the drain pan

Antimicrobial Drain Pan is offered as option
• SteriTouch technology Drip Pan Coating
• Antimicrobial surface
• Good exterior durability and corrosion resistance
• Excellent adhesion
• Non-toxic, comply with BS476 part 7

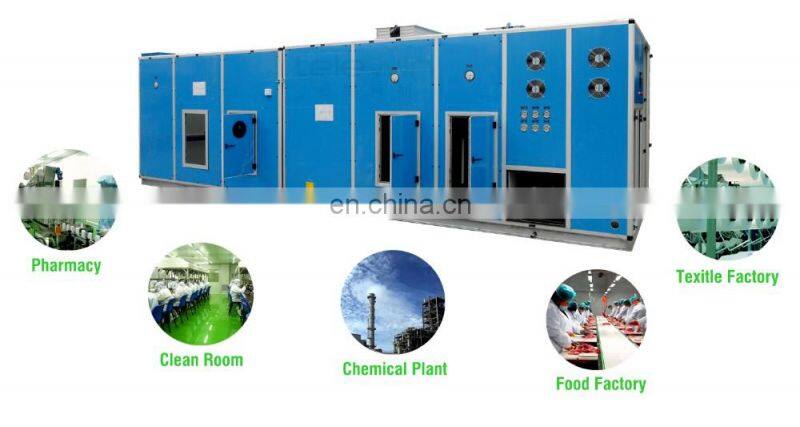

Solutions

Telewin offers One Stop Solutions for
•Pharmaceuticals industry
•Electronics industry
•Automobile industry
•Printing and food industry
•Commercial building
•VOC treatment and environment protection
•Indoor air quality
•Marine ventilation

Services

•Consultancy
•System Design
•Technical support
•Customized manufacturing
•General testing before delivery
•Spare parts supply according to order quantity
•Long warranty period
•OEM service available
Welcome co-operation of energy saving products development

FAQ

1.Are you a factory?
--- Yes, we are a professional AHU manufacturer for more than 20 years.

2.How do you check the goods?
--- We inspect all the materials when they arrive, and have spot inspection during production process. All goods will be tested and double inspected before delivery, providing 100% guarantee for clients.

3. How to select the suitable models?
---The parameters above is just for your reference. We need you to provide us the air flow, ESP or TSP, cooling capacity, heating capacity or application for our team to design the suitable unit for you.

4.How and when can I get the quotation?
--- Send us the inquiry or leave us message. We will get back to you within 1 hour during the working time. All messages will be replied whenever they comes.

5.What's your payment terms?
--- Usually we accept T/T or LC. 30% deposit. Other payment terms can be discussed when orders confirmed.

6.Where is your factory Located? How can I visit there?
--- We located in Foshan, Guangdong Province, which is near Guangzhou Baiyun International Airport and Guangzhou South Railway Station. We can pick you up from the airport or railway station. You are warmly welcome to visit us!

7.Do you provide OEM service?
--- Yes! We provide OEM and ODM service.

8.What's the lead time for your goods?
--- Normally 25 workdays. For urgent orders, we can make special arrangement to fulfill your request.
