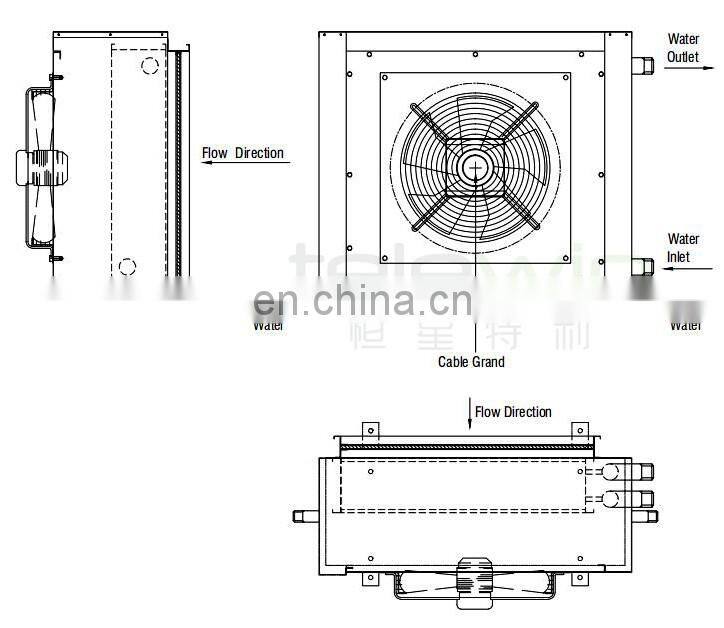

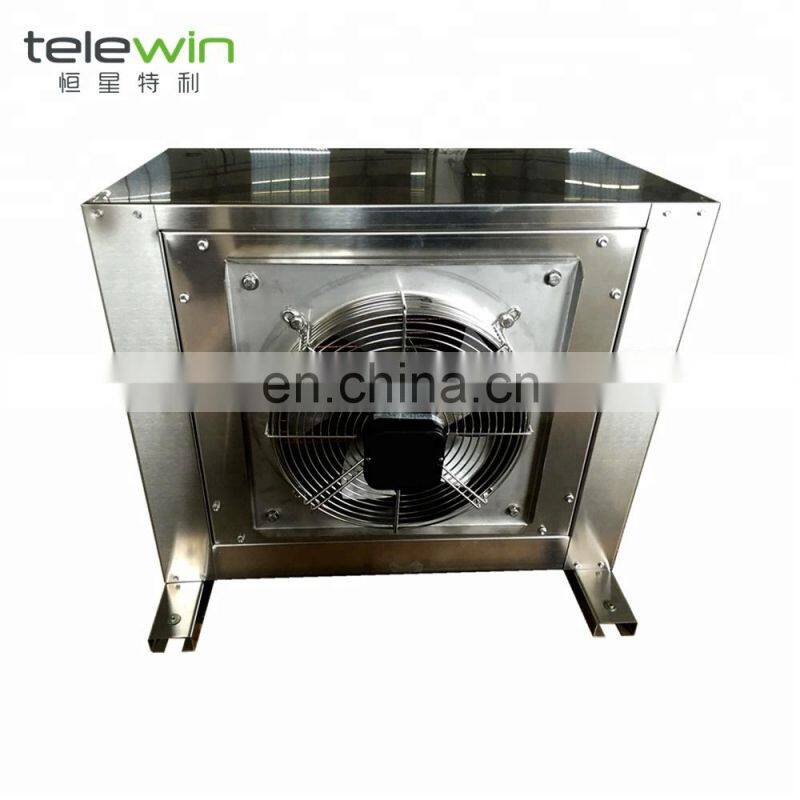

Full Stainless Steel Free Blow Axial Fan Coils Unit for Cooling and Heating

Main Features

The Stainless Steel Axial Fan Coils Unit (FCU) is designed for Marine

• Direct-drive Free Blow Fan Coils with SS316L casing and drain  pan
• Cu/Cu Cooling Coil for coast air environment
• Easy replacement side track filter
• Factory provide supporting SS316L base for fast installation

• Air flow from 1650m3/h to 8800m3/h

• Cooling capacity from 11KW to 55KW

• Heating capacity from 15KW to 78KW

Advantage: Low noise/large coil area/long life with low running cost.

Panel Structure and Insulation

• Whole structure made of stainless steel, including casing, drain     pan and base

• Tolerant 500Hrs salt spray test

• SS201, SS304, SS316L are available

• Insulated with 25mm PE, ensure lowest air leakage

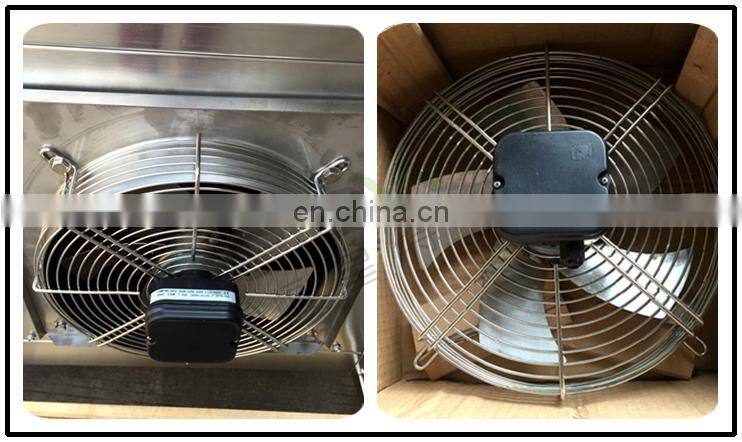

Famous Brand Blower and Motor

• Energy saving Stainless Steel Axial Fan (SS201 & SS304) with   low speed and low noise

• Blade, grille and wind ring made of SS304

• Stanard Fan available

• Brand: Nicotra/Kruger/Deton/Yilida available

• Motor: IP54, can do special treatment to avoid corrosion

• Brand: Siemens, ABB and Teco available

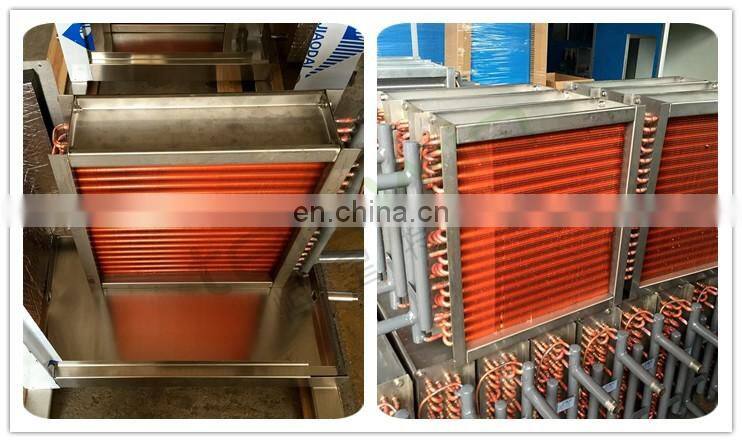

Cooling / heating coil

• Copper tube with copper fins, coil frame with 1.2mm SS316L

• Anti-corossion

• Large coil face area with low air speed

• Copper tube with hydrophilic aluminum fins available

• Various anti-corossion coating for option, Electrophoresis and

   Heresite coating available

Filtration

• Built-in side track washable Nylon pre-filter

• Easy to move for the maintaining

• Non-woven fabric filter, Aluminum mesh filter available

Solutions

Telewin offers One Stop Solutions for
•Pharmaceuticals industry
•Electronics industry
•Automobile industry
•Printing and food industry
•Commercial building
•VOC treatment and environment protection
•Indoor air quality
•Marine ventilation

Services

•Consultancy
•System Design
•Technical support
•Customized manufacturing
•General testing before delivery
•Spare parts supply according to order quantity
•Long warranty period
•OEM service available
Welcome co-operation of energy saving products development
