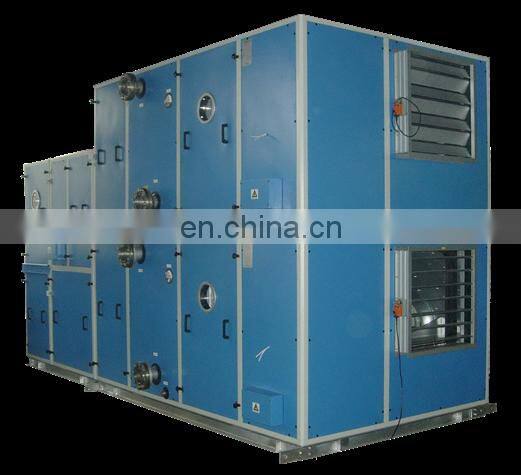

30000CMH Water Cooled Marine Air Handler Air Conditioning HVAC system
- 100 Set / Sets per Month
- Guangzhou
- T/T Credit Card
You May Like
-
DX air handling unit/packaged unit/split unit
-
Fresh air handling unit with cooling/heating/humidity control
-
chilled water air handling unit
-
Energy Saving Central Air Conditioner HVAC System Air Handling Unit AHU
-
Air Cooled Condenser for Hospital/ Factory/ Lab/ Hotel
-
Clean Air PM2.5 AHU Fresh Air Handling Unit for HVAC System
Product Details
| Brand Name | Telewin | Place of Origin | Guangdong, China | |
| Model Number | TZK |
Product Description
Main Features
- Large air flow (30000CMH), high supply air static of 400Pa and cooling capacity (180kW)
- Multi-circuits refrigerating system for part load energy saving
- Large and high level condenser coil design to increase operation efficiency and energy saving
- Multi-sections design for special application
- High quality major components including large VSD centrifugal fan ensure outstanding reliability and performance
- Easy and clear Microprocessor control panel with all operating data display
- Green environmental Heat Wheel option available, configured flexibly, numerous options for customization
- Plug and play concept for simple easy installation and commissioning
- Air-cooled and Water-cooled units are available
Frame
• Penta-post extra heavy gauge aluminium profiles and strong fiber-reinforced PE corner connection forming the structural frame
• Superior mechanical strength and rigidity to the unit frame and to prevent any buckling or deformation• Thermal bridge free design, the profiles filled with polyurethane foam for insulation
• Anodizing surface treatment for profiles, corrosion-resistant
• Stainless steel frame available
Casing Panel and Insulation
• Double skin construction is provided by sandwich type panels comprising inner and outer painted steel skins and polyurethane foam with minimum 48kg/m3 density, providing a good thermal and acoustical performance
• The gasket liner between the panels and frame ensures the air leakage rate to comply with GB/T 14294 clean air conditioning requirement
• The factory painted steel sheet covered with 6 insulation coatings, complies to 500h salt spray testing, showing an excellent corrosion protection performance
Famous Brand Blower and Motor
• Fan selection based on the air flow and air static requirement is done by fan selection software
• Direct driven/ belt driven, forward curve/ backward curve centrifugal fans, and EC fan is available for option
• Nicotra, Kruger, Deton, Yilida is offered as option
• Motor is TEFC type, class F insulation and IP54 or IP55 protection, energy saving and stable operation
• Mounted on an adjustable slide for belt tension adjustment
• Variable frequency drive (VFD) motor is available
• Siemens, ABB, WEG, TECO is offered as option

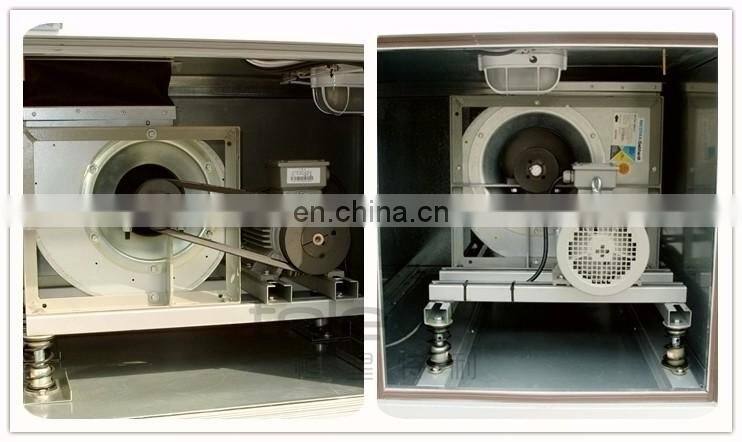

Vibration Eliminator
• To reduce the transmission of vibration and noise, fan and motor are installed on an independent complete base frame
• The complete base frame is isolated by deflection type spring isolators
• This unique structure not only reduce the vibration and noise, but also protect fan and motor during transportation
High Efficiency Cooling and Heating Coil
• All coils calculation and selection is done by selection software to match the required conditions
• Large coil face area ensures maximum heat transfer rate
• All coils tested at 30bar pressure underwater 24 hours
• Various corrosion resistance coils for option:
-Cooper tube with cooper fins coil
-Epoxy coated fins coil
-Electrophoresis fins coil
-Heresite coated coil
Stainless Steel Drain Pan
• Slop type design, no drain water carryover and keep the pan dry
• Avoid the micro-organisms growth inside the drain pan
Antimicrobial Drain Pan available upon application
• SteriTouch technology Dust Free Drip Pan Coating
• Antimicrobial surface
• Good exterior durability and corrosion resistance
• Excellent adhesion
• Non-toxic, comply with BS476 part 7

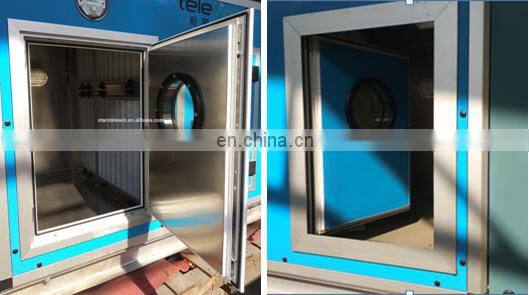

Sight Glass Service Door
• Double skin structure, inner panel is made of stainless steel, and outer panel is made of painted steel sheet
• Positive and negative access door, ensures the airtight of unit
• Convinient to check the running status of the unit
• Double sealing, no air leakage
• Built-in multi-point fastening locks make the panel evenly stressed, preventing air leakage and loss of energy efficiency of the unit
Telewin supplies Air Conditioning products to oversea and domestic markets
▲Stable and timely supply guaranteed
▲Carton box and wooden case packing available
▲Customized packing acceptable
Solutions
Telewin offers One Stop Solutions for
•Pharmaceuticals industry
•Electronics industry
•Automobile industry
•Printing and food industry
•Commercial building
•VOC treatment and environment protection
•Indoor air quality
•Marine ventilation
Services
•Consultancy
•System Design
•Technical support
•Customized manufacturing
•General testing before delivery
•Spare parts supply according to order quantity
•Long warranty period
•OEM service available
Welcome co-operation of energy saving products development
1.Are you a factory?
--- Yes, we are a professional AHU manufacturer for more than 20 years.
2.How do you check the goods?
--- We inspect all the materials when they arrive, and have spot inspection during production process. All goods will be tested and double inspected before delivery, providing 100% guarantee for clients.
3. How to select the suitable models?
---The parameters above is just for your reference. We need you to provide us the air flow, ESP or TSP, cooling capacity, heating capacity or application for our team to design the suitable unit for you.
4.How and when can I get the quotation?
--- Send us the inquiry or leave us message. We will get back to you within 1 hour during the working time. All messages will be replied whenever they comes.
5.What's your payment terms?
--- Usually we accept T/T or LC. 30% deposit. Other payment terms can be discussed when orders confirmed.
6.Where is your factory Located? How can I visit there?
--- We located in Foshan, Guangdong Province, which is near Guangzhou Baiyun International Airport and Guangzhou South Railway Station. We can pick you up from the airport or railway station. You are warmly welcome to visit us!
7.Do you provide OEM service?
--- Yes! We provide OEM and ODM service.
8.What's the lead time for your goods?
--- Normally 25 workdays. For urgent orders, we can make special arrangement to fulfill your request.
