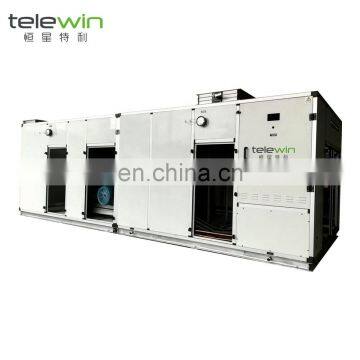

Modular Air Side Products AHU Air Handling Unit Air Handler HVAC System

Main Features

• All-in one compact industrial air conditioning unit

• Large air flow (25000CMH), high supply air static of 300Pa and cooling capacity (100kW)

• High efficicency purification, G4+F8+HEPA filters

• Multi-circuits refrigerating system for part load energy saving

• Large and high level condenser coil design to increase operation efficiency and energy saving

• High quality major components including electrical, compressor, fans ensure outstanding reliability and performance

• Easy and clear Microprocessor control panel with all operating data display

• Green environmental Heat Wheel option available, configured flexibly, numerous options for customization

• Plug and play concept for simple easy installation and commissioning

Intelligent Control Console

• Auto control each section of the unit to make sure the  temperature, humidity and cleaness
• High quality and international brand electrical elements to  ensure the unit operate more stable and energy-saving
• Each circuit with corresponding number to mark, to facilitate  follow-up circuit repair and maintenance
• Screen touch panel, with setting, display and memory function
• DDC and PLC available

Energy Saving Refrigerating System

• DANFOSS scroll hermetic compressor
• Shell and tube type condenser
• Advanced design, low running noise, energy saving, safety and  long service life
• Multi-circuits design, running reliably and energy-saving
• COPELAND, DAIKIN compressor available

High Efficiency Cooling and Heating Coil

• All coils calculation and selection is done by selection  software to match the required conditions
• Large coil face area ensures maximum heat transfer rate
• All coils tested at 30bar pressure underwater 24 hours
• Various corrosion resistance coils for option:
   -Cooper tube with cooper fins coil
   -Epoxy coated fins coil
   -Electrophoresis fins coil
   -Heresite coated coil

Famous Brand Fan and Motor

• Fan selection based on the air flow and air static requirement  is done by fan selection software
• Direct driven/ belt driven, forward curve/ backward curve  centrifugal fans, and EC fan is available for option
• Nicotra, Kruger, Deton, Yilida is offered as option
• Motor is TEFC type, class F insulation and IP54 or IP55  protection, energy saving and stable operation
• Mounted on an adjustable slide for belt tension adjustment
• Variable frequency drive (VFD) motor is available
• Siemens, ABB, WEG, TECO is offered as option

Vibration Eliminator

• To reduce the transmission of vibration and noise, fan and motor  are installed on an independent complete base frame

• The complete base frame is isolated by deflection type spring  isolators

• This unique structure not only reduce the vibration and noise, but  also protect fan and motor during transportation

Frame

• Penta-post extra heavy gauge aluminium profiles and strong  fiber-reinforced PE corner connection forming the structural  frame
• superior mechanical strength and rigidity to the unit frame and to  prevent any buckling or deformation
• Thermal bridge free design, the profiles filled with polyurethane  foam for insulation
• Anodizing surface treatment for profiles, corrosion-resistant
• Stainless steel frame available

Casing Panel and Insulation

• Double skin construction is provided by sandwich type panels  comprising inner and outer painted steel skins and polyurethane  foam with minimum 48kg/m3 density, providing a good thermal  and acoustical performance
• The gasket liner between the panels and frame ensures the air  leakage rate to comply with GB/T 14294 clean air conditioning  requirement
• The factory painted steel sheet covered with 6 insulation  coatings, complies to 500h salt spray testing, showing an  excellent corrosion protection performance

Stainless Steel Drain Pan

• Slop type design, no drain water carryover and keep the pan dry
• Avoid the micro-organisms growth inside the drain pan

Antimicrobial Drain Pan is offered as option
• SteriTouch technology Drip Pan Coating
• Antimicrobial surface
• Good exterior durability and corrosion resistance
• Excellent adhesion
• Non-toxic, comply with BS476 part 7

Telewin supplies Air Conditioning products to oversea and domestic markets

•Stable and timely supply guaranteed
•Export standard paper carton and wooden case packing available
•Customized packing acceptable

Services

• Consultancy
• System Design
• Technical support
• Customized manufacturing
• General testing before delivery
• Spare parts supply according to order quantity
• Long warranty period
• OEM service available
Welcome co-operation of energy saving products development

Solutions

Telewin offers One Stop Solutions for
• Pharmaceuticals industry
• Electronics industry
• Automobile industry
• Printing and food industry
• Commercial building
• VOC treatment and environment protection
• Indoor air quality
• Marine ventilation
