Home > Products > PLC Splitter > Passive FTTH Fiber Optical Cable Mini 1x4 PLC Splitter

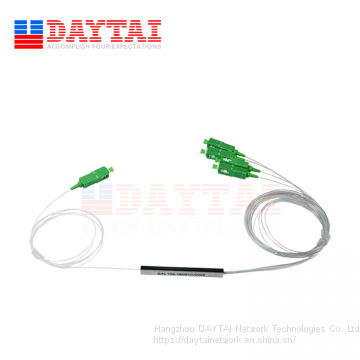

Passive FTTH Fiber Optical Cable Mini 1x4 PLC Splitter

FOB Price

USD $1 - $15 / Piece

100 Pieces(Min.Order)

Supply Ability 100000 Piece / Pieces per Month
Port Shanghai
Payment TermsT/T Credit Card PayPal Other

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	DAYTAI		Place of Origin	China
Model Number	1x4 PLC Splitter-Mini Type (0.9mm）-SC/APC

Product Description

Description

1x4 PLC Splitter Mini type,SM fiber,fiber optic cable OD:0.9mm pigtail,1m length, with SC/APC connector.

Features

⊙FTTH

⊙Monitoring

⊙CATV System

⊙Network Protection

⊙Access/PON Distribution

Insertion Loss

- Test Wavelength： 1310-1550 nm

- Required Value：P Grade

- Test can be performed on any channel

Return Loss

- Test Wavelength： 1310-1550 nm

- Required Value：>55dB

- Test can be performed on any channel

Directivity

- Test wavelength： 1310-1550 nm

- Required Value：>55 dB

On Dependent Loss-PDL

- Test Wavelength： 1310-1550 nm

- Required Value：<0.2 dB

ITEM	1X2	1X4	1X8	1X16	1X32	1X64	2X2	2X4	2X8	2X16	2X32
Operating Wavelength(nm)	1260~1650
Insertion Loss (dB) Max.	≤4.6	≤7.5	≤11.0	≤14.0	≤17.0	≤21.0	≤4.5	≤8.0	≤11.7	≤14.7	≤17.9
Loss Uniformity (dB) Max.	≤0.6	≤0.6	≤0.8	≤1.2	≤1.5	≤1.8	≤0.8	≤1.0	≤1.0	≤1.5	≤2.0
PDL (dB) Max.	≤0.2	≤0.2	≤0.2	≤0.3	≤0.3	≤0.3	≤0.2	≤0.2	≤0.2	≤0.3	≤0.3
Return Loss (dB)	UPC >=50; APC >=55
Directivity (dB)	≧55
Fiber Length (m)	1.2±0.1 , (Other Requirements Can Be Provide)
Fiber Type	Corning SMF-28e, (Other Requirements Can Be Provide)
Operation Temperature℃	-40~+85

Hangzhou DAYTAI Network Technologies Co.,Ltd

Hangzhou DAYTAI Network Technologies Co.,Ltd is a high-tech enterprise specializing in research development, production in GEPON products,fiber optic communication (FTTH),Digital TV,Cable TV ,Ethernet Networking. Our company was established in 2013 in Hangzhou City,Zhejiang Province,China. We devote to making research and delveloping the newest equipements in the Telecommunication Industry. Constantly screen the Chinese fiber optic and CATV equipment market in a search of the most efficient product solutions available to satisfy your needs. Our major markets includes Chinese mainland , United States, Canada, Korea, France, Germany, Britain, Turkey, Ukraine, Italy, Australia, India, the Philippines, South Africa ,Indonesia,Mexico, Brazil and other countries.

FAQ

Q1: What's the lead time?
Re: Generally about 15-20 days after order confirmed, it depends one the order quantity.

Q2: Can you send sample?
Re: Yes, but the shipping cost will be paid by you, please contact us for more details.

Q3: What's your payment terms?
Re: 30% in advance, 70% before shipping.

Q4: What's the payment method?
Re: T/T, Western Union, Paypal, etc.

Q5: How to ship products?
Re: DHL, UPS, Fedex, TNT, EMS, air transport, ocean shipping.
