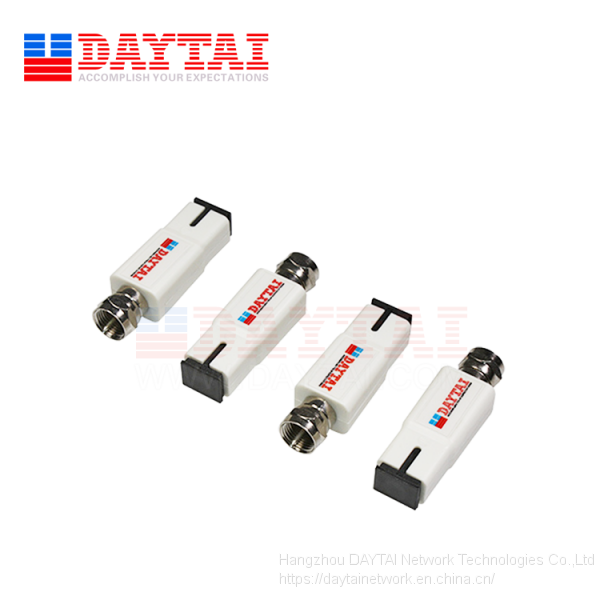

F Male Passive 1 Way FTTH Mini Optical Converter Receiver Node for CATV Digital TV
- Shanghai
- T/T Credit Card PayPal Other
You May Like
-
F Female Passive 1 Way FTTH Mini Optical Converter Receiver Node for CATV Digital TV
-
1550nm Passive FTTH WDM (CATV+PON) Optical Receiver Node for CATV Digital TV
-
Mini Type FTTH Fiber Optical Node Receiver
-
Patch Cord Type Passive 1 Way FTTH Optical Receiver Node for CATV Digital TV
-
Patch Cord Type Mini Passive FTTH WDM (CATV+PON) Optical Receiver Node for Digital TV
-
Passive 1 Way FTTH Fiber Optical Receiver Node for CATV Digital TV
Product Details
| Brand Name | DAYTAI | Place of Origin | China | |
| Model Number | DT-POR-AM/AMWF |
Product Description
Description
Passive 1 Way FTTH Optical Converter for Digital TV,input Optical Power:0~-18dbm,Optical Return Loss:>45db,Optical Receiver Wavelength:1100~1600 nm,Optical Fiber Type:Single Mode,Frequency Range:40-1000MHZ,SC/APC to F Male connector,Dimensions:49*16* 12 mm,Net weight:0.01KG.
Features
⊙No Power Required
⊙Optical Connector: SC/APC
⊙With RF Shielding Protection
⊙Exelent Linearity and Flatness
⊙Small and Cute Design for Easy Handling
⊙PVC Casing ( Actractive customized case colours)
⊙Designed For FTTH (Fiber To the Home Network
⊙Frequency range 40-1000MHz For CATV End-users
⊙Lensed protection and high responsivity PD for more performance
ltem | Description | Remark | ||
Customer Interface | ||||
RF connector | 75Ω F-“Male” connector | |||
Optical Connector | SC/APC | Can be Customized | ||
Optical Parameter | ||||
input Optical Power | 0~-18dbm | Digital TV | ||
Optical Return Loss | >45db | |||
Optical Receiver Wavelength | 1100~1600 nm | |||
Optical Fiber Type | Single Mode | |||
RF Parameter | ||||
Frequency Range | 40-1000MHZ | |||
Flatness | ±0.5db | |||
Output Level | 70 dbuV | 0dbm optical input power | ||
Output lmpedance | 75Ω | |||
C/N | 52 dbc | 0dbm optical input power | ||
Other Parameter | ||||
Power lnput Voltage | 0 VDC | |||
Power Consumption | N/A MA | |||
Dimensions | 49*16* 12 mm | |||
Net weight | 0.01KG | |||
Hangzhou DAYTAI Network Technologies Co.,Ltd is a high-tech enterprise specializing in research development, production in GEPON products,fiber optic communication (FTTH),Digital TV,Cable TV ,Ethernet Networking. Our company was established in 2013 in Hangzhou City,Zhejiang Province,China. We devote to making research and delveloping the newest equipements in the Telecommunication Industry. Constantly screen the Chinese fiber optic and CATV equipment market in a search of the most efficient product solutions available to satisfy your needs. Our major markets includes Chinese mainland , United States, Canada, Korea, France, Germany, Britain, Turkey, Ukraine, Italy, Australia, India, the Philippines, South Africa ,Indonesia,Mexico, Brazil and other countries.
FAQ
Q1: What's the lead time?
Re: Generally about 15-20 days after order confirmed, it depends one the order quantity.
Q2: Can you send sample?
Re: Yes, but the shipping cost will be paid by you, please contact us for more details.
Q3: What's your payment terms?
Re: 30% in advance, 70% before shipping.
Q4: What's the payment method?
Re: T/T, Western Union, Paypal, etc.
Q5: How to ship products?
Re: DHL, UPS, Fedex, TNT, EMS, air transport, ocean shipping.
