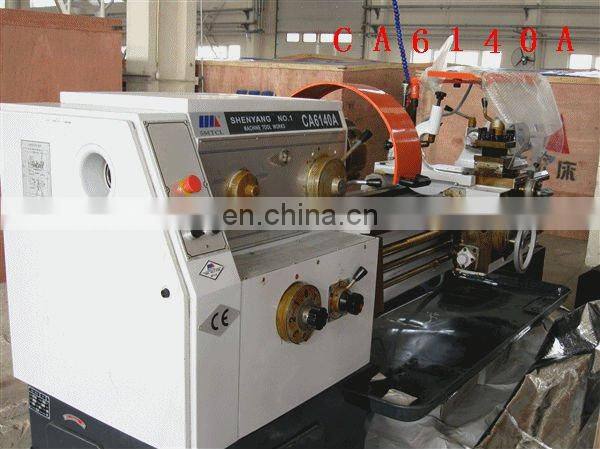

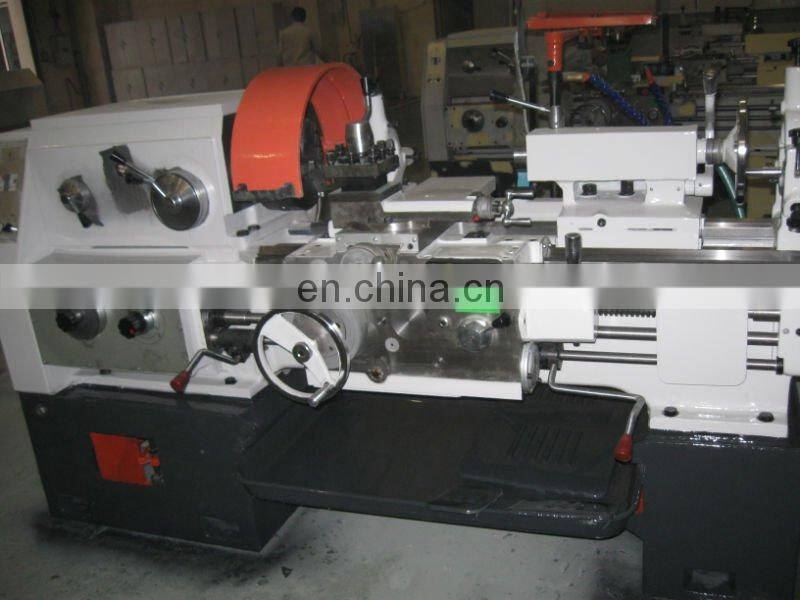

New Fashion Metal Lathe

FOB Price

US$ 1 - 100,000 / Set

1 Set(Min. Order)

Port Dalian
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	SMTCL	Place of Origin	Liaoning, China
Model Number	CA6140A(400*750mm)	After-sales Service Provided	Overseas service center available
Condition	New

Product Description

Lathes of this kind are suitable for fuming intemal, external and cylindrical surfaces as well as other rotary surfaces. They can be used for turning different metric, whitworth, module and diametral threads and can also be used for performing reaming and broaching oil grooves etc.
structure features:
The bed is wider than that of the common ones, also with high rigidity, as the surface of the bedways is hardened by medium frequency induction, therefore, it is very durable.
The lathe is very convenient and concentrated to operate with quick movement structure on the slides.
The lathe also exceeds others in structure and delivery rigidity, as well as efficiency, and its suitable for cutting under high speed. In addition, it also has a big spindle bore and complete accessories.

Specifications:

item	unit	specification
model number		CA6140
Max swing diameter over bed	mm	400
Max swing diameter over carriage	mm	210
Distance between two centers	mm	750
Spindle bore	mm	527680
Spindle nose		A6C8D8
width of bedways	mm	400
hardness of bedways	RC	52
spindle speed range	r/min	10-1400
feed range(standard)	mm/r	0.08-1.59
feed range(fine feeding)	mm/r	0.028-0.054
feed range (bulk feeding)	mm/r	1.71-6.33
Metrical thread range	mm	1-192
whitworth thread range	tpi	24-2
module thread range	mm	0.25-48
diametral pitch thread range	DP	96-1
Main motor power	kW	7.5
Machine weight	kg	1990
Dimensions(LWH)	mm	2418×1000×1267
Packed dimensions (LWH)	mm	2550×1260×1760
