Home > Products > Others > 3 Axis Cnc Vertical Milling Machining Center Xk7132 With Automatic Tool Changer
3 Axis Cnc Vertical Milling Machining Center Xk7132 With Automatic Tool Changer
- T/T Credit Card
You May Like
-
Ck6180 China Heavy Duty Gsk Cnc Lathe Machine With 8 Station Electric Turret India
-
Ck6132 Chinese Cheap Horizontal Automatic Chuck Low Cost Cnc Lathe Machine
-
Sm385 2 Spindle 5 Axis Auto Swiss Type Cnc Lathe and Milling Machine
-
TCK46a High Quality Slant Bed Type Cnc Lathe Turning Center With Live Tool
-
VMC850 CNC Bed-type Milling Machine for Sale Automatic CNC Machinery Center
-
VMC1060 CE Certified Vertical 3 Axis Steel Iron Mold Cnc Milling Machine
Product Details
| Brand Name | Lu Young | Place of Origin | Shandong, China | |
| Model Number | XH7132 | |||
| Year | 2018 | Condition | New |
Product Description

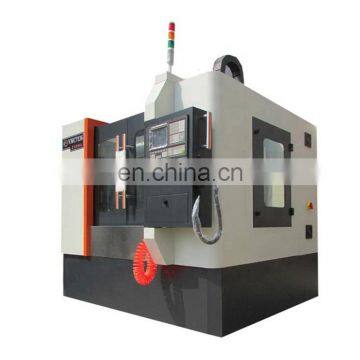

3 axis cnc vertical milling machining center xk7132 with automatic tool changer
3 axis cnc vertical milling machining center xk7132 with automatic tool changer is composed of mechanical equipment and numerical control system. Is an automated machine that is suitable for efficient machining of complex parts. CNC machining center is the world's highest yield, the most widely used one of the CNC machine tools. Its comprehensive processing capacity is strong, the workpiece can be completed after a single processing content, processing accuracy is higher, the middle of the difficulty of the bulk of the workpiece, the efficiency of ordinary equipment is 5 to 10 times, in particular, it can be completed Many ordinary equipment can not be completed processing, the shape of the more complex, high precision single-piece processing or small and medium-sized multi-species production is more applicable. |
Specification of 3 axis cnc vertical milling machining center xk7132 with automatic tool changer :
| Specification | Unit | XK7132 |
| Table size | mm | 1370x320 |
| T-slots (No./width/pitch) | mm | 3x18x80 |
| Longitudinal travel | mm | 770 |
| Cross travel | mm | 450 |
| Vertical travel | mm | 440 |
| Distance between spindle and table surface | mm | 130-570 |
| Table rapid feed speed(X) | mm/min | 4000 |
| Table rapid feed speed(Y) | mm/min | 4000 |
| Rapid feed speed(Z) | mm/min | 3000 |
| Spindle hole taper | --- | BT40 |
| Stroke of spindle quill | mm | 127 |
| Automatic spindle feed | mm/rev | 0.04/0.08/0.15 |
| Spindle speed range | r/min | 43-3225(variable) |
| r/min | 65-4660 (16steps) | |
| Main motor power | KW | 5 |
| Torque of X/Y/Z axis AC servo motor | N.m | 40461 |
| Overall size | mm | 2100×1900×2340 |
| Net weight | kg | 2300 |
Standard Configuration:
1. High strength resin sand casting
2. GSK,KND,SIEMENS OR FANUC CNC Controller system
3. BT40 high speed spindle unit 8000rpm
4. Separate the handwheel
5. Pneumatic broach system
6. Semi- guard
7. Automatic intermittent lubrication
The feature of 3 axis cnc vertical milling machining center xk7132 with automatic tool changer:
1. High precision and high efficiency. Workpieces in a clamping can be completed in a multi-process processing, but also with a tool library, and automatic tool change function.
|
Why choose our 3 axis cnc vertical milling machining center xk7132 with automatic tool changer?
1.Strong strength,The company has 20 years of production experience, rich product range to meet the needs of different customers.
2.Quality product ,Workshop workers skilled and rigorous testing of product quality, strict control of each production process.
3.Direct factory price,provide competitive factory price and save your costs.
4.7×24 hours after-sale service,Any questions, please contact us directly at any time
5.Strong packing,will protect the goods from any possible damage during transit.
6.TRADE ASSURANCE,protect your orders from payment to delivery.
20 years' production experience
The main product of Shandong Luyoung Machinery Co.,Ltd is CNC lathe machine, CNC milling machine, CNC machine centers,CNC swiss type automatic lathe. Annual output is 900sets/ year.
1.More than 20 years of production experience.
2.Exported more than 40 countries.
3.More than 300 staffs in factory.
4.CE and ISO9001 certification .
5.7×24 hours online service.
The products have exported more than 40 countries around the world, please look who choose us:
7×24 hours after-sale service
1. Warranty for one year.
2.Supply 7×24 hours online technology support.
3.Professional solution one by one.
4.Free training for customers online or in our factory.
5.The oversea service is available.
Strong packing will protect the goods from any possible damage during transit
1.Port: Qingdao port or Shanghai port
2.Payment method: T/T, L/C, D/P, D/D etc.
3.Payment: 30% T/T as deposit, 70% balance shall be paid before shipment.
4.Delivery time: 30 days after receive the 30%T/T deposit.
1.Does the 3 axis cnc vertical milling machining center xk7132 with automatic tool changercan be customized?
| Of course, if our standard configuration can not meet your needs, please tell us that we redesign and produce the machine to meet your needs. |
2.How long is the warranty period of the cnc lathe machine?
| Warranty period is one year, if parts damage within one year, we will send free of charge. Free online training or factory training to ensure that you can use our products properly. We can offer overseas paid installation, commissioning service. |
3.What time is your work time?
| We work online 24 hours a day, offer quotes and technical support at any time. |
4.Do you use the Trade Assurance on Alibaba?
| Yes, all of the order use this.Can guarantee the quality of the product and your payment. |
5.How to get a quote?
| Please tell us the model you need or send us drawings of the workpiece, then we can recommend the most suitable products to you. We will give you the best offer within 24 hours. |
How to contact us? My mobile/whatsapp: +86 18660853235; QQ:3494630853
|
