Home > Products > CNC Lathe Machine > CK6160 Cheap Metal Lathe Machine Parts and Function Cnc Cutting Machine

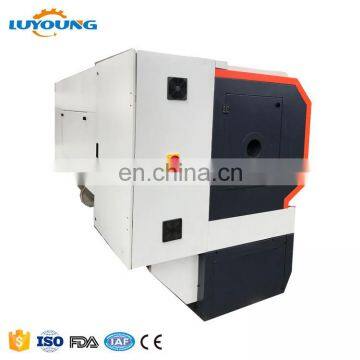

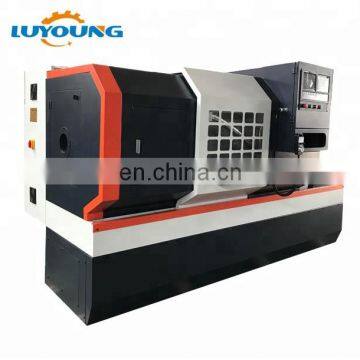

CK6160 Cheap Metal Lathe Machine Parts and Function Cnc Cutting Machine
- T/T Credit Card
You May Like
-
CK61100 Large Spindle Bore 3000mm Heavy Duty Horizontal Cnc Lathe Machine
-
CK6130 Specification Cnc Metal Cutting China Cnc Lathe Machine
-
CK6150A New Lathe Equipment Chinese Metal Price Cnc Lathe
-
CK61100 Custom Cnc Heavy Duty Lathe Machine Cutting Tool Holder
-
CK680 Competitive Price Cnc Lathe Tool Turret Vertical Turning Lathe
-
CK6130 Small Metalworking Lathe Automatic Cutting Machine
Product Details
| Brand Name | Luyoung | Place of Origin | Shandong, China | |
| Model Number | CK6160 | |||
| Condition | New |
Product Description
CK6160 cheap metal lathe machine parts and function cnc cutting machine
| CK6160 cheap metal lathe machine parts and function cnc cutting machine | ||
| Item | CK6160 | |
| Max. swing dia. over bed | 600mm | |
| Max. swing dia. over cross slide | 400mm | |
| Max. processing length(mm) | 800mm | 1500mm |
| Dia. of spindle hole | 130mm | |
| Spindle speed | 150-2500rpm | |
| spindle taper | MT6 | |
| Tool holder | 4 station electric tool post(optional 6/8staion electric turret) | |
| Tool bar section | 25x25 | |
| Main motor power | 11kw | |
| X/Z axis fast feeding speed | 5/10 m/min | |
| X/Z axis position accuracy(mm) | 0.01/0.015 | |
| X/Z-axis repeatability(mm) | 0.012/0.013 | |
| Clamping | 3 Jaw Manual Chuck(optional pnematic or hydraulic chuck) | |
| Tailstock sleeve dia. | 75mm | |
| Tailstock sleeve travel | 140mm | |
| Tailstock taper | MT5 | |
| Dimension | 3600*1300*1680mm | |
| Weight(kg) | 3000 | |
| Standard configuration: | Optinal configuration: | |
| GSK928 CNC Controller | Siemens,Fanuc cnc controller system | |
| pneumatic chuck,hydraulic chuck | ||
| 3 Jaw Manual Chuck | pneumatic tailstock,hydraulic tailstock | |
| 4 station electric tool post | 6 staion tool turret,8staiton tool turret | |
| Auto lubrication system | Auto feeder system | |
| lighting system | Chip conveyor | |
| cooling system | ||
1.The CK6160 cheap metal lathe machine parts and function cnc cutting machine adopts the traditional horizontal lathe layout and the overall design.CNC lathe driven by microcomputer control and servo motor.
2.Characterized by easy operation, compact structure, beautiful appearance, stable performance, high accuracy and low noise.
3.The CK6160 cheap metal lathe machine parts and function cnc cutting machine ,the spindle, brake and translocation tool holder of the servo motor, the lathe by sending and receiving signals.
4.The independent main axis can control the variable frequency motor speed to be infinitely variable speed by inverter, and the feed speed can be arbitrarily set, thus realizing automatic processing controlled by microcomputer.
5.The CK6160 cheap metal lathe machine parts and function cnc cutting machine can be operated automatically and manually, with semi-automatic control of knife, tool compensation and gap compensation, equipped with hardware, software limit and other functions.
6.The CK6160 cheap metal lathe machine parts and function cnc cutting machine can process cylindrical surface, cone surface, circular arc surface, cut slot and cut off, and can also process the direct thread, taper thread and so on.The lathe can be used to increase hydraulic chuck, hydraulic tail frame and other numerical control system according to user's requirements.
Shandong Lu Young Machinery Co., Ltd is a modern and high- tech company which is a professional manufacturer of CNC LATHE, CNC MILLING, CNC MACHINE CENTER . With 50000sqm workshops and offices, we have more than 20 years experiences in cnc machine research and production.Our products all pass CE Certification,and our factory pass ISO9001Quality Certification.Our machines have been exported more than 40 countries and have been well received by our customers.we welcome all customers and friends come to visitour factory! Regarding the technical force, we have the most professional research and development staff, who can meet all different requirements on.
We have 20 years of accumulated experience in CNC lathe and CNC milling machine,so our products has been exported more than 40 countries. We have professional engineers who are responsible for every product we export. Because of our high degree of professionalism , good quality, factory price and the best service,more and more customers choose us, so our export volume of products increased by 20 percent compared with last year.

1.Company strength.We have 20 years experiences for cnc machine profuction.
2.Friendly price.We supply friendly factory price to help you establish your advantage in your local market
3.Training for free. We can supply training for you in our factory for free.Oversea service also is OK.
4.Relationship.We will establish long-term relationship with our clients.
1.Professional technogoly service team.we have professional technogoly service team , we supply one by one solution design for your request.
2.Training for free and oversea service.we can supply training for your in our factory for free.Oversea service also is OK.
3.7*24 hours online sales.We supply 7*24 hours online sales and after sales service for free.And we welcome customers to visit our workshop and products at any time.
4.Replacement parts for free.We supply replacement parts for free if the machine is proved defective within 12 months.
The packaging and shipping of CK6160 cheap metal lathe machine parts and function cnc cutting machine:
On the mechanical packaging, we use the fumigation-free plywood.Fumigation-free wooden keel support bar is adopted by the export of LVL material, wood is made from multi-layer plywood custom-made, multi-layer plywood and LVL material are after high temperature sterilization and glue them into a wooden . The wooden box itself does not have any log, so it does not need to be fumigated to be exported directly.The goods are well packed in good condition and can prevent the breakage and leakage of the contents during the shipping process.We will adopt Marine transportation to prevent the turbulence and vibration of the transportation process from causing damage to the goods and ensure that the goods are safe and sound when delivered.
Our company has exported all kinds of mechanical products to more than 40 countries.We provide suitable products for different countries and provide the best and most thoughtful service for our customers.
We attended a lot of mechanical trade fair, in the fair, we talk about products with customers, and invite customers to visit our production workshop, understanding of mechanical manufacturing process, thus expanding the overseas market. If customers have special product requirements, we can also customize them according to customer needs.
1. What’s the term of payment ?
As usual, Our term of payment is:
30% downpayment by T/T (Telegraphic transfer ) in advance.
70% by T/T before shipment.
Besides, We can also accept term of payment by irrevocable letter of credit at sight. D/P or D/A.
2. What’s the quality warranty ?
We will supply standard parts and accessories with our machines when shipment. Within one year after receiving our machines, In the right operation, If there are any damaged parts or accessories, We will replace them by air-mail or express mail immediately free of charge.
3. What’s the delivery time ?
We will supply goods to you within 1 months after getting your 30% downpayment by T/T according to the different products.
4. What’s the charge of installing and commissioning ?
For some machines, It need our technician to go to your local site and help you install and commission machines. At the same time, Our technician will train your workers. It will take 7-15 days for different machines. The return air-tickets, accommodation, food, salary ( USD60.00/day for every technician ),etc will be born by the end-user.
