Numerical Control Full Form of Cnc Lathe Machine
- Qingdao or Shanghai
- T/T Credit Card
You May Like
Product Details
| Brand Name | Lu Young | Place of Origin | Shandong, China | |
| Model Number | Ck6432 | After-sales Service Provided | Engineers available to service machinery overseas | |
| Condition | New |
Product Description
numerical control full form of cnc lathe machine
| The numerical control full form of cnc lathe machine ses the design of mechanical and electrical integration, generous appearance beautiful, reasonable structure, easy operation. The machine adopts the integral bed foot, the stability is better. Wear-resistant cast iron after ultra-audio quenching treatment, to ensure the accuracy of the equipment and stability. The fully enclosed cover ensures that a drop of water does not leak out of the machine. |
Specification of numerical control full form of cnc lathe machine :
ck6432 cnc lathe machine | ||
Item | CK6432 | |
Max. swing dia. over bed | Φ360mm | |
Max. swing dia. over cross slide | Φ150mm | |
Max. processing length(mm) | 450 | 700 |
Dia. of spindle hole | Φ60mm | |
Spindle speed | 150-2500rpm | |
spindle taper | MT6 | |
Tool holder | 4 station electric tool post(optional 6/8staion electric turret) | |
Tool bar section | 20x20 | |
Main motor power | 4kw | |
X/Z axis fast feeding speed | 8/10 m/min | |
X/Z axis position accuracy(mm) | 0.01/0.015 | |
X/Z-axis repeatability(mm) | 0.012/0.013 | |
Clamping | 3 Jaw Manual Chuck(optional pnematic or hydraulic chuck) | |
Tailstock sleeve dia. | 60 | |
Tailstock sleeve travel | 100mm | |
Tailstock taper | MT4 | |
Dimension | 1660X1400x1700 | |
1940x1400x1700 | ||
|
| |
Weight(kg) | 1250 | 1450 |
Standard configuration: | Optional configuration: | |
GSK928 CNC Controller | Siemens,Fanuc cnc controller system | |
Servo motor for X,Z axis, Servo driven | pneumatic chuck,hydraulic chuck | |
3 Jaw Manual Chuck | pneumatic tailstock,hydraulic tailstock | |
4 station electric tool post | 6 staion tool turret,8staiton tool turret | |
Auto lubrication system | Auto feeder system | |
lighting system | Chip conveyor | |
cooling system | ||
Optional configuration of numerical control full form of cnc lathe machine
Compared with the traditional lathe,the processing performance of numerical control full form of cnc lathe machine
1.Machining accuracy of higher parts. Due to the rigidity of the lathe, the manufacturing precision and the high precision of the knife, and it can be timely and accurate manual compensation, it can even compensate for automatic. So it can process high-precision parts.
2.Processing parts with small surface roughness, as it has a function of constant linear speed cutting.
3.Machining complex shape parts. CNC lathes have the function of circular interpolation, it can also be used to describe the curve, but also can process the list curve.
4.Processing with some special types of threaded parts. CNC lathes have the function of cutting thread. The general use of hard alloy blade, and can use a higher speed, so the turning out of the thread high precision, smooth surface.
5.Processing ultra-precision, ultra-low surface roughness parts.Disk, video recorder head, laser printer multi-faceted reflector, copier rotary drum, camera and other optical equipment, lenses and molds, and contact lenses, etc., they are suitable for processing in high-precision, high-performance CNC lathes.

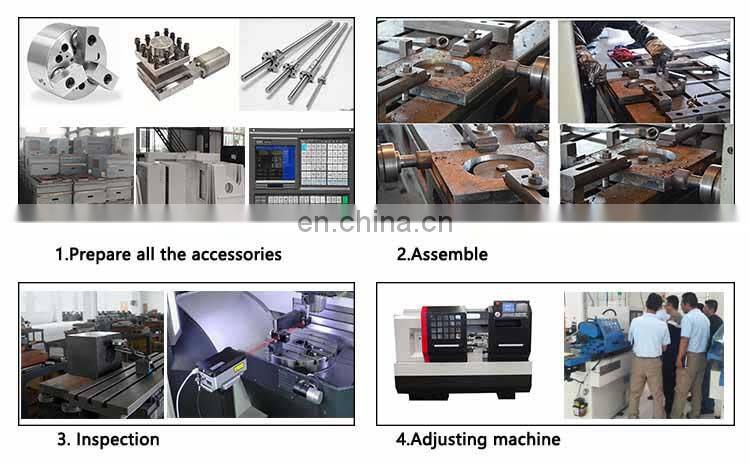

Production Flow for numerical control full form of cnc lathe machine
1.Prepare all the parts of the CK6432, for example casting, housing, CNC control system, ball screw,chuck, all the accessories from domestic or foreign famous brands.
2. Assemble all the accessories, all the assembly workers have many years of industry experience.
3. Test equipment, the use of advanced imported laser interferometer. Each process has been rigorously tested.
4. Commissioning, after finish the lathe,it need run more than 48 hours.
Application of our cnc lathe machine:
20 years' production experience
The main product of Taian Luyoung Machinery Co.,Ltd is CNC lathe machine, CNC milling machine, CNC machine centers,CNC swiss type automatic lathe. Annual output is 900sets/ year.
1.More than 20 years of production experience.
2.Exported more than 40 countries.
3.More than 300 staffs in factory.
4.CE and ISO9001 certification .
5.7×24 hours online service.
Who choose Lu Young?
Customer's feedback:
CK0640 mini cnc lathe CK6432 small cnc lathe CK6130 small cnc lathe machine
CK6132 small cnc lathe CK6136 small cnc lathe CK6140 cnc lathe machine
7×24 hours after-sale service
1. Warranty for one year.
2.Supply 7×24 hours online technology support.
3.Professional solution one by one.
4.Free training for customers online or in our factory.
5.The oversea service is available.
Strong packing will protect the goods from any possible damage during transit
Packaing information of CK6432 assembly 2 axis cnc lathe machine price in bangalore
| Packaging material | Non-fumigation plywood crate |
| Base plate | Steel |
| Packaing size (mm) | 1760×1500×1800 |
| packaging feature | 1.Non-fumigation packaging, we use seaworthy plywood. 2. Steel base plate, it is stronger 3-5 times than normal plywood base plate. 3.Water-proof and damp proof, water resistant film wraped all the machine. 4.Fully sheathed case,prevention of collision and keep the goods intact. |
FAQ
1.Does the CK6432 assembly 2 axis cnc lathe machine price in bangalore can be customized?
| Of course, if our standard configuration can not meet your needs, please tell us that we redesign and produce the machine to meet your needs. |
2.How long is the warranty period of the cnc lathe machine?
| Warranty period is one year, if parts damage within one year, we will send free of charge. Free online training or factory training to ensure that you can use our products properly. We can offer overseas paid installation, commissioning service. |
3.What time is your work time?
| We work online 24 hours a day, offer quotes and technical support at any time. |
4.Do you use the Trade Assurance on Alibaba?
| Yes, all of the order use this.Can guarantee the quality of the product and your payment. |
5.How to get a quote?
| Please tell us the model you need or send us drawings of the workpiece, then we can recommend the most suitable products to you. We will give you the best offer within 24 hours. |
6.How to contact with you?
My mobile/whatsapp: +86 18660853235; QQ:3494630853
|
