Supply Diagonal Band Sawing GHZ-280 Can be Cut at Any Angle Sawing
- T/T Credit Card
You May Like
Product Details
| Brand Name | Steel horse | Place of Origin | Shandong, China | |
| Model Number | GHZ-280 | After-sales Service Provided | Engineers available to service machinery overseas | |
| Condition | New |
Product Description

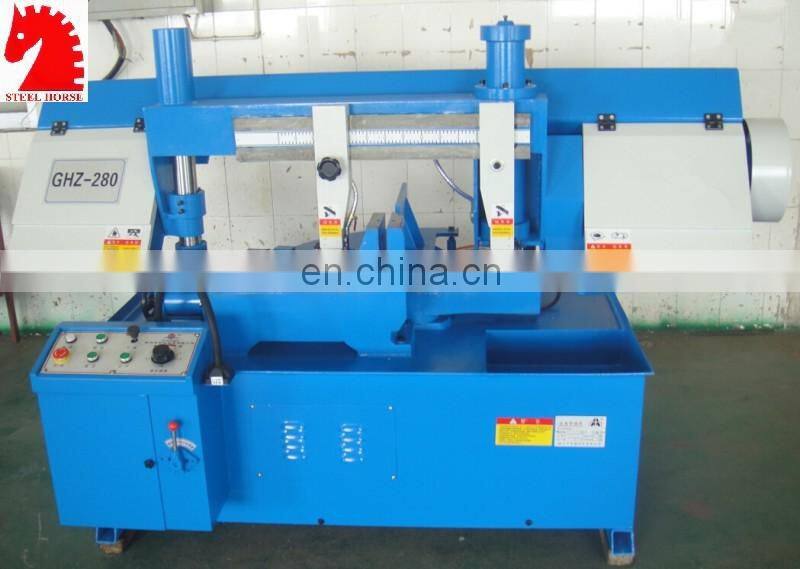

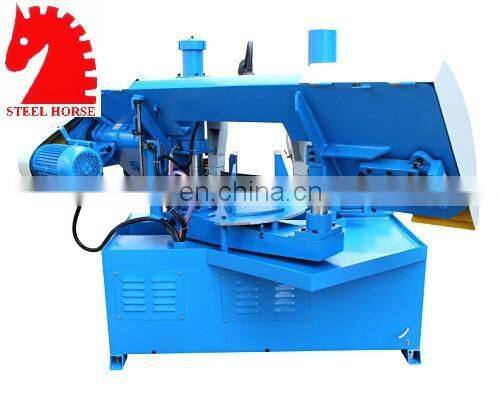

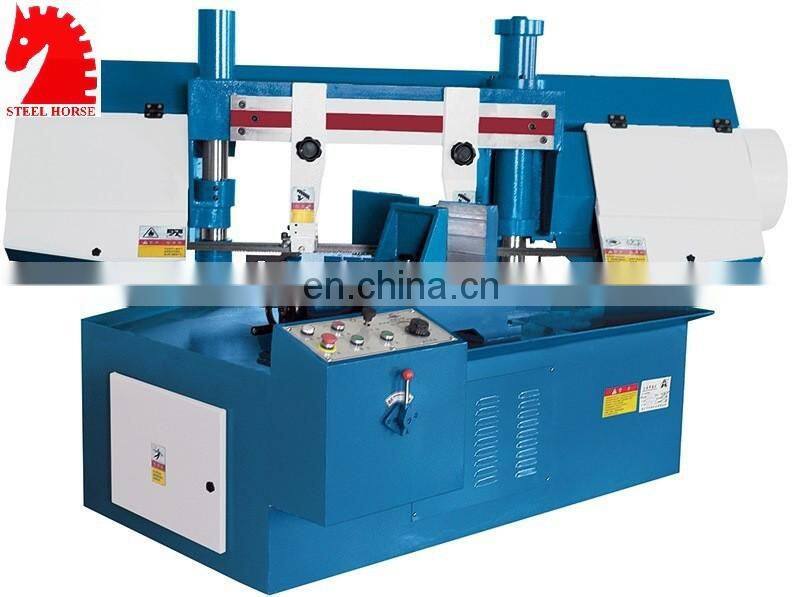

Supply diagonal band sawing GHZ-280 can be cut at any angle sawing
1) Double-column structure, vertical lift, high stability
2) adjustable angle 0 ° ~ 45 °, simple operation
3) cutting speed hydraulic control, variable speed
4) workholding hydraulic clamping, easy to operate
5) can be customized to the three hydraulic clamping device
band sawing GHZ-280 detail data
Model |
| GHZ-280 | GHZ-380 |
Cutting range | mm | 280-280x280(90° ) | 380-380x380(90°) |
Saw blade size | mm | 3850x27x.09 | 4650x34x1.1 |
Blade speed | m/min | 27,45,69 | 27,45,69 |
Main motor power | kw | 2.2 | 3 |
Hydraulic motor power | kw | 0.55 | 0.75 |
Coolant pump motor power | kw | 0.04 | 0.04 |
Overall dimension | mm | 1900x1400x1500 | 2300x1500x1600 |
N.W. | kg | 800 | 1000 |
Steel Horse machine,is a collection of machine development,testing,production,
sales and integration of joint-stock enterprises.Enterprises with an annual output
of 20,000 sets of various types of machine.Our company was founded in 1990,
in 1995 we shareholding system reform,found "Steel Horse Machine" brand.
With our "Steel Horse Machine" Twenty years in the machinery and equipment
manufacturing industry accumulated abundant capital and the introduction of
foreign advanced technology,in 2007 we spent a lot to create "White Horse CNC"
brand.Enterprise products have been metal processing, automotive,military,aerospace
and other key industries widely used.
Steel Horse machine"quality first,faith forever" as the purpose,we willing to cooperate
sincerely with friends at home and abroad for common development.
