90 Degree Table Swivel Horizontal Milling Machine (Hum Series)
- Qingdao
- T/T Credit Card
You May Like
-
Supply XQ6232 Universal Swivel Head Mill/drill Machine
-
XQ6232 Universal Swivel Head Vertical Milling Machine Taiwan
-
Cost-effective VMC320 4 Axis Cnc Milling Machine
-
Cost-effective VMC320 Cnc Milling Center
-
LC5 Internal Horizontal Keyway Broaching Machine
-
Cheap Price BC6063-60100 Metal Planer Machine
Product Details
| Brand Name | Steel horse | Place of Origin | Shandong, China | |
| After-sales Service Provided | Engineers available to service machinery overseas | Condition | New |
Product Description

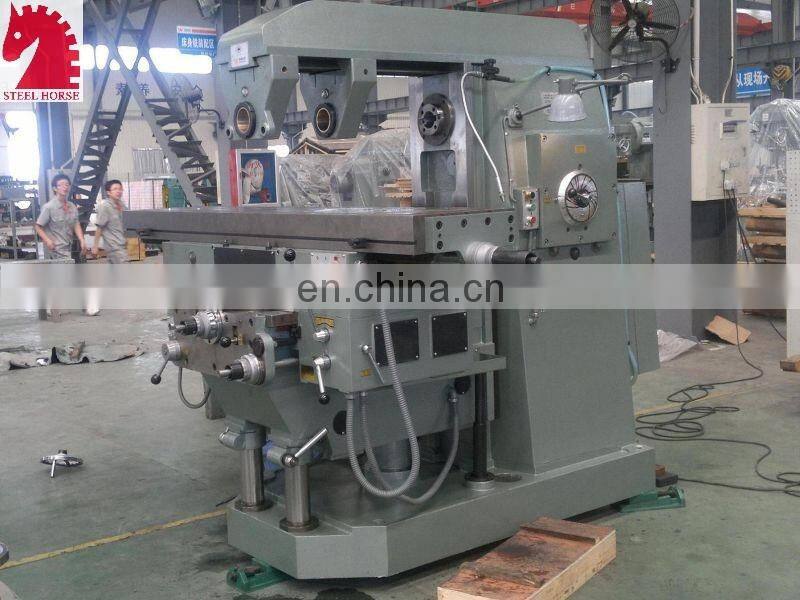

90 Degree Table Swivel horizontal milling machine (Hum Series)
Main characteristics and application:
Universal knee-type milling machine is suitable for milling flat,inclined face,angle surface,slots by employing disc cutters,angular cutters,formed cutters and face metal milling cutter.When mounted with the index,the machine will be able to perform milling operations in gears,cutters,helix groove,cam and tub wheel.
The longitudinal,cross and vertical movements of the table can both be operated by hand and power,and it can be rapidly moved.Working table and slide ways adopted quality cast hardened ensure high accuracy.
Model | Unit | HUM32A | HUM32A*16 | HUM42 | HUM32 | HUM42A |
Table size | mm | 320*1320 | 320*1600 | 420*1800 | 320*1320 | 425*2000/2500 |
Longitudinal travel X | mm | 800/780 | 1024/1000 | 1200/1180 | 700/680 | 1250/1600 |
Cross travel Y | mm | 300/280 | 300/280 | 360/350 | 225/240 | 400 |
Vertical travel Z | mm | 410/400 | 410/400 | 460/450 | 410/390 | 400 |
Feed speed steps |
| 18 | 18 | 18 | 18 | 18 |
Feed speed ranges:Longitudinal X | mm/min | 15-750 | 15-750 | 22.5-1180 | 23.5-1180 | 10-1250 |
Cross Y | mm/min | 15-750 | 15-750 | 22.5-1180 | 23.5-1180 | 10-1250 |
Vertical Z | mm/min | 5.7-280 | 5.7-280 | 8.6-420 | 8-394 | 2.5-315 |
Min.distance between spindle center to table | mm | 235-535 | 235-535 | 30-480 | 30-350 | 70-470 |
Spindle speed steps |
| 18 | 18 | 18 | 18 | 20 |
Spindle Speed ranges | kw | 30-1500 | 30-1500 | 30-1500 | 30-1500 | 18-1400 |
Main motor power | kw | 7.5 | 7.5 | 11 | 7.5 | 11 |
Overall size | cm | 232*179*172 | 232*202*209 | 243*226*194 | 229*177*179 | 277/327*253*195 |
Net weight | kg | 3300 | 3350 | 5000 | 2650 | 5050/5200 |
| 1. Our provide oriented after-sales service including the oversea engineers trainning available and also international dealer center for any emergency guidance.We have established worldwide network to guarantee our timely response for your any demand no matter where are you. |
| 2. We welcome engineers from your side to learn the technical design and normal maintenance here,this will help your easy in understanding and helpful if you need to be our dealer. |
| 3. However,don't worry,we have our company own CD/Manual to show you along with the machine.So you can learn this from the existing docments to deepen your knowledge and understanding. |
| 4. Anyhow there are another way is through internet video face to face for machine teaching, because of the high development in internet,the world has become smaller and you can easy contact us if any assistance needed. |
| 5. Through all the ways,we will guarantee the service quality and ensure you will be well helped anytime anywhere. |
Steel Horse machine,is a collection of machine development,testing,production,
sales and integration of joint-stock enterprises.Enterprises with an annual output
of 20,000 sets of various types of machine.Our company was founded in 1990,
in 1995 we shareholding system reform, found "Steel Horse Machine"brand.
With our "Steel Horse Machine" Twenty years in the machinery and equipment
manufacturing industry accumulated abundant capital and the introduction of
foreign advanced technology,in 2007 we spent a lot to create "White Horse CNC"
brand.Enterprise products have been metal processing, automotive,military,
aerospace and other key industries widely used.
Steel Horse machine"quality first,faith forever" as the purpose,we willing to
cooperate sincerely with friends at home and abroad for common development.
1. How about your machine quality?We are worry about the quality. RE: New Fuli is a nature brand in CHINA,through our 30 years research in technology,our design including structure and detailed sercurity and precision has enhanced greatly,and can match all the CE standard or more strict standard.Our machines distribute worldwide to about 50 countries where there are metal plate industry ,there are Brillante machines.And where there are our machines,there are good reputation and terminal user satisfaction. |
2. Whether the machine price can be more discount RE:1.New Fuli always provide high quality machine,as we know ,oversea market is more important and difficult than domestic market because of communication time costing after sales,So always,our machine has enough qaulity standard to make sure the machine can work more than the real warranty period.In this way ,we will save a lot and think in advance for the clients. RE:2. Actually Accurl also think about our price level,we are sure to provide quality=price and pice=quality ,the matched price and acceptable for the clients and durable for our machines.We welcome your negotiate with us and get a good satisfaction. |
3. How about your manufactory in CHINA RE:New Fuli located in Ma'anShan CITY,AnHui province who is the leading area in China and also in the worldwide as the center of the metal plate solution machines,We have worked about 24 years in this area and totally have about 250 staffs.Rich experience in this field with professional technical supporting and oriented service. We welcome your visit to us any time. |
