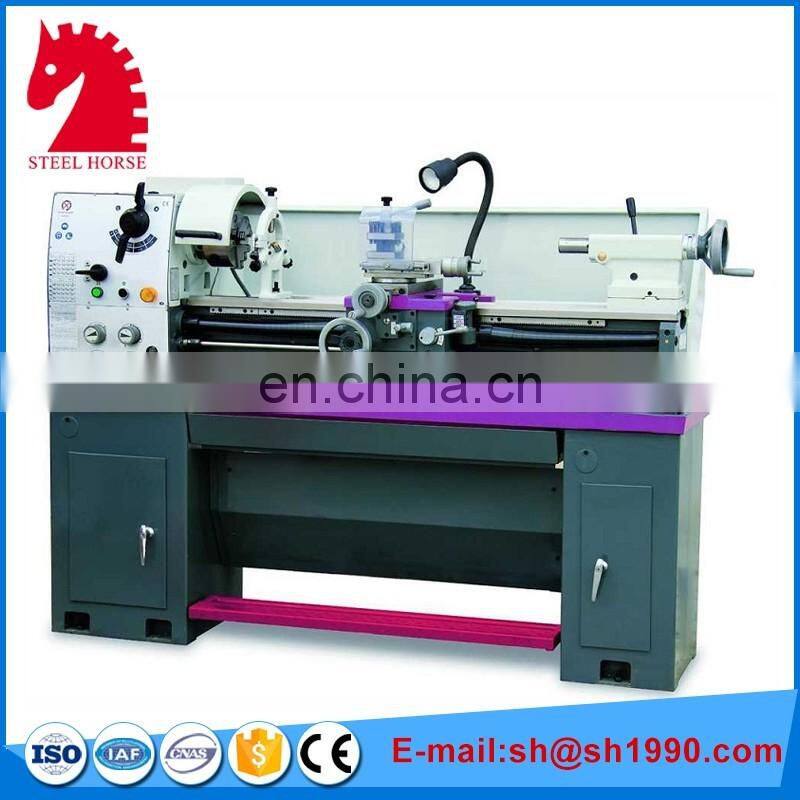

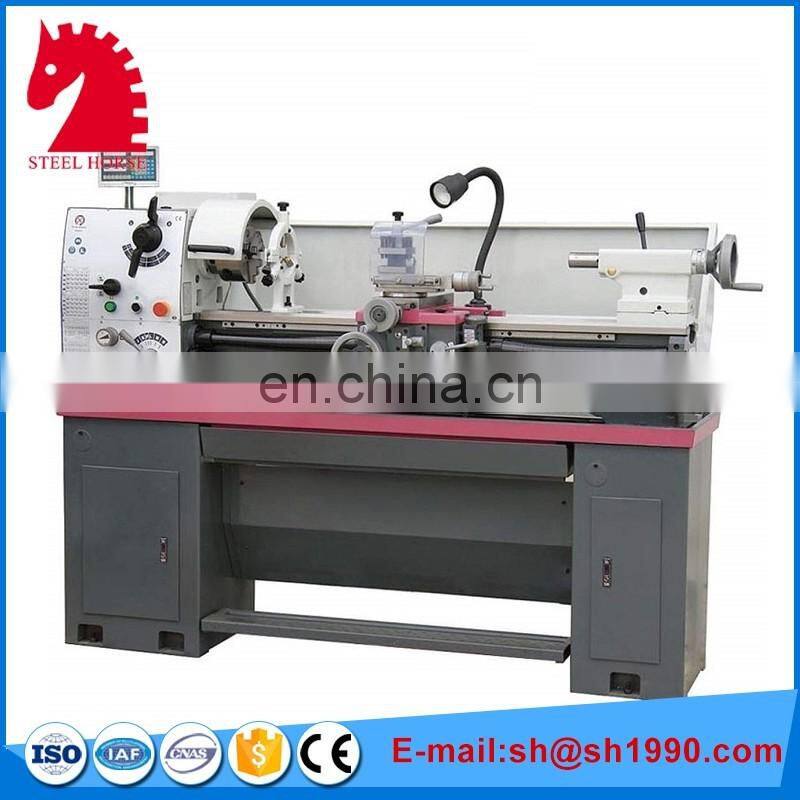

2016 Trending Products 220V 380V China Bench Lathe With Low Price
- Qingdao
- T/T Credit Card
You May Like
-
Hot Sales New Design CQ6280 Bench Lathe Bv20l
-
Hot Sales New Design CQ6280 Small Size Lathe Machine
-
Performance JYP250V JYP290VF Mini Combination Metal Machine Lathe
-
BD11W High Precision 11 X 27 Mini Lathe
-
Small CS6136 2 Axis Cnc Machine Lathe Metal Turning Machining for Sale in Turkey Mazak
-
ZAY7032V ZAY7040V ZAY7045V ZAY7025FG ZAY7032FG ZAY7040FG ZAY7045FG Mini Manual Small Milling and Drilling Machine Price
Product Details
| Brand Name | STEEL HORSE | Place of Origin | Shandong, China | |
| Model Number | CQ6125 | After-sales Service Provided | Engineers available to service machinery overseas | |
| Condition | New |
Product Description
Feature:
Precision ground and supersonic frequency hardened bed ways.
It features with high accuracy and well wear-resisting.

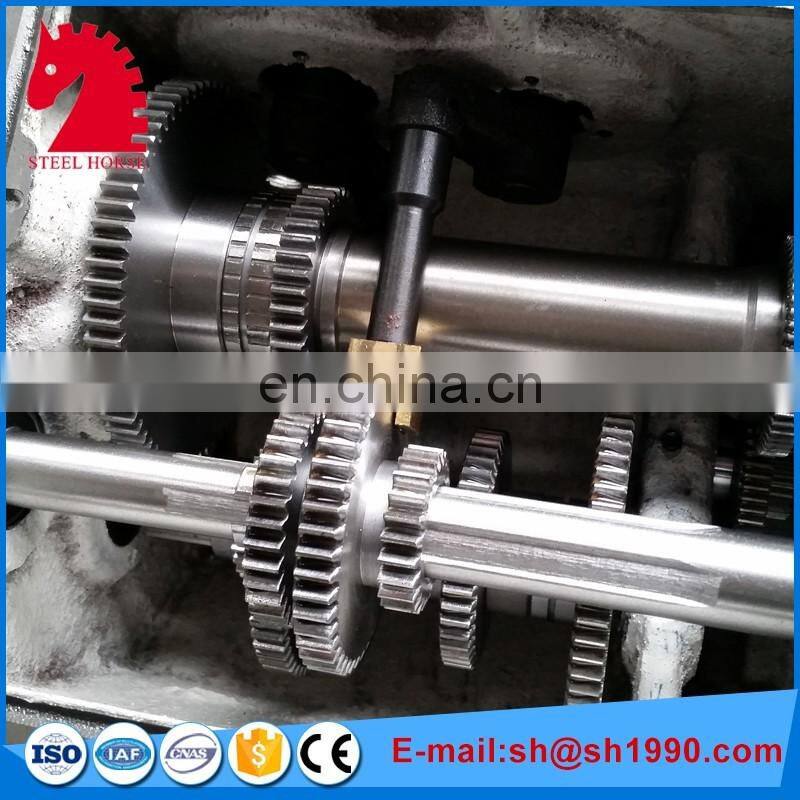

The spindle is supported with precision roller bearing.
Safety magnetic switch or lock key switch.
Convincing Arguments: Quality, Efficiency and Price
- Connecting Voltage is Three Phase 400V or Single Phase 240V ( optional )
- Hardened and ground bed guideways

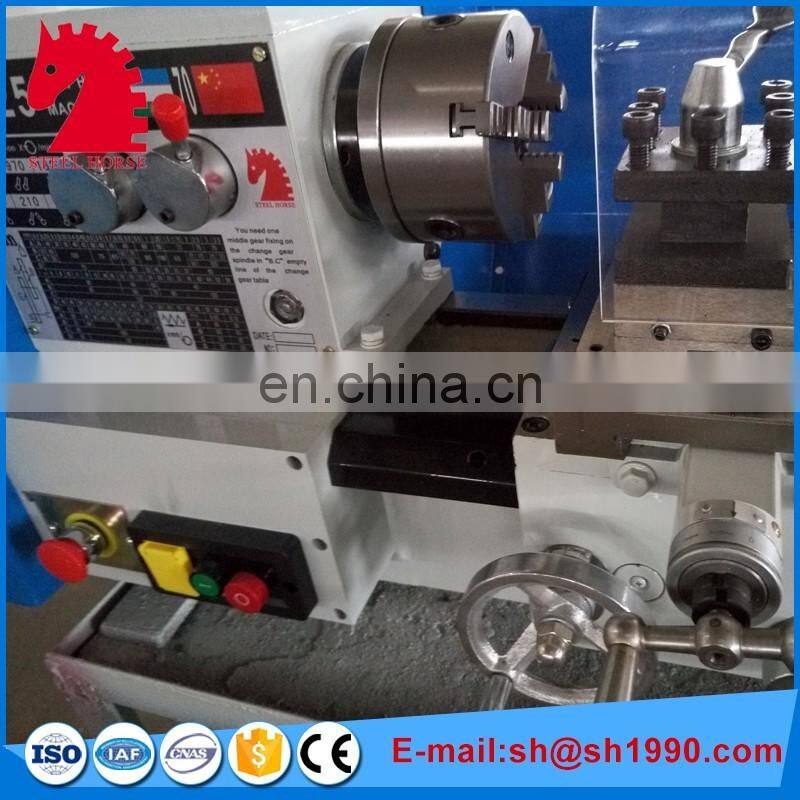

- Camlock spindle seat DIN ISO702-2 NR.4
- Guaranteed true running accuracy of the spindle nose of better than 0.015mm
- Electrical system with Siemens components
- Acceptance certificate and Easy-To-Operate
- All guideways are adjustable and High working accuracy
- Cast-iron bed, double V-guide, hardened and ground
- Clearly-arranged Keyboard
- Made in ISO9001 Factory with CE Safety certification
- Emergency-stop push button, protective motor switch, lockable main switch
- Right-handed /left-handed rotation on the bed slide switchable via stem
- Chip protection at the top slide and Cover for leading spindle
- Machine substructure including tool compartment
| Model | Unit | CQ6120 | CQ6125 | CQ6130 | ||
| Max. swing over bed | mm | 200 | 250 | 300(280) | ||
| Max. swing over cross slide | mm | 115 | 130 | 160 | ||
| Distance between centers | mm | 400 | 550 | 450 | 700 | 650 |
| Spindle bore | mm | 20 | 26 | 26 | ||
| Taper of spindle bore | MT3 | MT4 | MT4 | |||
| Range of spindle speed | r/min | 120~2000 | 115~1620 | 75~1480 | ||
| Range of longitudinal feeds | mm/rev | 0.04~0.2 | 0.05~0.1 | 0.06~1.2 | ||
| Range of metric threads | mm | 0.25~3 | 0.2~3.5 | 0.2~3.5 | ||
| Range of inch threads | TPI | 8~48 | 8~56 | 7~76 | ||
| Max. size of tool shank | mm | 14×14 | 14×14 | 14×14 | ||
| Taper of tailstock bore | MT2 | MT2 | MT3 | |||
| Power of motor | kw | 0.55 | 0.55 | 0.75 | ||
| N.W/G.W | kg | 110/140 | 130/160 | 135/150 | 280/310 | |
| Overall dimensions (L×W×H) | mm | 1100×570×560 | 1250×570×560 | 1100×570×560 | 1460×760×680 | |
| Item NO. | 113015 | 113016 | 133020 | 133021 | 114053 | |
