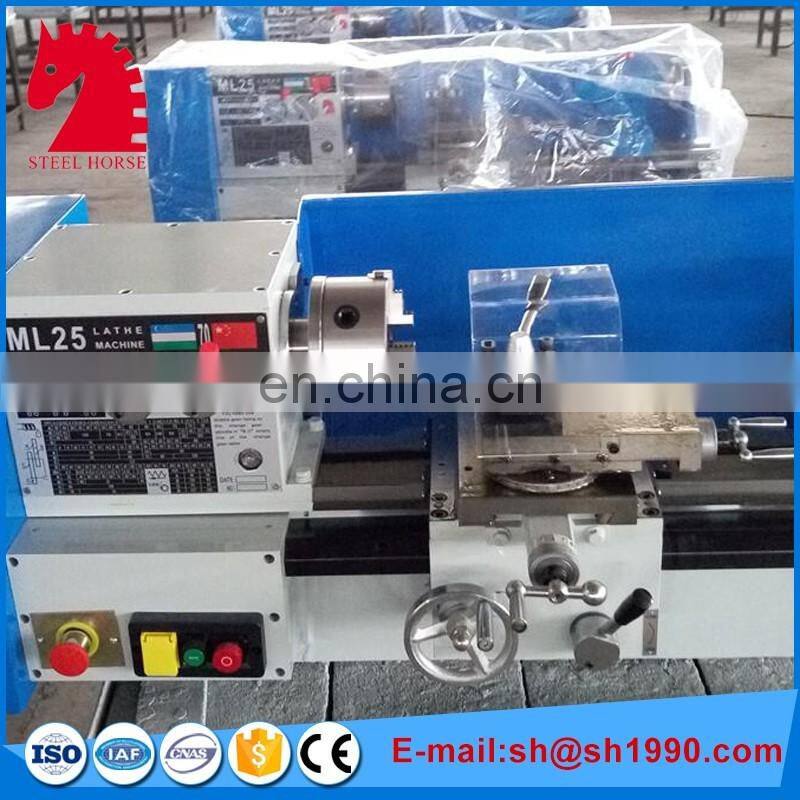

Factory Direct Supply 550,750W Precision Mini Cnc Lathe With Low Price

FOB Price

US$ 800 - 1,200 / Set

1 Set(Min. Order)

Port Qingdao
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	STEEL HORSE	Place of Origin	Shandong, China
Model Number	CQ6125	After-sales Service Provided	Engineers available to service machinery overseas
Condition	New

Product Description

Feature:
Precision ground and supersonic frequency hardened bed ways.
It features with high accuracy and well wear-resisting.
The spindle is supported with precision roller bearing.
Safety magnetic switch or lock key switch.

Convincing Arguments: Quality, Efficiency and Price

- Connecting Voltage is Three Phase 400V or Single Phase 240V ( optional )

- Hardened and ground bed guideways

- Camlock spindle seat DIN ISO702-2 NR.4

- Guaranteed true running accuracy of the spindle nose of better than 0.015mm

- Electrical system with Siemens components

- Acceptance certificate and Easy-To-Operate

- All guideways are adjustable and High working accuracy

- Cast-iron bed, double V-guide, hardened and ground

- Clearly-arranged Keyboard

- Made in ISO9001 Factory with CE Safety certification

- Emergency-stop push button, protective motor switch, lockable main switch

- Right-handed /left-handed rotation on the bed slide switchable via stem

- Chip protection at the top slide and Cover for leading spindle

- Machine substructure including tool compartment

Model	Unit	CQ6120		CQ6125		CQ6130
Max. swing over bed	mm	200		250		300(280)
Max. swing over cross slide	mm	115		130		160
Distance between centers	mm	400	550	450	700	650
Spindle bore	mm	20		26		26
Taper of spindle bore		MT3		MT4		MT4
Range of spindle speed	r/min	120~2000		115~1620		75~1480
Range of longitudinal feeds	mm/rev	0.04~0.2		0.05~0.1		0.06~1.2
Range of metric threads	mm	0.25~3		0.2~3.5		0.2~3.5
Range of inch threads	TPI	8~48		8~56		7~76
Max. size of tool shank	mm	14×14		14×14		14×14
Taper of tailstock bore		MT2		MT2		MT3
Power of motor	kw	0.55		0.55		0.75
N.W/G.W	kg	110/140	130/160	135/150		280/310
Overall dimensions (L×W×H)	mm	1100×570×560	1250×570×560	1100×570×560		1460×760×680
Item NO.		113015	113016	133020	133021	114053
