Used Metal Small CNC Milling Machine VMC550L
- Qingdao
- T/T Credit Card
You May Like
-
Used CNC Horizontal Milling Vertical Machining Tool Automatic Center VMC1060
-
Vertical Cnc Milling Machine Tool Machining Center VMC850L
-
Cnc Turn Mill Lathe Machine VMC1060
-
Cnc Machining Center Vmc-850/chinese New CNC Vertical Machining Center VMC850 for Sale
-
China Hot Sale Universal Metal VMC7032 Vertical Type Milling Machine For Sale
-
Bed-Type CNC Universal Milling Machine Center With Specificaton VMC7032
Product Details
| Brand Name | crystal, Crystal | Place of Origin | Shandong, China | |
| After-sales Service Provided | Engineers available to service machinery overseas | Condition | New |
Product Description

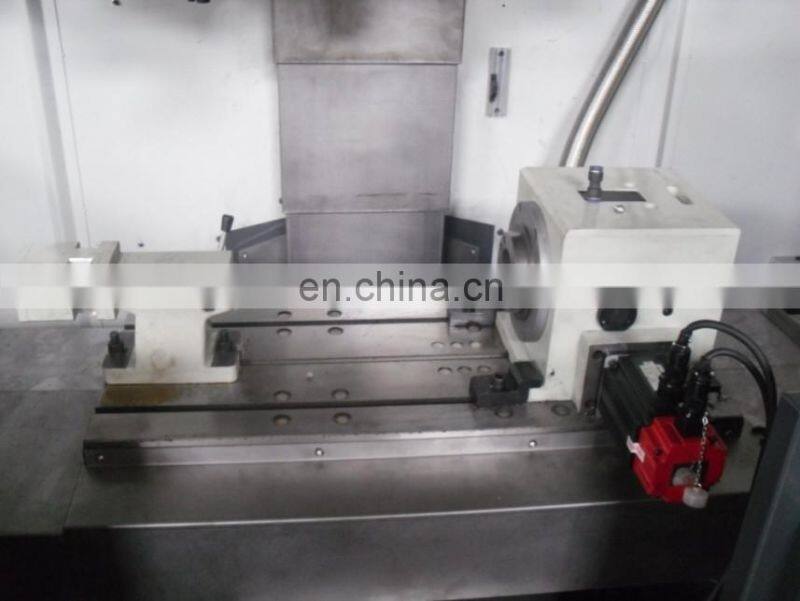

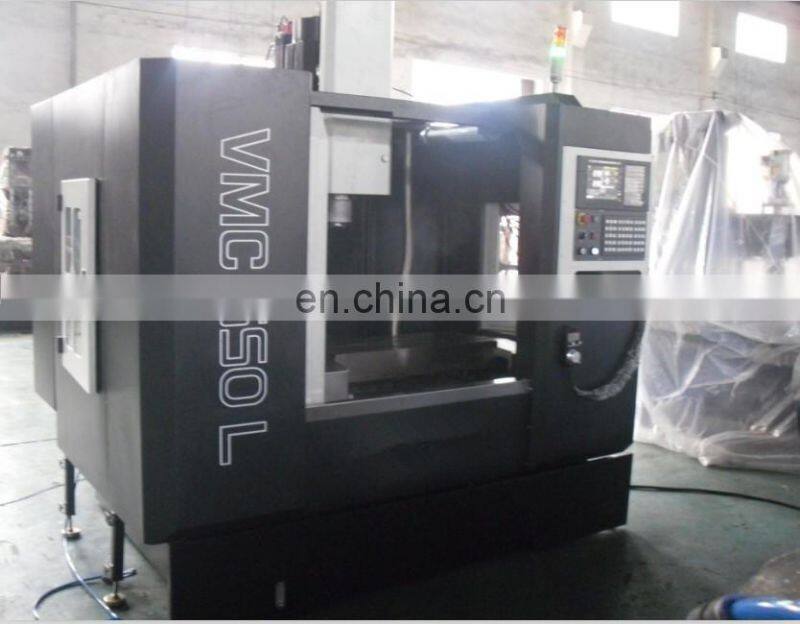

Used Metal Small CNC Milling Machine VMC550L
1. High strength resin sand casting
2. 3-axis Taiwan line rail
3. Siemens 802C control
4. Taiwan high speed spindle unit 8000RPM
5. Separate handwheel
6. Turntable Style ATC, 16 tools
7. Pneumatic broach system
8. Fully-protection cover
9. Automatic intermittent lubrication
10. Adjustable Mat iron and Screw
used mini milling machine VMC550L
Item | VM550L | ||
Spindle | Motor power ( kw ) | 5.5 | |
Distance from Spindle end to table ( mm) | 100 -470 | ||
Distance from Spindle center to column guideway ( mm) | 380 | ||
Speed ( rpm ) | 8000 | ||
Taper of spindle nose (mm ) | BT40 | ||
Table | Area ( mm2) | 320×800 | |
Max . Load ( kg) | 300 | ||
High (mm) | 880 | ||
T- Slot mm | 3-14-100 | ||
Travel | Max. travel of X axis ( mm) | 550 | |
Max. travel of Y axis ( mm) | 350 | ||
Max. travel of Z axis ( mm) | 380 | ||
Feeding | Rapid travel of X axis ( m ) | 10 | |
Rapid travel of Y axis ( m) | 10 | ||
Rapid travel of Z axis ( m) | 8 | ||
Cutting / turning feed( mm /min ) | 1-5000 | ||
Accuracy | Positioning accuracy ( mm ) | ±0.02 | |
Repeatability ( mm) | 0.008 | ||
Tooling | Max. Diameter ( mm ) | 120 | |
Max. Length ( mm ) | 200 | ||
ATC number of tools | 16 tools | ||
The fastest tool change time ( s ) | 6 | ||
Data | Service voltage ( Mpa) | 0.6 | |
Power | V / Hz | 380/50 | |
KVA | 6.5/10 | ||
Machine weight | 2500 | ||
Machine size | 2200×1600×2300 | ||
1.Excellent guarantee and after-sale-service
a. User-friendly English software and detailed videos/CD
b. Free maintenance within 1 year for whole machine except of cnc system which guarantee is 3 years
c. 24-hours technical support by Email or Telephone
2. High quality
The main parts of our machines are exhaustively tested before shipment. You are welcomed to visit our factory.
3. Low Price
We make sure that for same price, our quality is much more excellent.
4.Customized or special design are OK

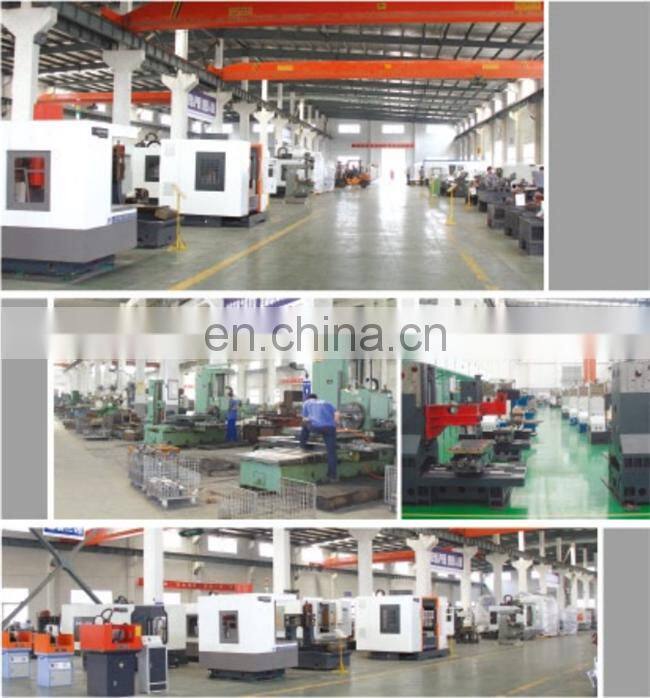

Taian Crystal Machinery Co., Ltd., is a modern and high- tech company which is a professional manufacturer of CNC LATHE, CNC MILLING, CNC MACHINE CENTER . With 5,000sqm workshops and offices, we have more than 15 years experiences in cnc machine research and production.Our machines have been exported more than 40 countries.we welcome all customers and friends to come to our company!
If you are interested in our machine, welcome to contact us at any time and welcome to visit our factory.
