Buy Cnc Lathe Machine Frame Body CK6132A
- T/T Credit Card
You May Like
Product Details
| Brand Name | crystal | Place of Origin | Shandong, China | |
| Model Number | CK6132A | |||
| Condition | New |
Product Description

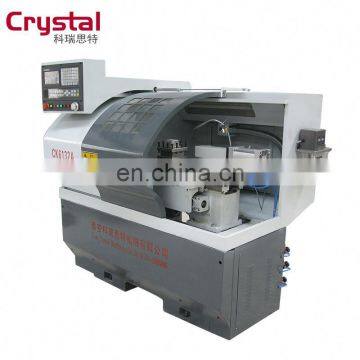

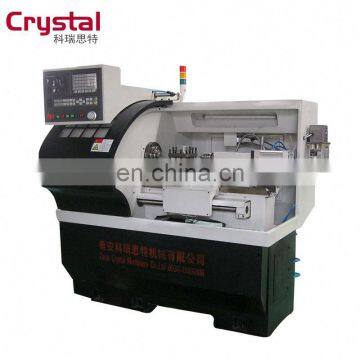

buy Cnc lathe machine frame body CK6132A
This machine is widely used in processing and manufacturing the electrical appliance, instrument industry, automobile, motorcycle, fastener bearings, photographic and film machinery, hardware tools, watches, glasses, stationery, motors, valves and gas pipe and other high precise and complex components. It is the ideal high efficient equipment in the hardware machining industry.
Main Features:
I1. 1. Independent spindle, stepless speed change, high precision, lower noise, saving energy and environmental.
2. High speed and precision bearing, spindle speed 2500rpm, smooth finish good.
Main power is 4 KW. High precision ball screw
3. High stability one- piece machine bed, higher rigidity cast iron.
4. High frequency quenching rail, high hardness and high wear resistance.
5. Frequency conversion stepless speed regulation
6. Integrated automatic lubrication
Specification of CK6132A:
Items | Specifications |
Max. swim over bed | Φ360mm |
Max.swim over carriage | Φ150mm |
Max.length of work piece | 450mm |
Range of spindle speed) | 150-2500rpm |
Spindle bore | Φ40mm |
Spindle drawn tube diameter | Φ31mm |
Taper of spindle bore | MT5 |
stations of tool carrier | 4 |
Max.size of tool post | 20mm×20mm |
Min.setting unit of motor) | (Z) 0.001mm, (X) 0.001mm |
Moving speed of post | (Z) 8 m/min, (X) 4 m/min |
Taper of tailstock quill | MT4 |
Max. range of tailstock quill | 100mm |
Motor power | 4KW |
Packing size (mm) | 1820×1100×1550mm |
Net weight/gross weight | 1000/1200kg |
Standard configurations:
1.3 claw manual chuck
2.Manual tailstock
3.Lighting system, cooling system, automatic lubrication System
4.CNC system: GSK928TD-L
5.4 station tool holder
Optional configurations:
1. CNC System:KND,Fanuc,Siemens
2. hydraulic or pneumatic 3 claw chuck
3. Pneumatic spring collet
4. 6 station tool holder,row tool

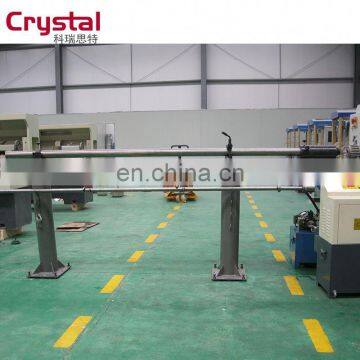

5. Automatic bar feeder
6. hydraulic or pneumatic tailstock


1.Q:Can we pay by L/C?
A:Yes, we can do T/T, L/C etc.
2.Q: What is your payment terms?
A:Our payment term is 30% T/T in advance, 70% T/T before shipment.It is negotiable.
3.Q: What is your delivery time?
A:Usually, one machine takes 15-20 days. IF we have in stock, we can arrange
shipment as soon as we receive the payment.
4.Q: Can we go to your factory and learn how to use the machine?
A:We sincerely welcome you come to our beautiful city. The training is free. It would
be great honor to us.
5.Q:Can you arrange training in our place after we bought your machine?
A:We can arrange oversea training. Buyers will be responsible to the costs.
6.Q:How many Voltage ? How many Phases 1 or 3? How many hertz (Hz)? of your
machine?
A:Our standard is 3 phase, 380V, 50/60Hz. All can be customer made.
7.Q: Do you have CE certification?
A: yes, we have CE certification, machine quality is guaranteed.
8.Q: Is your company a factory or trading company?
A: We are factory and have more than 18 years production experience.
9.Q: How can I get the quotation?
A:You can send the inquiry on , or send email to us. It is better if you can
tell what is your detailed requests. We will reply to you within 1 hour.
10.Q:What is the Control of your lathe? Can I change it to other brand?
A:The standard control of our lathe is GSK. You also can change other controls,
such as FANUC,Siemens and so on.
