Not Vertical Milling Machine and Customized Engraving Milling Machining
- T/T Credit Card
You May Like
-
2019 Year Certification and Customized Engraving Milling Machining
-
CNC 1530 Gantry-Type Milling Machine, High Speed Cnc Milling Machine
-
3 Axis Cnc Milling Machine 2025, Servo Motor Cnc Milling Machine for Metal
-
Gantry-Type Milling Machine High Precision, 1520 China Cnc Milling Machine
-
Cnc Syntec Controller, High Speed Machine Center Cnc
-
Multi Spindle Engraving Machinery 6040, Low Price 3 Axis Cnc Finishing Machine
Product Details
| Brand Name | KaiboCNC | Place of Origin | Zhejiang, China | |
| Model Number | DC-6050A | |||
| Condition | New |
Product Description
Standard features:
1. Cooling system: Oil circulating oil cooler for spindle, cooling workpieces with water or oil in the tank or saponification liquid through or spray nozzle
2. Gantry structure: The double column is whole part, greatly increase machine rigidity.
3. Quality assurance: Each device before leaving the factory, we will test the cue with laser interferometer
4. SYNTEC control system: from Taiwan with high performance and competitive price
5. Servo motor and drives: from Japan with high precision and long life
6. HIWIN linear guide: made from Taiwan,used for linear reciprocating stadium
8. Main axle:1.5kw high precision variable frequency main axle turns machining into a kind of artistic model.
Application:
Processing material: Steel, iron, copper, aluminum, glass, wood and other materials
Option parts:
1.The working range can be customized as per your requests;
2.Control system: Weihong(Syntec or FAGOR) or as your request
3.Can be 3 axis and 4 axis or 5 axis universal.
4.Different linear guide, precision ball screw, servo motor, system components as your request
1.Description of CNC Machine
| Parameter/Model | DC-6040A | |
| Accuracy | Positioning accuracy | 0.01/300mm |
| Repeat positioning accuracy | 0.005mm | |
| Worktable | Worktable size | 625*450mm |
| T-slot size | 4T-12-120mm | |
| Max. load | 150Kg | |
| Travel | X/Y/Z axis travel | 600/400/140mm |
| Gantry width | 705mm | |
| Beam to worktable | 300mm | |
| Spindle nose to worktable | 140-280mm | |
| Feed | Max. feeding speed G00 | 12m/min |
| Max. working speed G01 | 8m/min | |
| X/Y/Z axis motor power | 400/400/400w | |
| Spindle | Spindle motor power | 1.5KW |
| Spindle Max. speed | 24000rpm | |
| Tool holder | ER16(Φ3.17-Φ8) | |
| Common | Power supply and total capacity | 1P/220V/50Hz/5KVA |
| Machine weight | 2000Kg | |
| Dimension | 1810*1550*1870mm | |
| Main parts | Controller | Syntec 21MA/Taiwan |
| AC servo motor(Driver) | Yaskawa/Japan | |
| Spindle inverter | Inovance/China | |
| Linear guide way | Hiwin,PMI/Taiwan | |
| Ball screw | Hiwin,PMI/Taiwan | |
| Electronic hand-wheel | EHDW-BA5S-1 Future/Taiwan | |
| Lubrication system | YET-A2P2 ISHAN/Taiwan | |

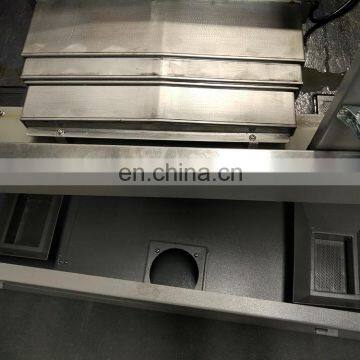

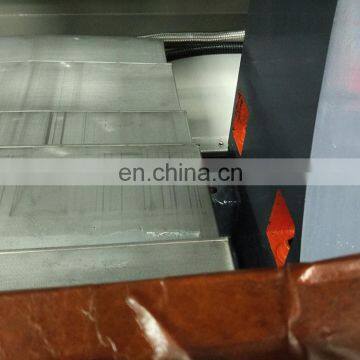

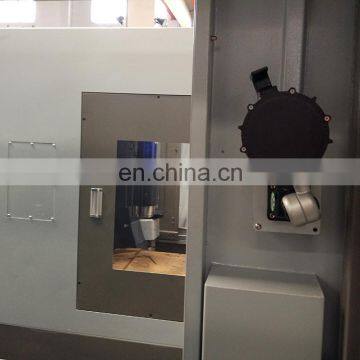

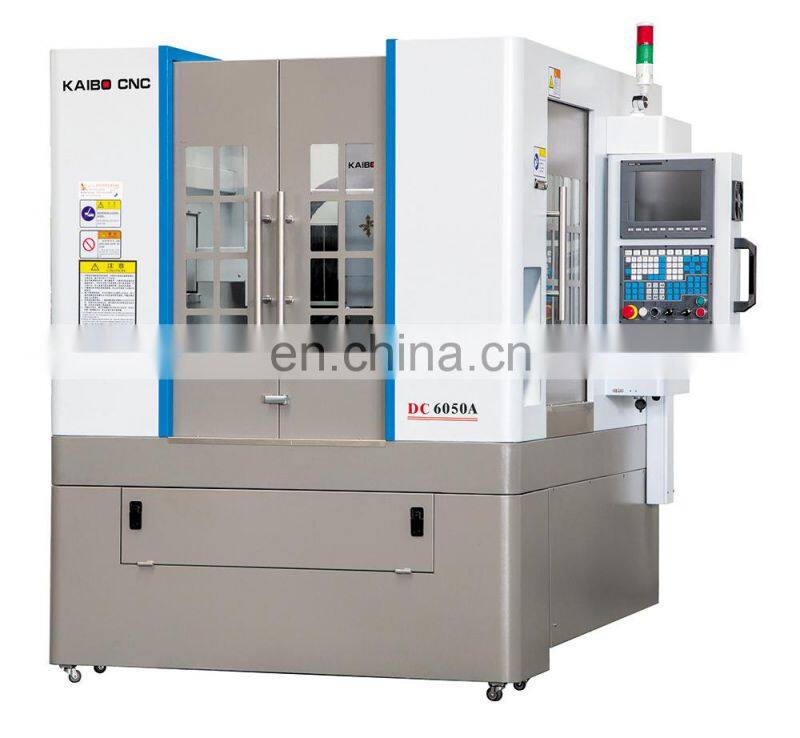

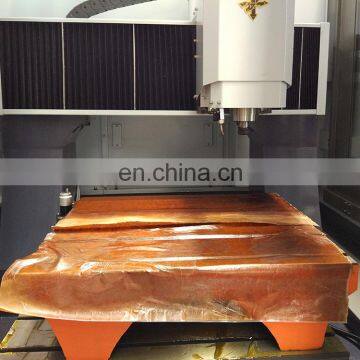

2.Pictures of CNC Machine
Trade Item Of Products
| Transportation | always by sea |
| Payment terms | T/T,L/C At Sight or as your request |
| Package | 1 piece/carton,piece into a master carton |
| Delivery time | by sea,within 45 work days |
Our Best Services For You
1.Technician available for training and installation at customer's company
2.Internet service by sending emails and videos,communicating online or calling
3.We will reply you as soon as possible after we receive your email
4.We can offer both OEM and ODM service according to customers' request
5.If novelties exist in any non-human-made problems,please contact us at your first time and we will offer you a satisfied
solution according to your suitation
About Us
Ningbo Kaibo CNC Machinery Co., Ltd. grew out of Ninghai FEIHE Mechanical Engraving Factory which established in 1994. In 2003, KAIBO CNC officially established.
KAIBO is located in Changjie Economic Development Area, Ninghai County, Ningbo City, Zhejiang Province, China. Which is not far from Shanghai. The traffic is very convenient.
KAIBO is a high-tech enterprise integrating R&D, manufacturing and marketing. It has more than 52000m2 of standard factory buildings, and more than 360 staffs. Specializing in the production of 3/4/5 axis VMC, CNC Engraving Milling Machine. Kaibo Machines are popularly welcomed in different mold industries and scored well across the world. For the recent years, KAIBO manufacture 1500 sets various kinds of machines per year.
KAIBO has more than 26 sales-service offices in various provinces and cities in China and overseas, to provide customers with perfect sales and after-sales service.
As a "CNC Engraving Milling Machine" Standard Setter, KAIBO get the "Famous brand" in Zhejiang Province.
2.Our Company Show
3.Certificates For Our CNC Machine
4,Welcome To Contact Us
