CDS6256B/Cx3000 ce Universal Horizontal Lathe Machine/tornos Horizontal
- Dalian/Tianjing/Shanghai/Qingdao China
 - T/T Credit Card

You May Like
Product Details
| Brand Name | DALIAN | Place of Origin | Liaoning, China | |
| Model Number | CDS6256B/Cx3000 lathe machine | |||
| Condition | New |
Product Description

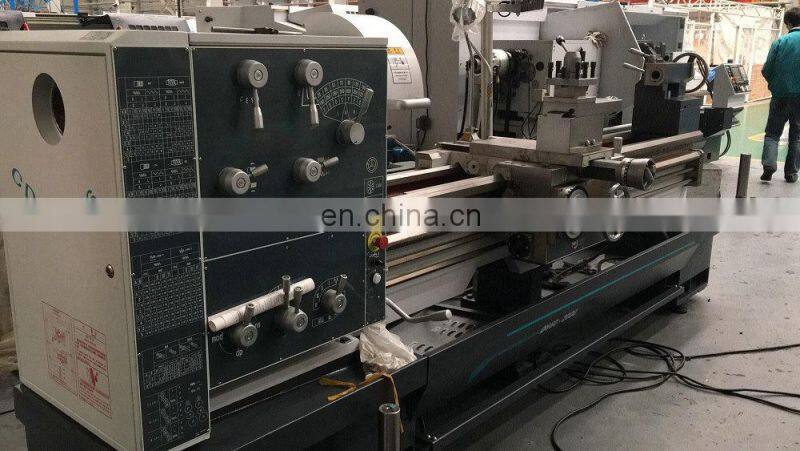

CDS6256B/Cx3000 lathe machine/tornos horizontal
the lathe is going with CE certificate and CQC of China
+C6256 series horizontal lathe/tornos horizontal are capable of various turning applications, mainly used for I.D and O.D. cylindrical face taper surface and other parts that features rotating surface.
+ horizontal lathe/tornos horizontal is suitable for face turning, grooving, parting, drilling and other popular metric, inch, module and diametral pitch threads.
+such horizontal lathe/tornos horizontal is perfectly suitable for small valume production plant and machinery maintenance shops, and can machine a range of materials, including steel, cast iron and non-ferrous metals.
+Gap lathe features a removable gap, which is the main difference between horizontal lathe and gap lathe, and can be adjusted to machine larger or longer workpieces, thus suitable for process disk parts and irregular shaped parts.
+Various combinations of metric, imperial lathes with miscellaneous functions are available upon request.
Specifications of c6256 lathe machine  | Unit  | Parameter  |
Max. swing over bed  | mm  | 560  |
Max. swing over carriage  | mm  | 350  |
Max. swing over gap  | mm  | 780  |
Width of gap  | mm  | 250  |
Max. length of work piece  | mm  | 3000  |
Width of guide way  | mm  | 394  |
Spindle nose  |
  | D8  |
Spindle speed  | rpm  | 26~2000  |
Dia. of spindle bore  | mm  | 82/105  |
Taper of spindle bore  |
  | 90/1:20  |
Longitudinal feed  | mm/rev  | 0.044~1.48  |
Cross feed  | mm/rev  | 0.022~0.74  |
Metric thread  | mm  | 0.35~80 (53 or 77)  |
Inch thread  | tpi  | 7/16~80 (47)  |
Module thread  | mm  | 0.2~40 (45 or 66)  |
Diametrical pitch thread  | DP  | 7/8~160 (42)  |
Max. travel of cross slide  | mm  | 348  |
Travel of top slide  | mm  | 150  |
Travel of tailstock quill  | mm  | 150  |
Diameter of tailstock quill  | mm  | 75  |
Taper bore of tailstock quill  |
  | M5  |
Main motor power  |
  | 10HP(7.5kW) 15HP(11kW.Optional)  |
Wooden box  | mm  | 4850×1150×1900  |
Pallet packing  | mm  | 4780×1120×1800  |
Packing & Weight  | kgs  | N.M. 2550 G.W. 3850  |
S.N  | Name  | Size  | Note  |
1  | 3-jaw chuck  | Φ250 mm  | For CDS6256B  |
2  | Steady rest  | Φ30~Φ200 mm  | For CDS6256B  |
3  | Follow rest  | Φ20~Φ100 mm  | For CDS6256B  |
4  | Catch plate  | 1 Set  |
  |
5  | Foot brake  | 1 set  |
  |
6  | Dead center  | D115, DB1221  |
  |
7  | Center sleeve  | 1 Set  |
  |
8  | Oil gun  | 1 Set  |
  |
9  | Wrench tool  | 1 set  |
  |
10  | Foundation bolt  | 1 set  |
  |
11  | Protection of leadscrew  | 1 set  |
  |
Pls send inquiry to me for optioanl accessories and other further information about such lathe machines.
