Product Details
| Brand Name | Luzhong Machine | Place of Origin | Shandong, China | |
| Model Number | Q1313Q1319 | After-sales Service Provided | Engineers available to service machinery overseas | |
| Condition | New |
Product Description

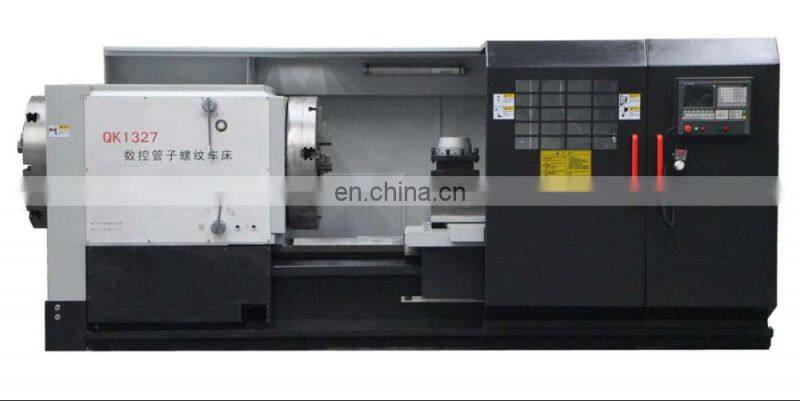

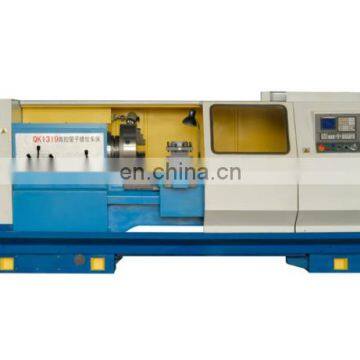

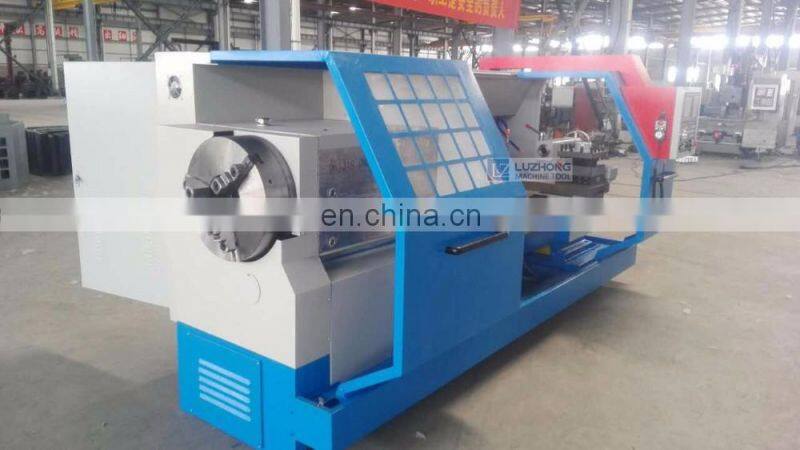

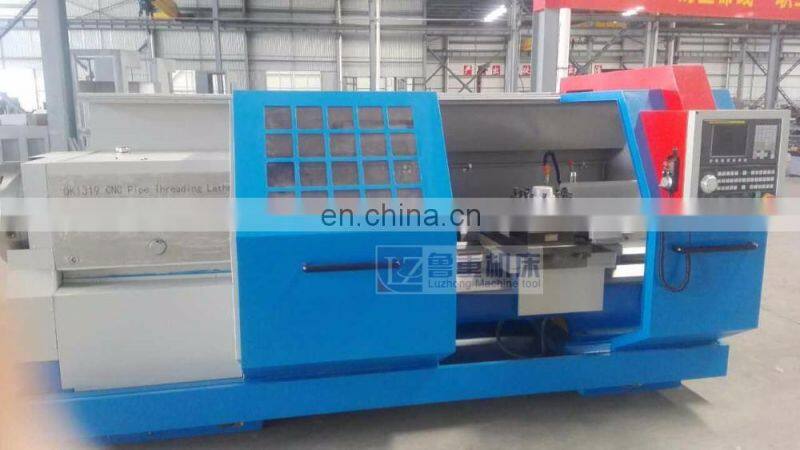

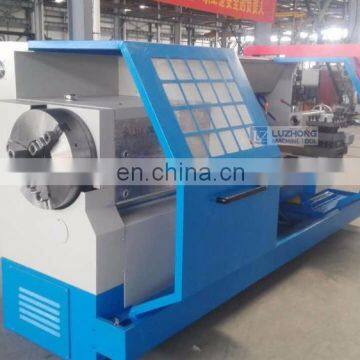

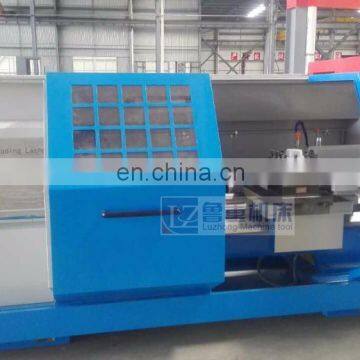

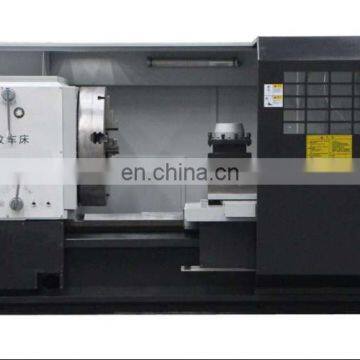

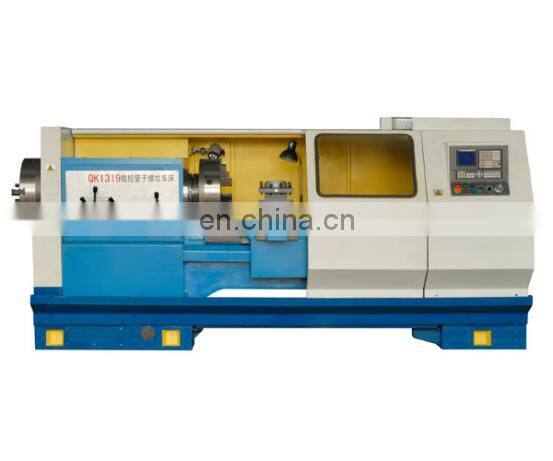

Pipe Nipple Threading Machine Q1313Q1319 Threading Lathe
Q1313 Pipe Threading Lathe Machine Tool, Pipe Machine Tool is our professional pipe threading machinery product, it is mainly used for processing inner and outer pipe thread (including metric thread and inch thread), and can also undertake various turning works such as turning inner and outer cylindrical surface, conical surface and other revolution and end surface as general CNC lathes,this series of machinery is widely used in machinery manufacturing, petroleum exploiting, chemical industry, mining, geological prospecting, city water supplying and draining etc.
ITEMS | UNIT | Q1313 | |
Basic | Max. Dia. swing over bed | mm | Φ630 |
Max. Dia. swing over cross slide | mm | Φ340 | |
Distance between centers | mm | 1500 / 3000 | |
Range of threading capacity | mm | Φ30-126 | |
Width of bed way | mm | 550 | |
Main motor | kw | 11 | |
Coolant pump motor | kw | 0.125 | |
Spindle | Spindle bore | mm | Φ130 |
Spindle speed | r/min | 18 steps: 12-642 | |
Taper bar | Max. taper processing | -- | 1:4 |
Max. travel of taper guide bar | mm | 750 | |
Tool post | Tool post travel | mm | 200 |
Distance between spindle center and tool post | mm | 32.5 | |
Size of tool section | mm | 30x30 | |
Max. rotation angle of tool post | ° | +/-60° | |
Leadscrew | Leadscrew pitch(mm) | inch | 1/2 |
Feed | Z axis feed | mm | 26 grade / 0.07-1.33 |
X axis feed | mm | 22 grade / 0.02-0.45 | |
Carriage | Cross slide travel | mm | 490 |
Carriage rapid traverse speed | mm/min | 4000 | |
Threading | Metric thread | mm | 52 grade / 1-24 |
Inch thread | t.p.i. | 40 grade / 2-28 | |
Tailstock | Tailstock quill diameter | mm | Φ100 |
Tailstock quill taper | mores | m5# | |
Tailstock quill travel | mm | 250 | |
Tailstock cross travel | mm | +/-15 | |
Others | Dimension(L/W/H) | mm | 3657/5157x1449x1393 |
Net weight (kg) | kg | 4260/5110 | |
Gross weight | kg | 5000/6000 | |

Machine Model: Pipe Nipple Threading Machine Q1313Q1319 Threading Lathe
Type of package: Plywood case
Packaging size: 3657X1449X1393mm CM(one set in one case)
N.W./G.W.: 4260KGS KGS
1.Tengzhou Luzhong Machine Tool Co.,Ltd. is a large professional manufacturer.

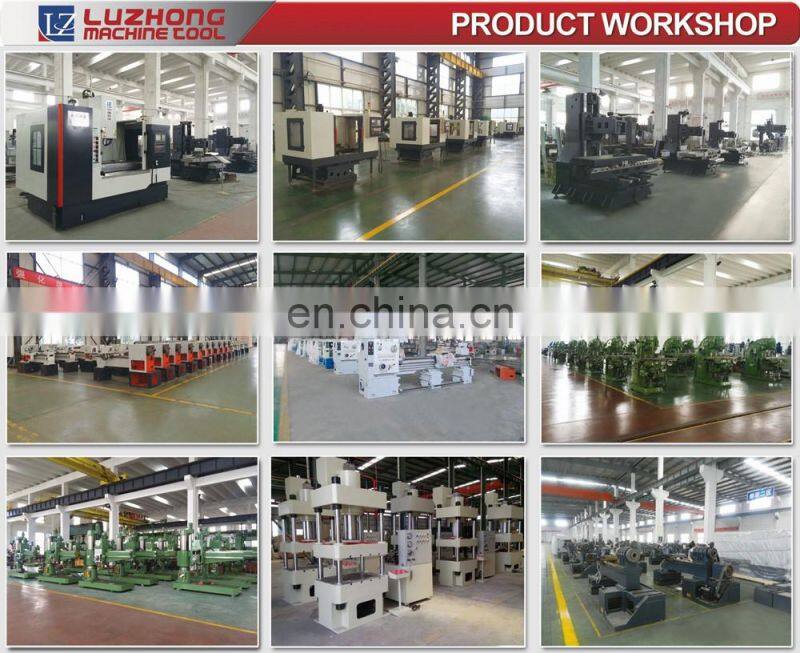

2.Our products includes machining center,CNC lathes,CNC milling machines,Lathe, drilling machines, milling machine etc.
3.Our market covers more than 50 countries and regions.
4.Our products are reliable,we have got many certifications, such as CE,ISO etc.
5.Our products are used in aerospace, military industry, agricultural machinery, oil equipment, marine equipment, marine equipment, automobile manufacturing, equipment, coal mines, power equipment etc
