Home > Products > CNC milling & machining center > Vertical Cnc Engraving and Milling Machine Gsk Cnc Milling Machine Price VMC5030
Vertical Cnc Engraving and Milling Machine Gsk Cnc Milling Machine Price VMC5030
- Qingdao shanghai tianjin lianyungang etc
 - T/T Credit Card

You May Like
-


Low Cost China Vertical Cnc Milling Machine Parts Cnc Milling Machine Specifications VMC7032
 -


Mini Small Hobby Cheap Vertical CNC Milling Machining Center VMC3020L
 -


Small China CNC Metal Milling Machine for Sale
 -


China Low Cost Vertical Cnc Milling Machine Cnc Machining Center VMC5030
 -


VMC3020L Mini Cnc Milling Machine for Small Parts
 -


Cheap Vertical Cnc Machining Center Cnc Milling Machine Manufacturer VMC7032

Product Details
| Brand Name | HIENCE | Place of Origin | Shandong, China | |
| Model Number | VMC5030 | Type | Vertical | |
| Certification | ISO9001 CE | After-sales Service Provided | Overseas service center available | |
| Warranty | 1 Year | Weight | 2100kg | |
| Dimension(L*W*H) | 1900*1800*1900 | Voltage | 380V | |
| Condition | New | Power(W) | 3.7kw |
Product Description

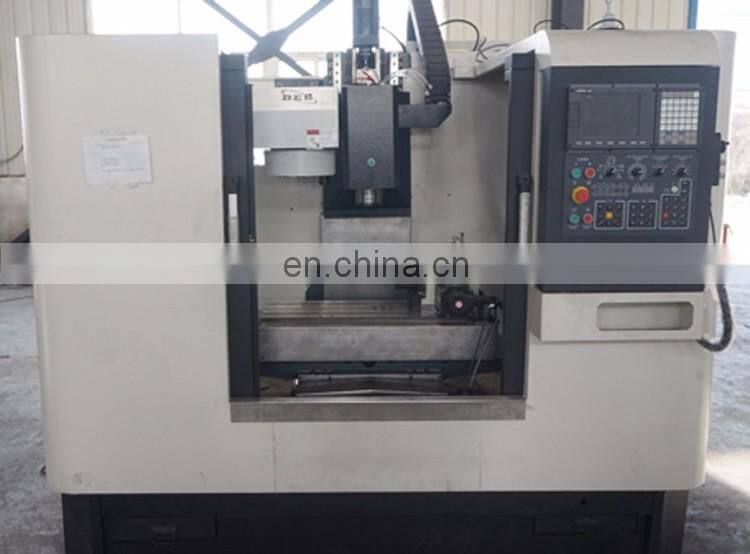

vertical cnc engraving and milling machine gsk VMC5030
Items  | Specification of VMC5030L  | |
Table size(mm)  | 630×280  | |
T type groove (Number-width(mm)–gap(mm))  | 3-14-80  | |
The workbench maximum load(kg)  | 300  | |
Travel of X axis (mm)  | 500  | |
Travel of Y axis(mm)  | 280  | |
Travel of Z axis(mm)  | 400  | |
The spindle end to the work surface(mm)  | 100-500  | |
The center of spindle to guide rail face(mm)  | 395  | |
Taper hole of spindle  | BT30  | |
Highest speed of spindle(Rpm)  | 100-8000  | |
Power (kW)  | 3.7  | |
Rapid feed speed of X/Y/Z axis (m/min.)  | 15/15/12  | |
Fast cutting speed of X/Y/Z axis(m/min)  | 10/10/5  | |
Width of Wire rails X/Y/Z(mm)  | 20  | |
Accuracy
  | positional accuracy (mm)  | 0.015  |
  | repeated positioning accuracy (mm)  | 0.075  |
ATC  | Capacity  | 6 tools  |
  | Max tool size  | 120  |
  | Max tool weight  | 6kg  |
Weight(kg)  | 2100  | |
Dimension(mm)  | 1900×1800×1900  | |
Voltage  | 3 phase 380V  | |
