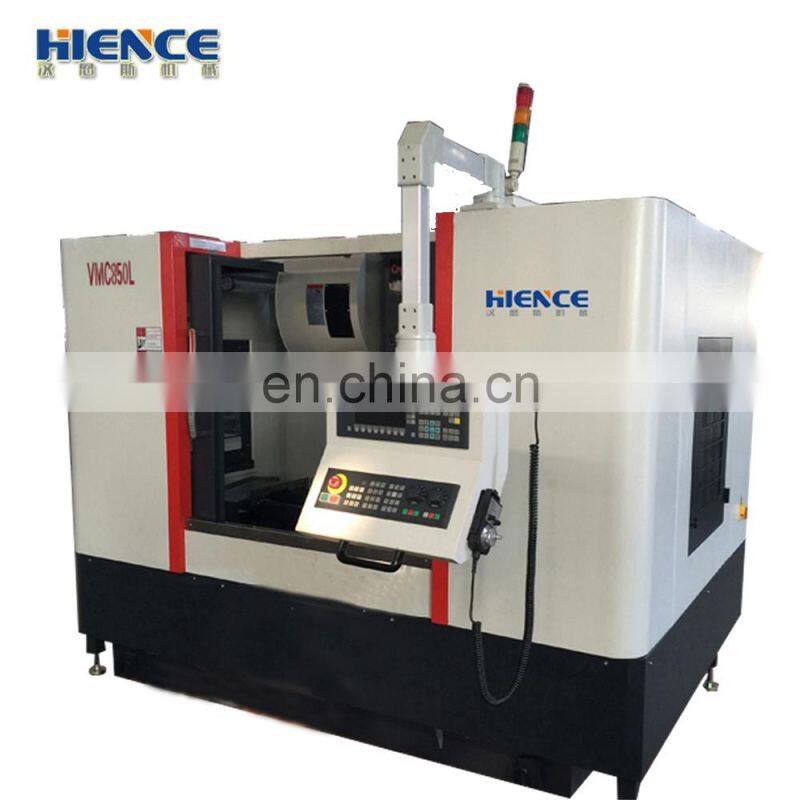

Large Size Cnc Milling Machine 5 Axis Cnc Metal Milling Machine Price VMC850L
- Qingdao shanghai tianjin lianyungang etc
 - T/T Credit Card

You May Like
-


8 Tool ATC Small CNC Milling Machine Machining Center VMC5030
 -


Mini Hobby Cnc Milling Machine Metal Machining Center Machine VMC3020
 -


Fanuc High Precision Vertical Cnc Machining Center VMC5030
 -


Hot Selling Metal Working Cnc Milling Machining Center VMC7032
 -


CNC Milling Automatic Tool Changer Machining Center VMC7040
 -


New Iron Cnc Milling Vertical Machining Center for Sale VMC1060

Product Details
| Brand Name | HIENCE | Place of Origin | Shandong, China | |
| Model Number | VMC850 | Type | Vertical | |
| Certification | ISO9001 CE | After-sales Service Provided | Overseas service center available | |
| Warranty | 1 Year | Weight | 5100KG | |
| Dimension(L*W*H) | 2700*2250*2700 | Voltage | 380V | |
| Condition | New | Power(W) | 11KW |
Product Description
large size cnc milling machine 5 axis cnc metal milling machine price VMC850L
Items  | Details  | Unit  | VMC850L  |
 Table  | Size  | mm  | 1000×500  |
Travel of 3 axis(X/Y/Z)  | mm  | 800/500/500  | |
Max, table load  | kg  | 1000  | |
T-slot  | Size  | mm  | 3-18×150  |


 Spindle  | Spindle taper  |
  | BT40  |
Distance from Spindle center to Colum guide  | mm  | 550  | |
Distance of spindle head to table  | mm  | 130-630  | |
Max speed  | rpm  | 8000  | |
Motor power  | KW  | 7.5/11  | |
 Accuracy  | Positioning accuracy(X/Y/Z)  | mm  | ±0.08/±0.006/±0.006  |
Repeatability(X/Y/Z)  | mm  | ±0.004/±0.004/±0.004  | |

 Tools  | Tool changing time  | s  | 1.8  |
Tool storage capacity  | Pcs  | 16  | |
Max, tool weight  | Kg  | 8  | |
Max. Tool length  | mm  | 350  | |
Max.tool diameter  | mm  | Ø 100(adjacent knife) or ø150(adjacent no knife)  | |
Axis motor  | Power of X/Y/Z  | Kw  | 2.0/2.0/2.0  |

 Feeding speed  | Rapid feed of X/Y/Z  | m/min  | 16  |
Cutting feed of X/Y/Z  | m/min  | 8  | |
Weight  | Kg  | 5100  | |
Dimension  | mm  | 2700*2250*2700  | |
Power  | V  | 3 phase 380V,  | |
  |
  |
  |
  |
