CNC Milling Automatic Tool Changer Machining Center VMC7040
- Qingdao Ningbo Shanghai Tianjin
- T/T Credit Card
You May Like
-
New Iron Cnc Milling Vertical Machining Center for Sale VMC1060
-
Fanuc System Controller High Precision Cnc Machining Center VMC7032
-
Mini Vertical 3 Axis Cnc Milling Machine for Hobby M400
-
Small VMC Machine Vertical Cnc Machining Center Price VMC420
-
CNC Servo Motor Single Spindle Cnc Machining Center GSK VMC550
-
CNC Milling Machine Parts for Cnc Machining Center VMC850L
Product Details
| Warranty | One year |
Product Description
CNC milling automatic tool changer machining center VMC7040
A.Standard Configuration and specification
KND, You can choose GSK KND; SYNTEC LNC system from Taiwan,
12 tool ATC
Three axis box way type, optional linear guide rail.
Taiwan BT40 spindle unit
Precision ball screw
Coolant system, Self lubrication system. Lighting system
Items | Details | Unit | VMC7040L |
Table | Size | mm | 900×400 |
Travel of 3 axis | mm | 700/400/550 | |
Max, table load | kg | 400 | |
T-slot | Size | mm | 3-18 |
Center distance | mm | 140 | |
Spindle | Spindle taper |
| BT40 |
Spindle to guide | mm | 460 | |
Max speed | rpm | 8000 | |
Motor power | KW | 5.5/7.5 | |
Spindle drive |
| Belt transmission | |
Accuracy | Positioning accuracy | mm | 0.015 |
Repeatability | mm | 0.0075 | |
ATC system | Tools number |
| 12 |
Axis motor | Power of X/Y/Z | Kw | 1.6/1.6/1.6 |
Feeding speed | Rapid feed of X/Y/Z | mm/min | 18000 |
Cutting feed of X/Y/Z | mm/min | 8000 | |
Parameters | Air pressure | Kgf/cm² | 6 |
Weight | Kg | 4500 | |
Dimension | mm | 2400*2000*2550 | |
Power |
| 3 phase 380V, | |
|
|
|

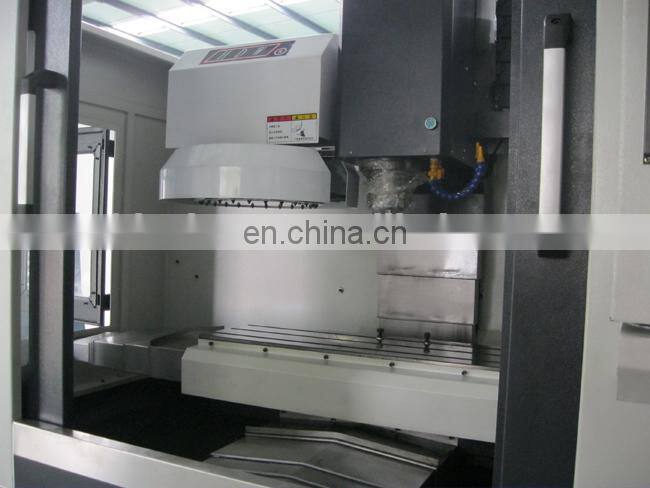

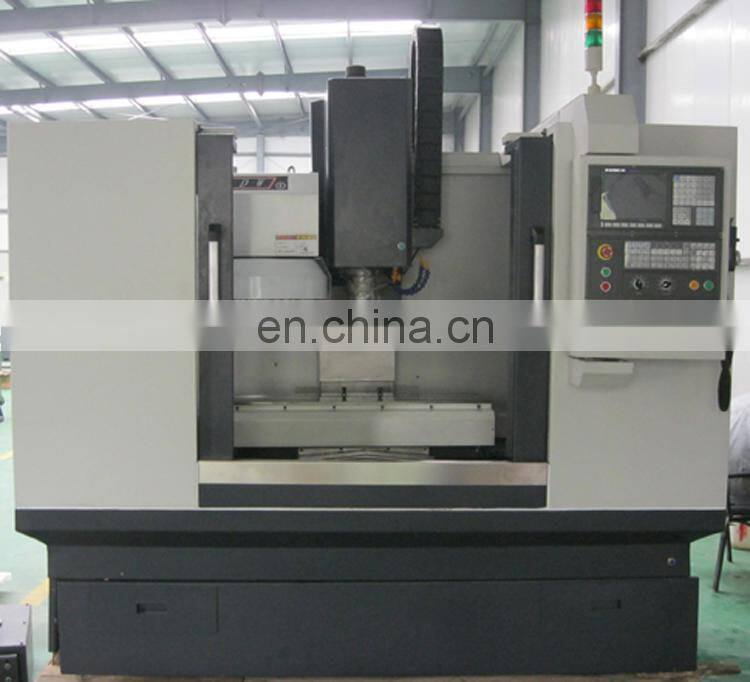

B.Pictures of VMC7040
