Mini Hobby Cnc Milling Machine Metal Machining Center Machine VMC3020

FOB Price

US$ 9,000 - 12,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	HIENCE	Place of Origin	Shandong, China
Model Number	VMC3020	Type	Vertical
Certification	ISO CE SGS	After-sales Service Provided	Engineers available to service machinery overseas
Warranty	1 Year	Weight	700KG
Dimension(LWH)	122010601850mm	Voltage	380V
Condition	New	Power(W)	0.37KW

Mini hobby cnc milling machine metal machinig center machine VMC3020

Product Description

A.Standard Configuration and specification

KND SYNTEC system.

Box way type guide rail, Lighting system, Coolant system.

Standard Accessories

Items		Specification of VMC3020
Table size(mm)		550×200
T type groove (Number-width(mm)–gap(mm))		3-12
The workbench maximum load(kg)		150
Travel of X axis (mm)		300
Travel of Y axis(mm)		180
Travel of Z axis(mm)		280
The spindle nose to the work surface(mm)		90-370
The center of spindle to guide rail face(mm)		240
Taper hole of spindle		BT30
Highest speed of spindle(Rpm)		12000
Power (kW)		0.37
Rapid feed rate of X/Y/Z (m/min.)		15/15/15m/min
Fast cutting speed(mm/min)		1-4000
Width of Wire rails X/Y/Z(mm)		20
Accuracy	positional accuracy (mm)	0.01
	repeated positioning accuracy (mm)	0.075
Weight(kg)		700
Dimension(mm)		122010601850

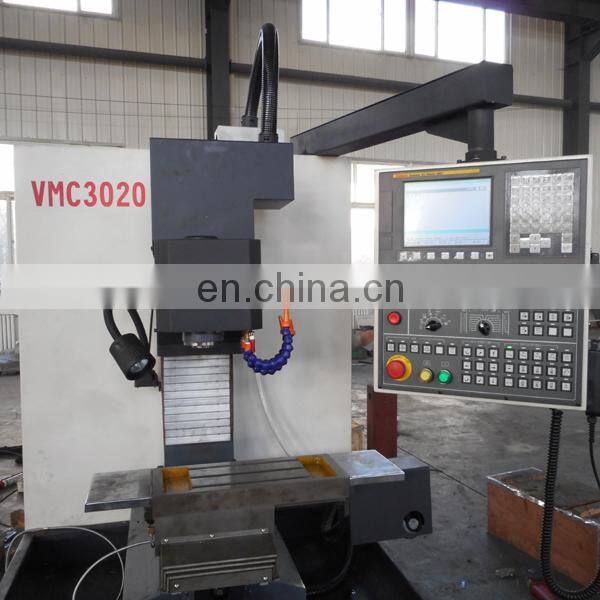

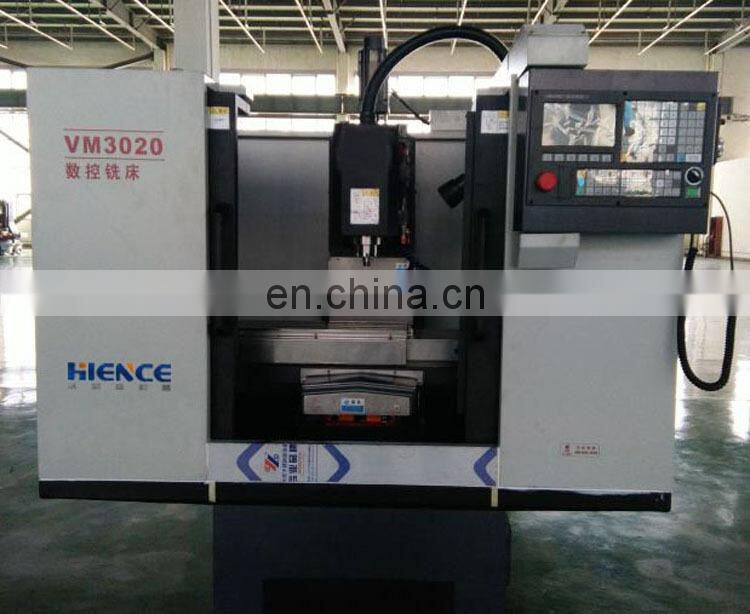

B.Pictures of VMC3020
