Spinlde bore 225mm cnc pipe threading lathe machine price CQK220
- 20 Set / Sets per Month
- Qingdao Ningbo Shanghai Tianjin
- T/T Credit Card
You May Like
-
H-S150D-SM table chair legs cnc wood work lathe machine
-
Automatic china new wood cutting lathe cnc milling machine for wood price H-T150D-TM
-
High precision cnc wood carvinging machine wood cnc lathe machine price H-D150D-DM
-
Automatic wood engrave cnc wood rotary cutting lathe H-D150D-DM
-
wood turning CNC wood lathe canada H-D150D-DM
-
Small CNC automatic wood lathe machine for furniture H-D150D-DM
Product Details
| Brand Name | HISCIENCE | Place of Origin | Shandong, China | |
| Model Number | CQK220 | After-sales Service Provided | No overseas service provided | |
| Condition | New |
Product Description
Oil country lathe cnc pipe threading lathe CQK220
A. Feature
1, We set up TRB (tapered rolling bearings) on this lathe to increase the rigidity of the spindle.
2, The spindle bore is very large and set up double chucks both front and back and you can choose electric chucks as you like.
3, The surface of the slide rail of the bed is treated by the super audio quench, which can be endurable and wear-resisting. The slide rail f saddle is treated by wear-resisting layer coated, to avoid the crawling.
4, There are two types of speed change: Manual and step less.
5, Set up self lubrication system, and easy to maintain.
B.Main specification
Item | Lathe specifications | Specifications |
Technical specifications | Maximum diameter of lathe bed (mm) | φ630 |
Maximum tactical diameter of sliding plate (mm) | φ370 | |
Maximum work-piece length (mm) | 1000 | |
Main drive | Form | Main motor servo stepless |
Rank of spindle speed | No grade | |
Range of spindle speed(r/min) | 50-620rpm | |
Hole diameter of spindle (mm) | Φ225 | |
The maximum diameter of the tube | Φ220mm | |
Power of main motor (KW) | 11KW(servo) | |
Feeding system | Maximum route of knife rest (mm) | X:330 Z:1150 |
Speed of quick-travel (mm/min) | X:4000 Z:5000 | |
Resetting accuracy | X:0.012 Z:0.016 | |
Precision of work piece | IT6-IT7 | |
Surface roughness | Ra1.6 | |
Tailstock | Sleeve diameter of tailstock (mm) | Φ100 |
Sleeve trip of tailstock (mm) | 250 | |
Cone hole taper tailstock’s sleeve | MT5 | |
Knife rest | Standard configuration | Four-station vertical electrical knife rest |
Alternative configuration | Horizontal Six-station electrical knife rest | |
Restting accuracy (mm) | 0.01 | |
Length of section of knife handle (mm) | 30×30 | |
Mchine size weight | Length*width*height | 3600×1750×1910 |
Net weight (Kg) | 5500Kg |

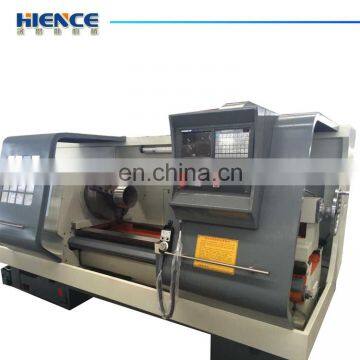

C.Pictures of CQK220
1.Warranty is one year, we would offer the parts
(quality problem) free of charge during this period
2.GSK CNC system, servo driven,warranty is 3 years
Siemens system (Have customer service service point in the world)
3.24 hours technical suport e-mail and
4.User manual and detailed video
