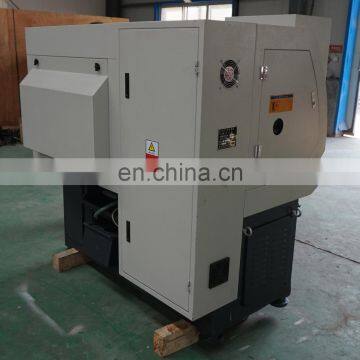

High Speed Cnc Turning Lathe CK6125A

FOB Price

US$ 5,000 - 8,000 / Set

1 Set(Min. Order)

Port Qingdao tianji shanghai lianyungang
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	HIENCE	Place of Origin	Shandong, China
Model Number	CK6125A	After-sales Service Provided	Overseas service center available
Condition	New

Product Description

configuration and specification

1.System:GSK,spindle unit, servo main motor and drive
2.hydraulic chuck, 4-station electric tool post
3.Manual tailstock, Semi-Rugged
4.Cooling system；Lighten system； Automatic lubrication system

ITEMS	Specifications
Max. swim over bed	Φ250mm
Max. swim over carriage	Φ100mm
Max. length of work piece	220 for chuck /320mm for air collets
Range of spindle speed	150-2500rpm
Spindle bore	Φ48mm
Through hole dia. of drawing pipe with pneumatique collets	39mm
Tool holder	6 station tool
Tool bar section	20x20 16X16mm
X/Z axis torque	4N.M/4N.M
X/Z axis fast feeding speed	8/10 M/MIN
Tailstock sleeve dia.	52mm
Tailstock sleeve travel	90
Taper of spindle bore	MT4
Motor power	4KW
Packing size(length × width × height)	178011201600mm
Net weight	1000kg

Main features

1.Single spindle
2. May fix with hydraulic chuck system.
3. Integrated automatic lubrication system.
4. High precision CNC lathe with good performance-price radio.
5. Electronic hand wheel equipped easy operation.
6. The carriage adopts plastic paste processing wear small, high precision, long life.
7. Feed of X Z shaft is driven by ball screw with servo-motor.
8. Rotary various work piece surface automatically turning, precision machining.

Optional brands of CNC systems	GSK,KND,Mitsubishi，SIEMENS、FANUC
Optional types of the tool post	horizontal Six-station, horizontal eight-station
Optional types of the workpiece clamping	hydraulic chuck、pneumatic chuck、spring chuck
Optional types of the tailstock	Hydraulic tailstock、pneumatic tailstock
Optional patterns of feeding	Automatic feeding（Customized programs alone)
