Home > Products > CNC lathe machine > CK6140A Chinese Metal Lathe
CK6140A Chinese Metal Lathe
- Qingdao shanghai tianjin lianyungang etc
- T/T Credit Card
You May Like
Product Details
| Brand Name | HIENCE | Place of Origin | Shandong, China | |
| Model Number | Ck6140A | After-sales Service Provided | Overseas service center available | |
| Condition | New |
Product Description

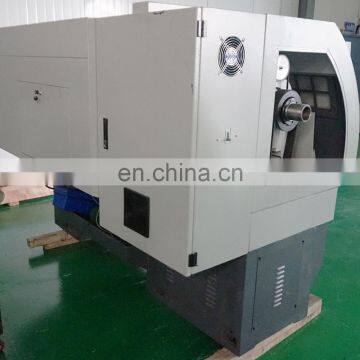

CK6140A Taiwan Fanuc Flat Bed CNC Lathe Machine
A, Standard Configuration and Specification
1.System:GSK928TD-L,servo motor and drive
2.3-jaw chuck, 4-station electric tool post.
3.Manual tailstock, Semi-Rugged
4.Cooling system;Lighten system; Automatic lubrication system;
Items | Specifications |
Max. swim over bed | Φ400mm |
Max.swim over carriage | Φ245mm |
Max.length of work piece) | 750mm |
Size of three-jaw chuck | Φ250mm |
Range of spindle speed | 150~500 320~1600rpm (2 gears) |
Spindle bore | Φ52mm |
Taper of spindle bore | MT5 |
stations of tool carrier | 4/6/8/ |
Max.size of tool post | 25×25mm |
Min.setting unit of motor | (Z) axis 0.001mm (X) axis 0.001mm |
Moving speed of post | (Z) axis 8 m/min (X) axis 6m/min |
Taper of tailstock quill | MT4 |
Max. range of tailstock quill | 120mm |
Motor power | 5.5KW |
Packing size (mm) | 2050mm×1400 mm×1650mm |
Net weight | 2100kg |
B. Main features
1. Spindle brake way by electric brake
2. Feed of X.Z shaft are driven by all screw with servo-motor or stepper motor
3. Imported or homemade CNC system
4. Rotary various work piece surface automatically turning, precision machining
5. the body of the lathe has good rigidity; the guide is treated by super audio quenching with high hardness, grinding the surface with high accuracy.
6. The carriage adopts plastic paste processing. High precision with long life.
7. Electronic hand wheel equipped easy operation.
8. after the lead rail of the machine is treated by super-audio quenching and finish grinding and plastic coating, it is of good rigidity and stability.
9. Three gears controlled by a handle, stepless speed regulation, with lower noise and high- standard machining accuracy, is an environmental- protective machine.
10. The spindle is the high- rotate speed and sophisticated bearing, with smooth surface. The extra size diameter of the spindle bore isφ82mm while the diameter of chuck is φ250mm.
C.Pictures of CK6140B
Select configure
1.CNC system: Siemens808D,(warranty service)
2.Hydraulic chuck , pneumatic chuck,
3.Hydraulic tailstock, pneumatic tailstock,
4.Automatic feeder,
5.Horizontal six-station turret.
A: You can choose FOB,CIF, DDU or other terms. You can book ship or I can book ship for you.
A: You can make the inquiry online on Alibaba, or send email to us. It is better if you can tell what is your detailed request information. We will reply to you within 2 hours on work days, and within 24 hours on holiday.
A: You can choose machine on our website accodring to your request. Or You can let our seller know what is your request specifcation or what is your parts, so let our seller recommend suitable machine to you. We have do trade machine years, and export machine to over 100 countries. We have CE, ISO, SGS and other quality certificate.
A: We can make the deal on Alibaba online platform, you can pay by T/T or Credit card. You can also pay to my company business bank account. You can also choose L/C or other way.
A: If the machine you will order is standard machine, we can ready the machine within 15days. If special machine, please confirm with our seller. The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter. You can place order according to delivery time and ship time.
A: warranty is one year, but we will offer lifetime service for machine.
