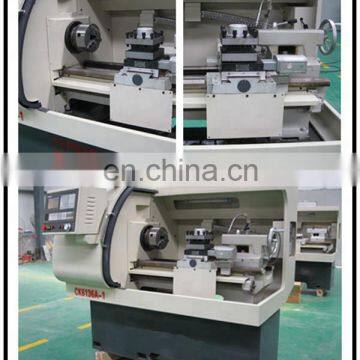

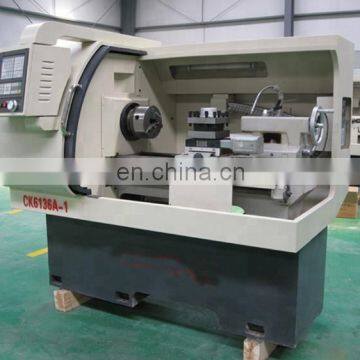

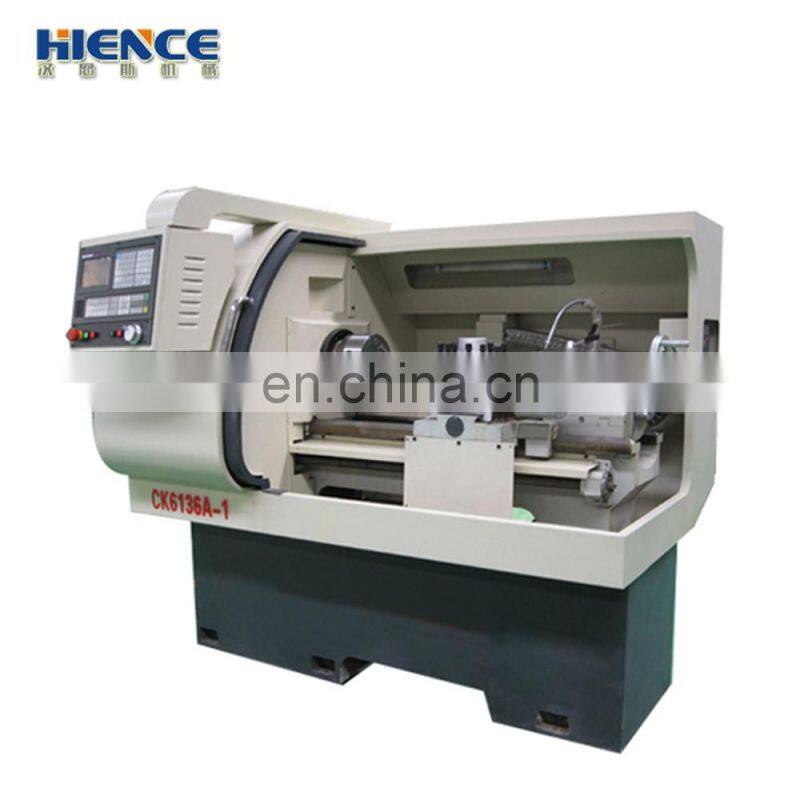

High precision cnc metal turning machine CK6136A-1

FOB Price

US$ 7,000 - 10,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	HIENCE	Place of Origin	Shandong, China
Model Number	CK6136A-1	After-sales Service Provided	Engineers available to service machinery overseas
Condition	New

1.System:GSK,servo motor and drive

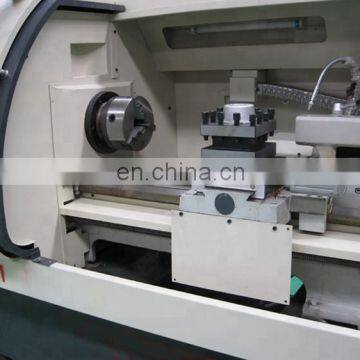

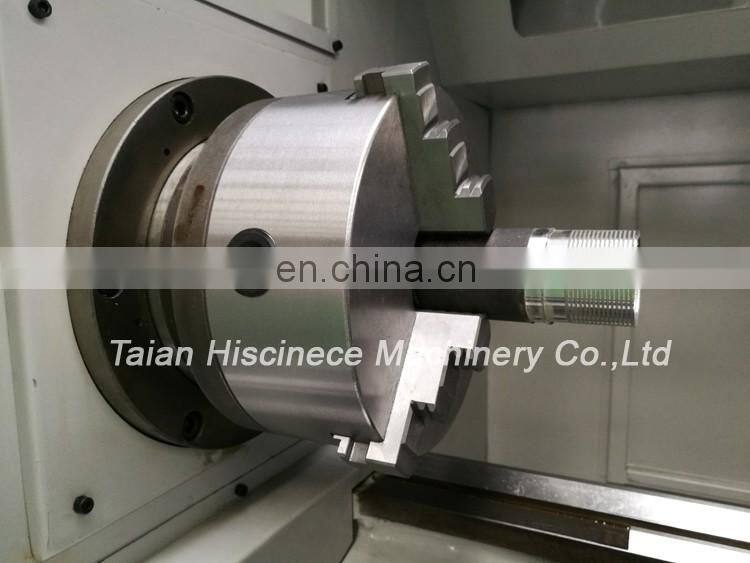

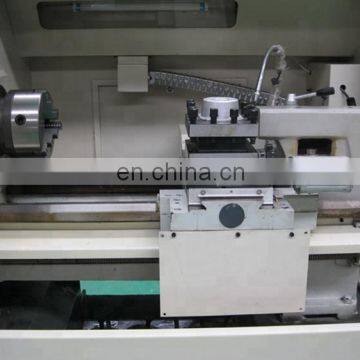

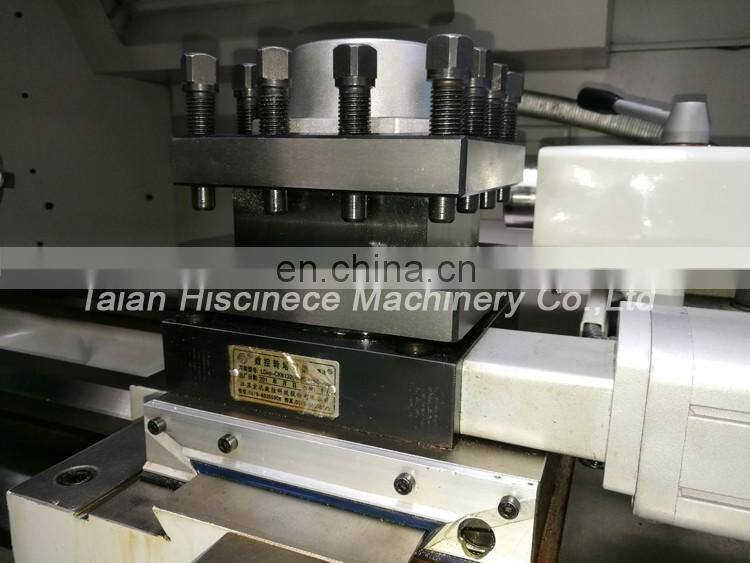

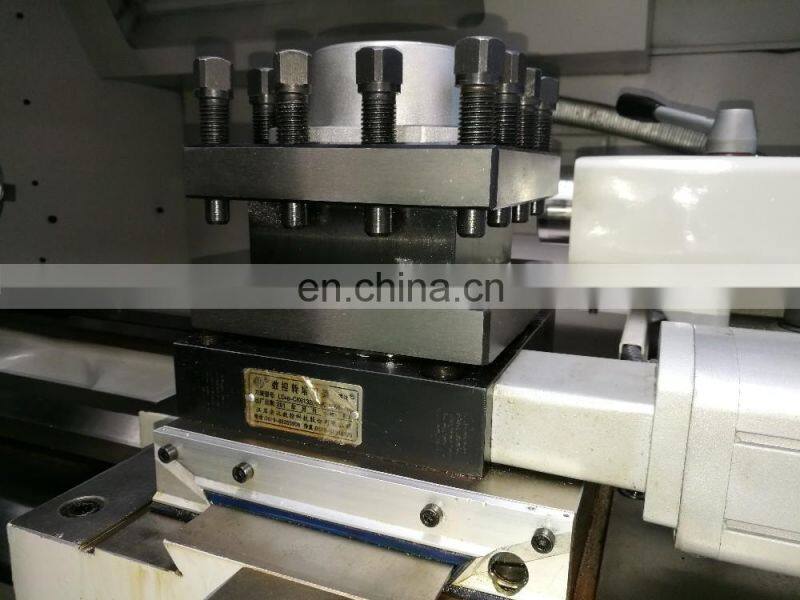

2.8 inch Manual 3-jaw chuck, 4-station electric tool post.

3.Manual tailstock, Semi-Rugged
4.Cooling system；Lighten system； Automatic lubrication system；

ITEMS	Specifications
Max. swim over bed	Φ360mm
Max. swim over carriage	Φ190mm
Max. length of work piece	500mm
Maximum workpiece weight	100kg
Size of three-jaw chuck	200mm
Range of spindle speed	150-2500rpm(servo mainmotor)
Spindle bore	Φ48mm
Taper of spindle bore	MT6
Tool holder	4 station
Tool bar section	20x20
X/Z axis distance travel	240mm /750mm
X/Z axis torque	4/6N.M
Min surface roughness	0.6
X/Z axis fast feeding speed	6/8 M/MIN

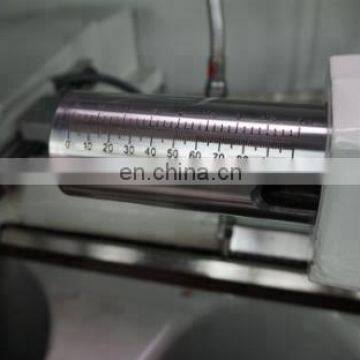

Tailstock sleeve travel	120mm
Tailstock taper	MT4
X/z axis position accuracy	0.01/0.015mm
X/z axis repeatability	0.012/0.013mm
Motor power	5.5KW
Packing size(length ×width × height)	185014001700mm
Net weight	1500kg

Optional brands of CNC systems	SIEMENS、FANUC
Optional types of the tool post	Horizontal 6-station, horizontal 8-station
Optional types of the workpiece clamping	hydraulic chuck、pneumatic chuck、spring chuck
Optional types of the tailstock	Hydraulic tailstock、pneumatic tailstock
Optional patterns of feeding	Automatic Bar feeding（Customized programs alone）

Packing & Delivery

Packaging
Size	185014001700mm
Weight	1500KG
Packaging Details	The normal package is wooden box(Size: LWH). the wooden box will be fumigated.

Our Company

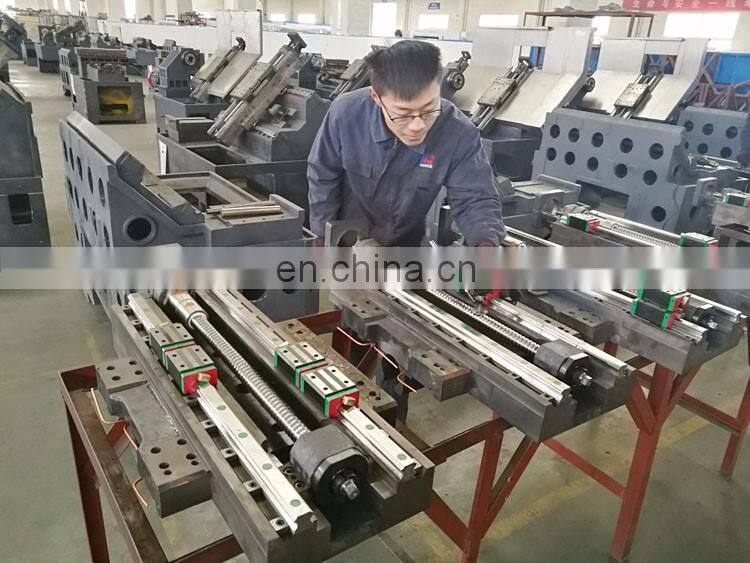

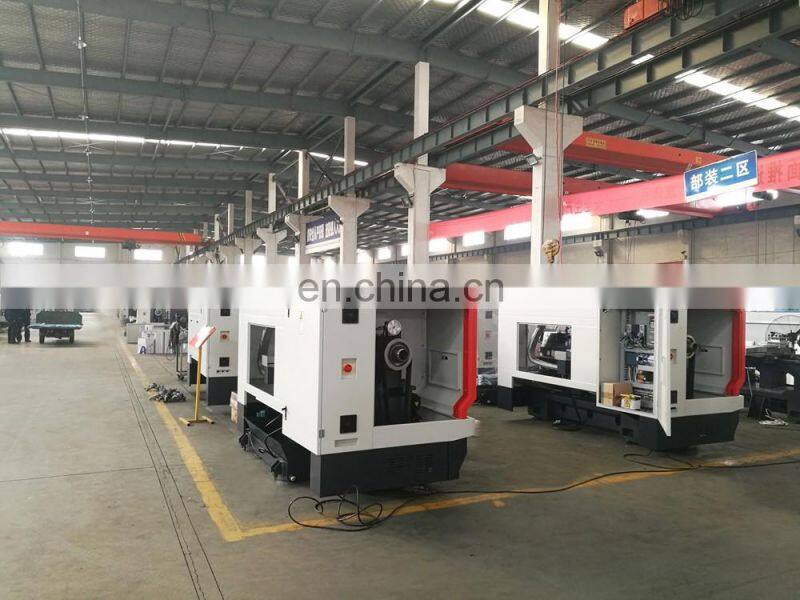

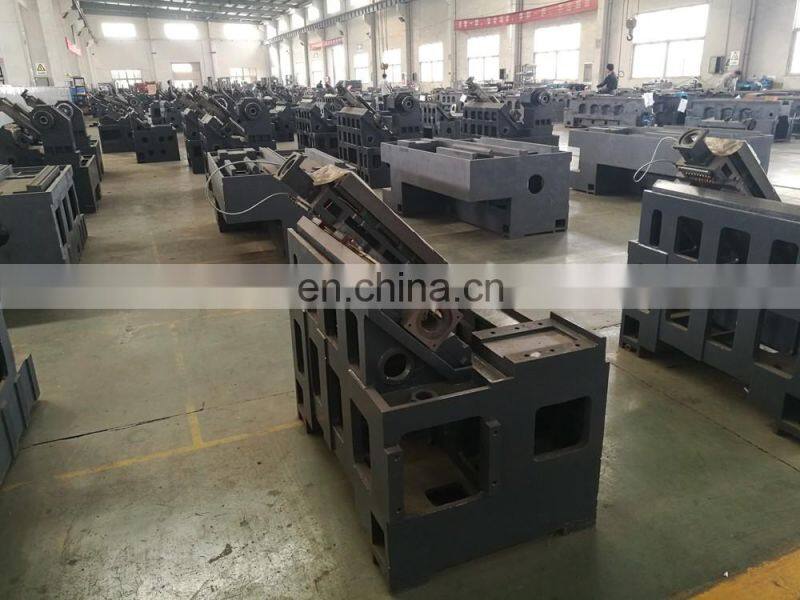

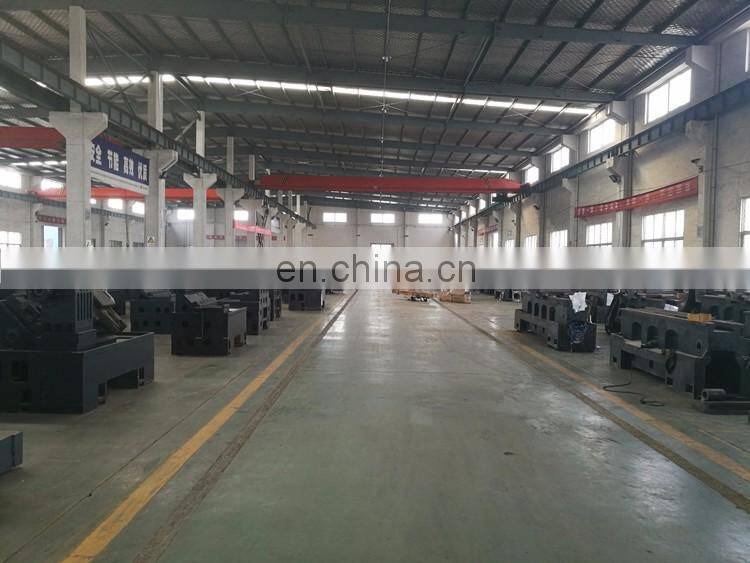

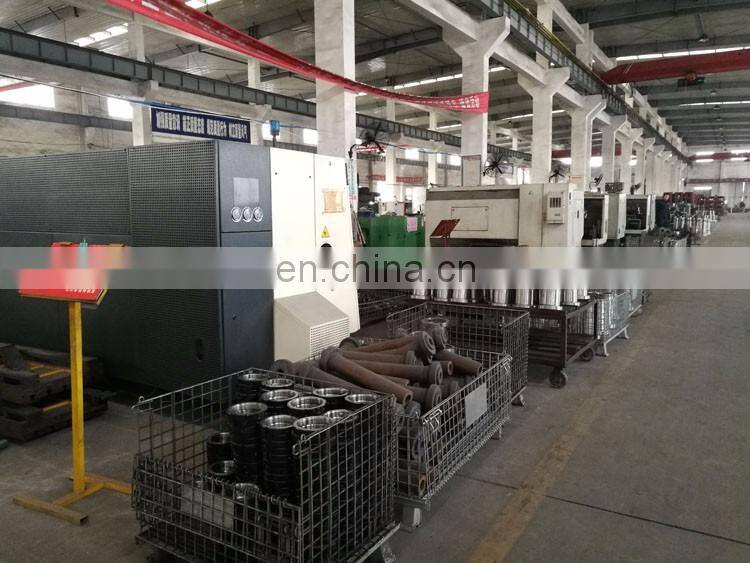

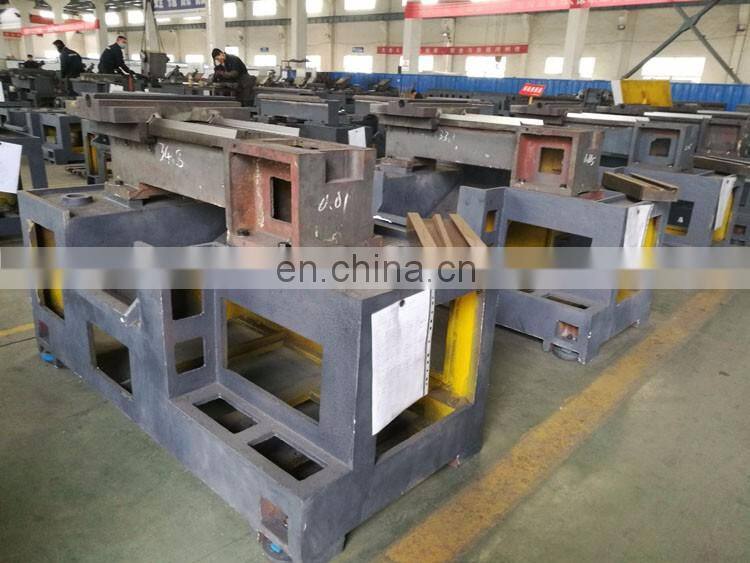

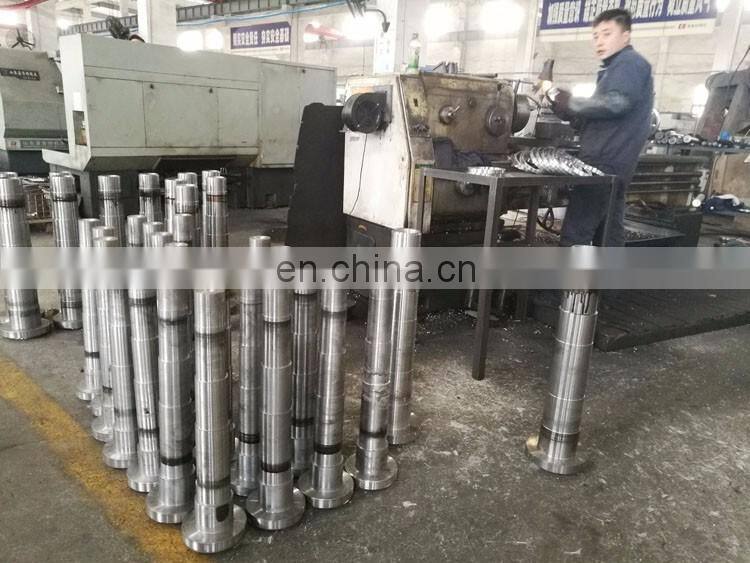

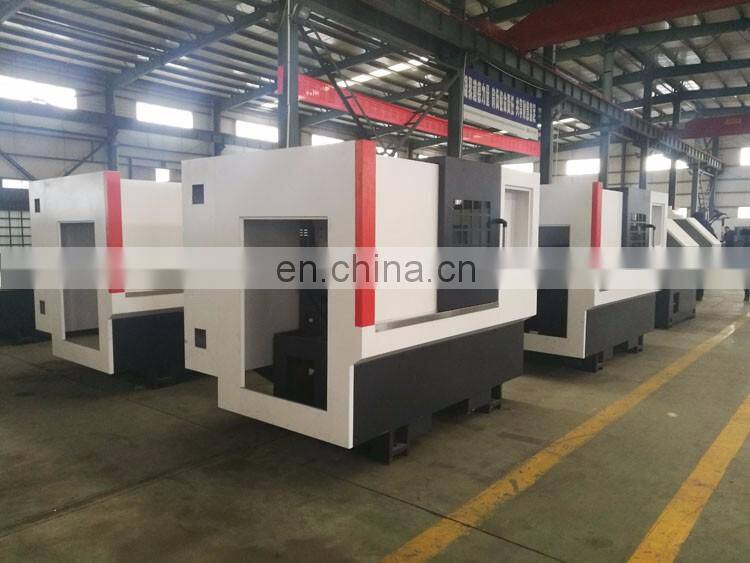

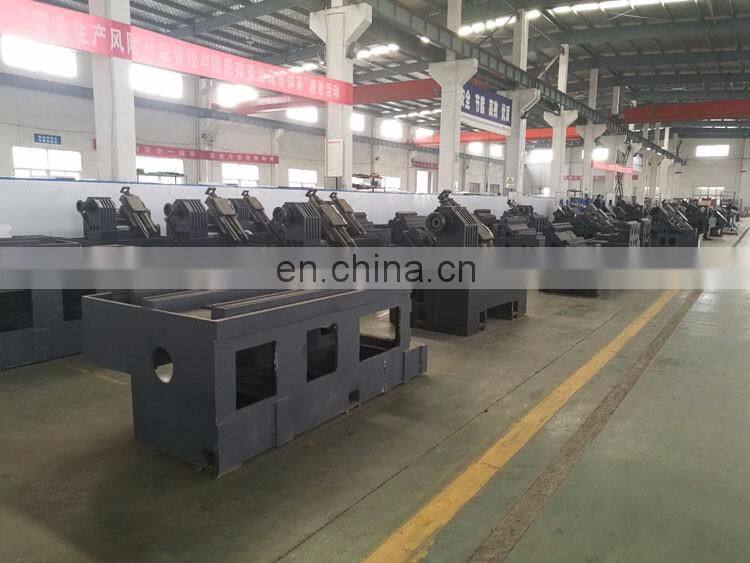

Factory
