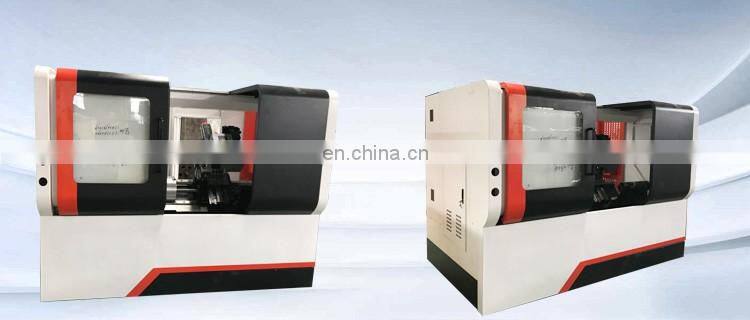

Computerized Metal Lathe for Sale CK40L CNC Lathe Machine Suppliers

FOB Price

US$ 23,000 - 24,900

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	HanKui		Place of Origin	Shandong, China
After-sales Service Provided	Engineers available to service machinery overseas		Condition	New

Product Description

Standard configuration:

1) 5.5kw servo motor, max. spindle speed 4000rpm, spindle taper A2-5, spindle hole Φ56mm;

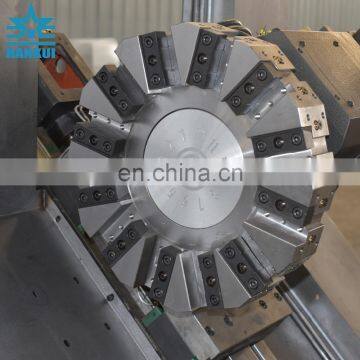

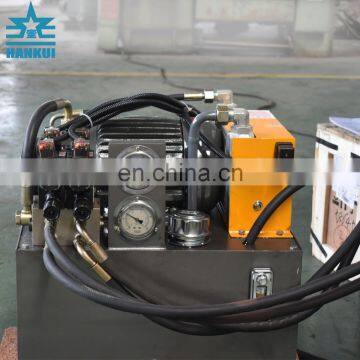

2) 8 station hydraulic tool turret hollow 8" hydraulic chuck, with tail stock;

Optional configuration:

1) 8 station servo VDI(live tool) turret;

2) tool head,if more tool heads needed;

3) Servo 8 station tool turret;

4) 6000r spindle;

5) Chain Chip Conveyor;

6)12 station hydraulic tool turret

Technical parameter

ITEM		CK-32L	CK-36L	CK-40L	CK-50L	CK-63L	CK-80L
Processing range	Max.swing over bed	320	360	400	500	630	800
	Max.swing over slide	160	160	220	320	500	640
	Max. processing length	350	350	450	550	890	890
	Max. cutting dia.(disc type)	200	254	360	420	630	800
	Max. bar dia.	40	45	51	65	75	90
spindle	Spindle speed	4000	4000	3500	2500	2250	1500
	Spindle nose ISO form	A2-5	A2-5	A2-6	A2-6	A2-8	A2-11
	Thru-hole dia.	56	56	66	76	86	112
	Chunk dia.	160(6")	160(6")	200(8")	200(8")	320(12")	380(15")
	Motor power	3.7(servo)	3.7(servo)	7.5(servo)	11(servo)	18.5(servo)	22(servo)
Body structure	Body structure	30°integrated	30°integrated	45°integrated	45°integrated	30°integrated	30°integrated
	X axis travel	200	200	210	260	410	410
	Zaxis travel	350	350	450	550	860	860
	X/Z axis rapid speed		24/24	24/24	24/24	18/18	18/18
Tool holder	type		63-8T	80-8T	100-8T	160-8T	160-8T
Tool holder	Tool size	20*20	20*20	20*20	25*25	25*25	25*25
tailstock	Tailstock sleeve dia.		52	52	75	150	150
	Tailstock sleeve travel		60	60	100	150	150
	Tailstock sleeve taper		MT4	MT4	MT5	MT5	MT5
precision	Processing precision	IT6
	Repositioning precision	X:0.006,Z:0.008					X:0.006,Z:0.01
	roughness	Ra.≤0.8					Ra.≤1.25
dimension	N.W (KG)	1500	1700	2700	3500	5500	5600
dimension	Dimension (M)	1.81.21.7	1.81.61.6	2.61.81.6	3.11.81.8	3.82.22.2

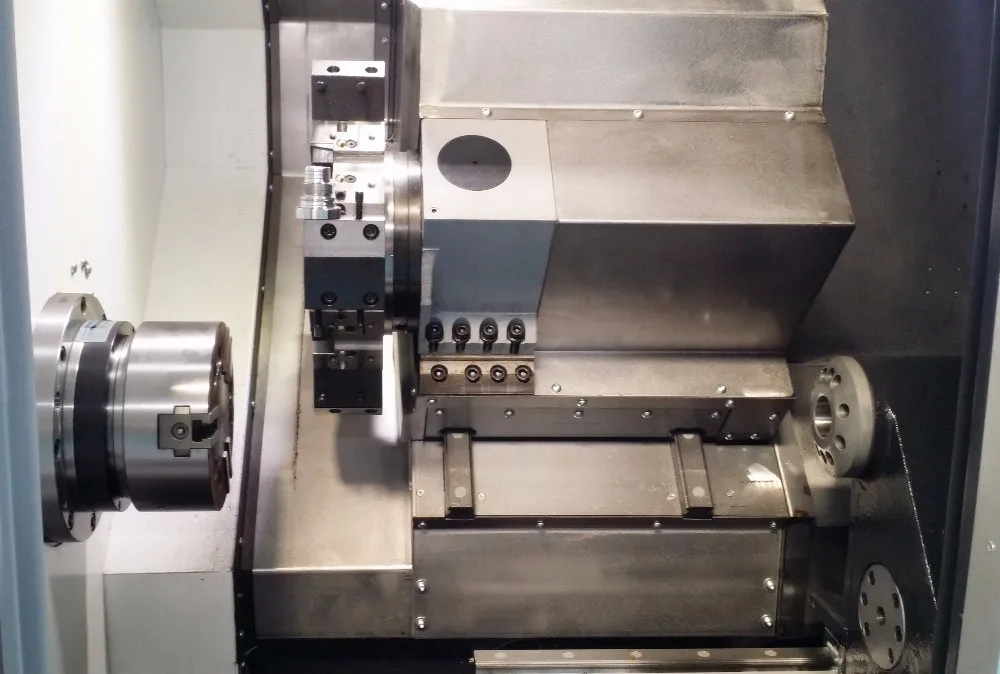

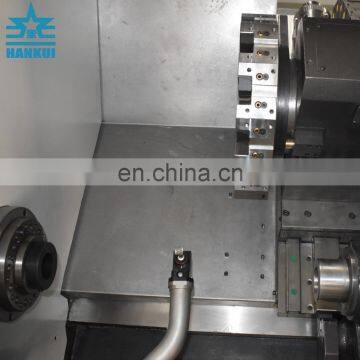

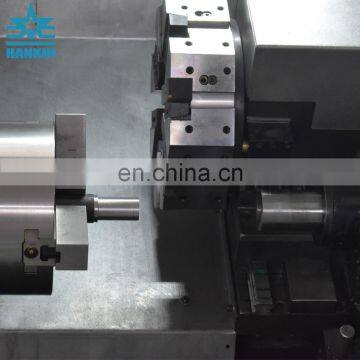

Detailed Image

The travel of X axis	210 mm
The travel of Z axis	550mm(the maximum processing length is 450 mm)
Max. Swing Dia. of the whole lathe	400 mm
The maximum diameter of the slip plate	220 mm

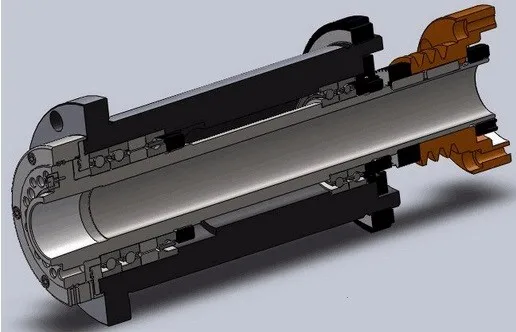

ITEM	Parameter
The taper specifications	A2-5 (MT4)
The range of the spindle speed	The top speed is 6000 RPM (optional); The standard:4000 RPM
The Spindle motor	5.5KW

ITEM	Parameter
The fast moving rate of X axis	10000mm
The fast moving speed of Z axis	80000mm
The feed rate of cutting	1-4000mm/min

CNC system

The system has a perfect and reliable interlocking, safety protection and fault diagnosis alarm functions etc. It equipped with RS232 communication interface for computer controlling and storage to realize DNC machining (There will be differences between different systems).
Option:SIEMENS808D-1/808D-2/MitsubishiE70
/Fanuc 0i-TF 5/Syntec 21TM

Packing & Delivery

Our Company

Jinan Hankui international trade co., ltd,

which is the subsidiary corporation of Shandong Hunk precision machinery Co., Ltd., is a CNC machine tools company, located in the beautiful capital Jinan city, integrated with manufacturing, processing and sales. It was set up by the former Jinan Machine tools factory employees. It has a subsidiary corporation Jinan HANKUI International Trade Co., Ltd. The plant area is about 10,000 square meters. We have a number of R&D persons and technicians who have more than 20 years experience of machine tool design and assembly.

The main products are horizontal / vertical/ gantry machining center, flat / slant bed CNC tuning lathe, CNC vertical turning lathe etc.

With superior equipment, advanced technology, detection devices, the imported parts from Taiwan, Japan, Germany etc., we can manufacture the high quality machine tools. And we also take over the metal products and spare parts machining in good quality.

Now our products have a large market share and have a high popularity in domestic. Sales and services network have been established in many provinces and cities. Our products have been sold to America, South East Asia, Russia and Middle East countries with high reputation.

We have passed the ISO9001:2008 international quality management system authentication. "Honest and trust, Customer ahead, pursuit of excellent", we devoted to provide high quality performance CNC products and metal products to you. Welcome to visit our factory.
