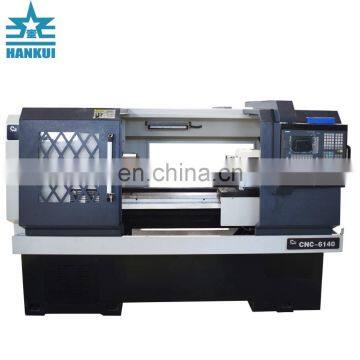

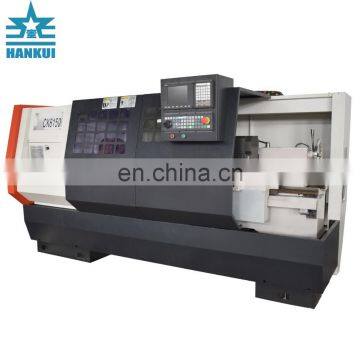

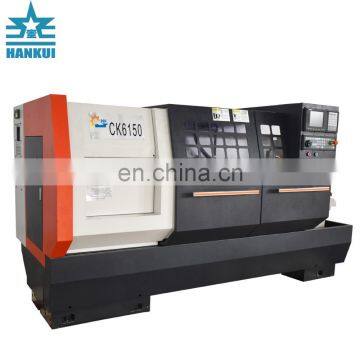

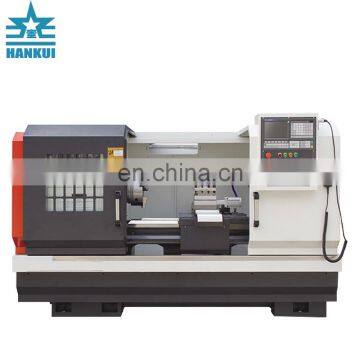

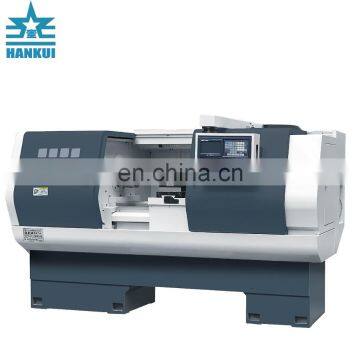

Chines Mini Metal Lathe Machinery CK6136 High Precision Alloy Wheel Repair Big Powerof Small Bench Metal CNC Machine

1.The major basic parts such as the lathe bed, lathe feet, the middle supporting plate, the spindle box are all made of HT250 cast iron. The lathe feet are the structure of box type, The compact and reasonable symmetric structure ensures high rigidity and bending vibration performance of basic parts, which guarantees the rigidity and precision of Z axis effectively when it is cutting. The castings adopt the type of resin sand molding and have been processed by the aging treatment, The guide rail surface of lathe bed adopts superaudio quenching and the penetration depth can reach to 2 mm, which provides the guarantee for the stability of lathe for a long time using.

2.The middle supporting plate together with the whole lathe bed, the middle slip plate and the sliding surface of supporting plate are all adopt the line rail technology of Taiwan, with fast speed, eliminating intermittent creep, high rigidity, low friction, and low noise characteristics. With automatic pressure lubrication, it improves the machine accuracy.

3.The feed of X, Z direction adopts the inner loop preloading large-lead ballscrew with double nut so it is of high feed speed. The drive motor connect with screw straightly via elastic coupling. The feed servo motor passes power to the high precision ball screw directly. It is no gap, and it ensures the accuracy of positioning and synchronization for the lathe.

4.The design of spindle box is high gear and low speed rotation, which greatly increased the torque in the process of chipping. It uses spindle unit which is high speed, high precision, and high rigidity. The bearing capacity of axial and radial is very strong, the top speed can reach to 500 RPM.

5.The two guide rail of X, Z direction and screw are all adopt protective device, which ensures the cleanness of lead screw and guide rail. It also ensures the accuracy of drive and motion and machine service life;

6.The outer protective device of the whole lathe is of the full protective structure. It is easy to operate, safe and reliable, beautiful and generous.

7.It uses a reliable device which is automatic and centralized to lubricate. It can lubricate automatically and intermittently to all lubrication points of CNC lathe. And it can settle lubricating time according to operating conditions.

8.The operating system of the lathe adopts the principle of human body engineering so the operation is very convenient

Jinan Hankui international trade co., ltd,

which is the subsidiary corporation of Shandong Hunk precision machinery Co., Ltd., is a CNC machine tools company, located in the beautiful capital Jinan city, integrated with manufacturing, processing and sales. It was set up by the former Jinan Machine tools factory employees. It has a subsidiary corporation Jinan HANKUI International Trade Co., Ltd. The plant area is about 10,000 square meters. We have a number of R&D persons and technicians who have more than 20 years experience of machine tool design and assembly.

 With superior equipment, advanced technology, detection devices, the imported parts from Taiwan, Japan, Germany etc., we can manufacture the high quality machine tools. And we also take over the metal products and spare parts machining in good quality.
