Ck32L China CNC Desktop Lathe Machine Mini

FOB Price

US$ 8,900 - 21,900 / Set

1 Set(Min. Order)

Port Qingdao port for Ck32L China CNC Desktop Lathe Machine Mini
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	HANKUI	Place of Origin	Shandong, China
Model Number	Ck32L	After-sales Service Provided	Engineers available to service machinery overseas
Condition	New

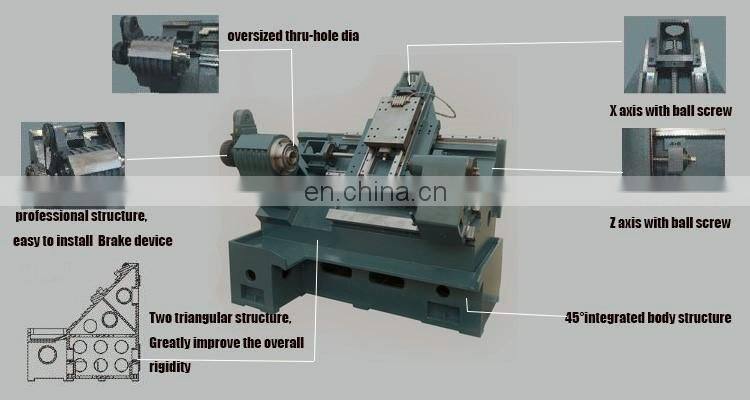

Product Description

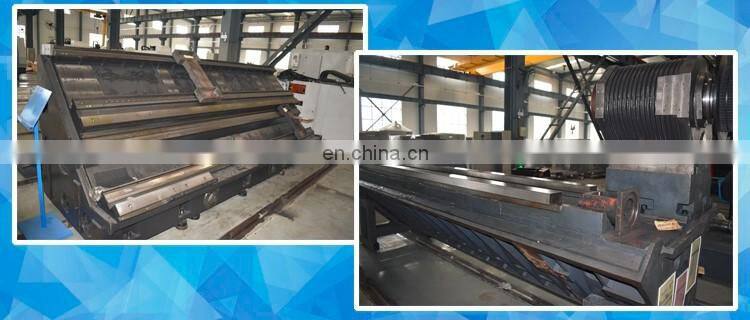

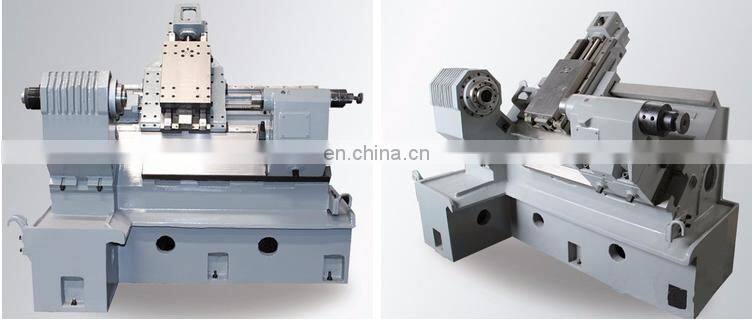

1、The major basic parts such as the lathe bed, lathe feet, the middle supporting plate, the spindle box are all made of HT300 cast iron.

2、The middle supporting plate together with the whole lathe bed, the middle slip plate and the sliding surface of supporting plate are all adopt the line rail technology of Taiwan.

3、The feed of X, Z direction adopts the inner loop preloading large-lead ball screw with double nut so it is of high feed speed.

4、The two guide rail of X, Z direction and screw are all adopt protective device, which ensures the cleanness of lead screw and guide rail.

4、The spindle box adopts spindle unit which is of independent type and sleeve structure and it is equipped with high intensity special bearing for spindle.

Technical parameter

ITEM		CK-32L	CK-36L	CK-40L	CK-50L	CK-63L	CK-80L
Processing range	Max.swing over bed	320	360	400	500	660	800
	Max.swing over slide	160	160	220	320	500	640
	Max. processing length	350	350	450	550	890	890
	Max. cutting dia.(disc type)	200	254	360	420	630	800
	Max. bar dia.	40	55	55	80	80	90
spindle	Spindle speed	4000	4000	3500	2500	2200	1500
	Spindle nose ISO form	A2-5	A2-5	A2-5	A2-8	A2-8	A2-11
	Thru-hole dia.	41	58	58	86	86	112
	Chunk dia.	160（6“）	200（8“）	200（8“）	250（10“）	320（12“）	380（15“）
	Motor power	3.7(servo)	3.7/5.5 (servo)		5.5/7.5/11(servo)	11/15 (servo)	18~22 (servo)
Body structure	Body structure	45°integrated	30°integrated	30°integrated	30°integrated	30°integrated	30°integrated
	X axis travel	200	200	210	260	410	410
	Zaxis travel	350	350	450	550	860	860
	X/Z axis rapid speed	24/24	24/24	24/24	24/24	18/18	18/18
Tool holder	type		63-8T	80-8T	100-8T	160-8T	160-8T
Tool holder	Tool size	20*20	20*20	20*20	25*25	25*25	25*25
tailstock	Tailstock sleeve dia.	/	52	52	75	150	150
	Tailstock sleeve travel	/	60	60	100	150	150
	Tailstock sleeve taper	/	MT4	MT4	MT5	MT5	MT5
precision	Processing precision	IT6
	Repositioning precision	X:0.006, Z:0.008					X:0.006，Z:0.01
	roughness	Ra.≤0.8					Ra.≤1.25
dimension	N.W (KG)	1500	1700	2700	3500	5500	5600
dimension	Dimension (M)	1.61.41.6	1.81.61.6	2.81.61.6	3.11.81.8	3.82.22.2	3.82.22.2

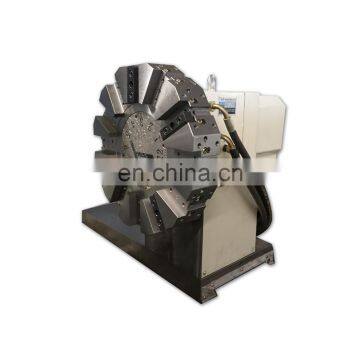

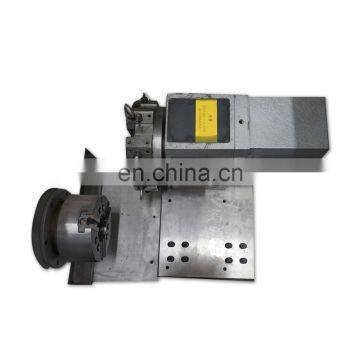

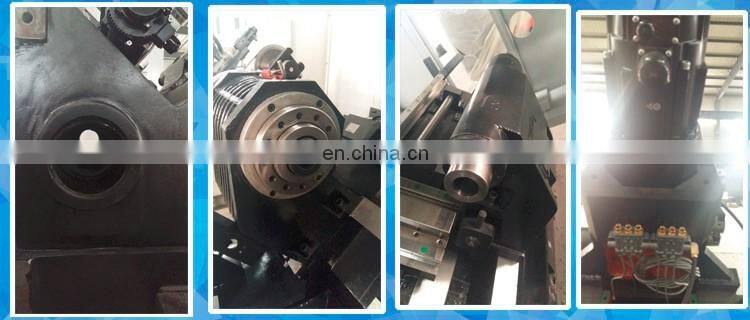

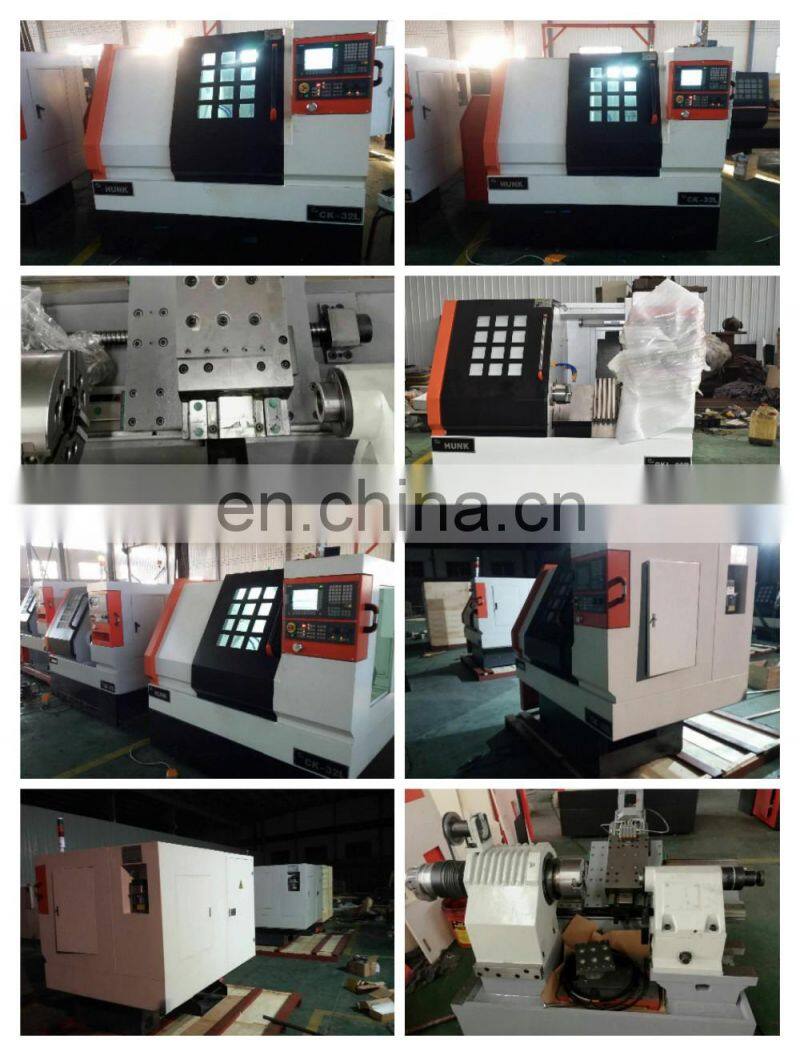

Detailed Images

Our Certificates

We have passed the ISO9001:2008 international quality management system authentication. “Honest and trust, Customer ahead, pursuit of excellent”, we devoted to provide high quality performance CNC products and metal products to you. Welcome to visit our factory.

Our Company

Jinan Hankui international trade co., ltd, which is the subsidiary corporation of Shandong Hunk precision machinery Co., Ltd., is a CNC machine tools company, located in the beautiful capital Jinan city, integrated with manufacturing, processing and sales. It was set up by the former Jinan Machine tools factory employees. It has a subsidiary corporation Jinan HANKUI International Trade Co., Ltd.

Now our products have a large market share and have a high popularity in domestic. Sales and services network have been established in many provinces and cities. Our products have been sold to America, South East Asia, Russia and Middle East countries with high reputation.“Honest and trust, Customer ahead, pursuit of excellent”, we devoted to provide high quality performance CNC products and metal products to you. Welcome to visit our factory.

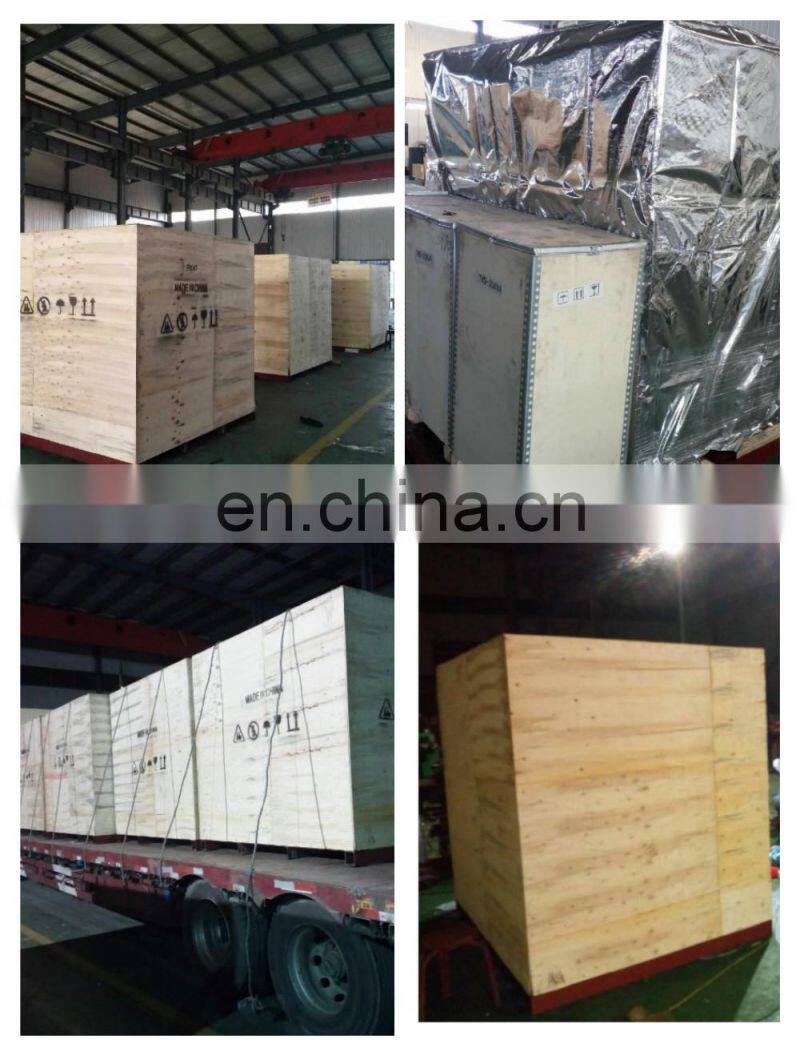

Packing & Delivery

FAQ

Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available, We need your machines running in order to keep your business running.

Q: Do you have a warranty on your machines?
A: One year warranty excluding electrical components.

Q: What sales terms do you have?
A:T/T, L/C,West Union.

Q: Do you have instruction manuals?
A: We provide you with instruction manuals, electricity layouts, civil requirements, and machine drawings or Video Support,

Q: What is your delivery time?
A: Depending on the type of machine, duration of 10 days to 45 days from date of order.
